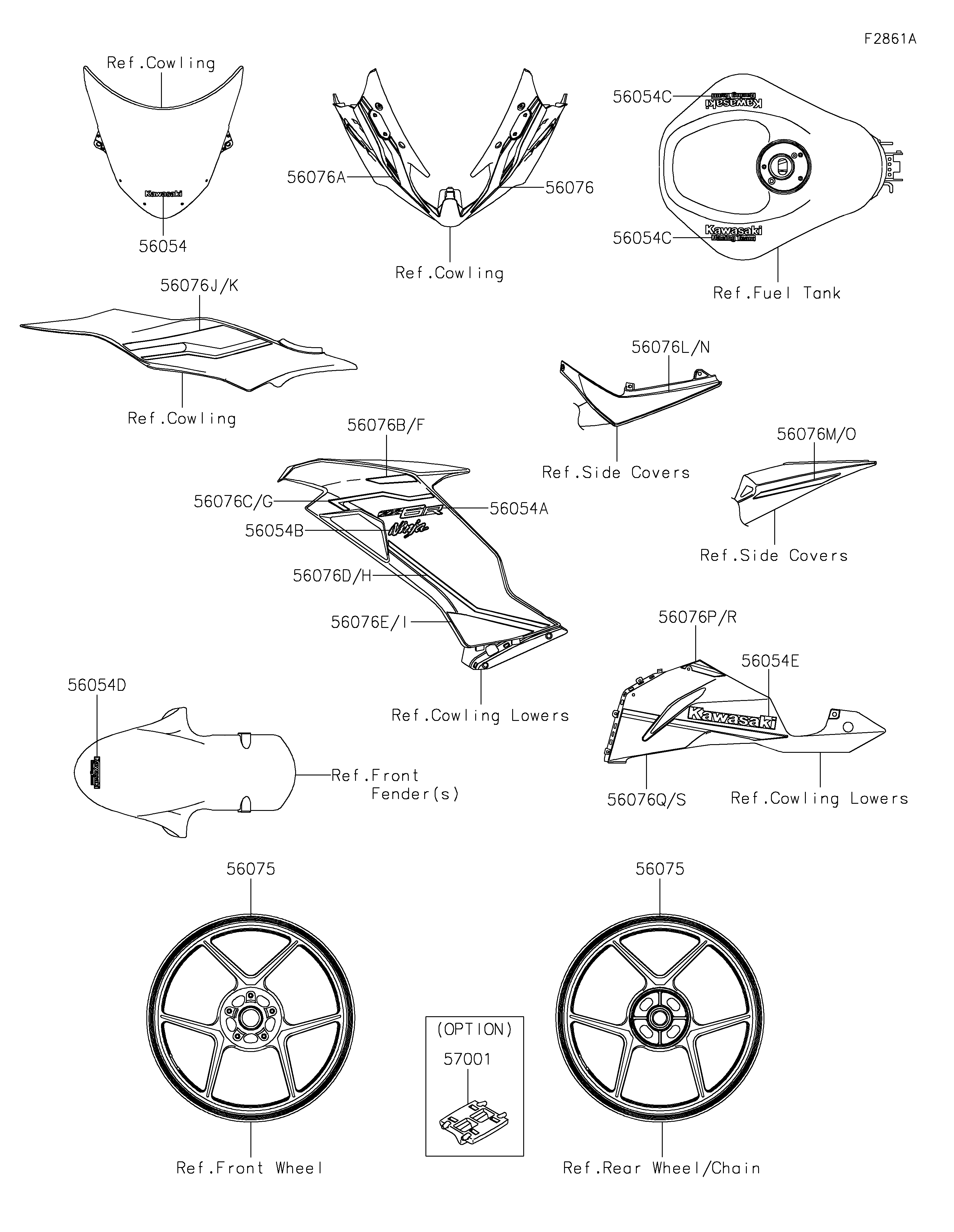

2023 Ninja ZX-6R KRT Edition - Decals(Green)(HNFAN/HNFAL/HPFAN/HPFAL)
56054
56054A
56054B
56054C
56054C
56054D
56054E
56075
56075
56076
56076A
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076I
56076J
56076K
56076L
56076M
56076N
56076O
56076P
56076Q
56076R
56076S
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,WINDSHIELD,KAWASAKI | 56054 | 56054-2509 | 1 | ||
| MARK,SIDE COWL.,ZX-6R | 56054A | 56054-2818 | 2 | ||
| MARK,SIDE COWL.,NINJA | 56054B | 56054-2819 | 2 | ||
| MARK,FUEL TANK,KRT | 56054C | 56054-2820 | 2 | ||
| MARK,FR FENDER,KRT | 56054D | 56054-2821 | 1 | ||
| MARK,LWR COWL.,KAWASAKI | 56054E | 56054-2822 | 2 | ||
| PATTERN,WHEEL,GRN/BLK,6X1079 | 56075 | 56075-1693 | 4 | ||
| PATTERN,UPP COWL.,LH | 56076 | 56076-1744 | 1 | ||
| PATTERN,UPP COWL.,RH | 56076A | 56076-1745 | 1 | ||
| PATTERN,SIDE COWL.,LH,UPP,UPP | 56076B | 56076-1746 | 1 | ||
| PATTERN,SIDE COWL.,LH,UPP,LWR | 56076C | 56076-1747 | 1 | ||
| PATTERN,SIDE COWL.,LH,LWR,UPP | 56076D | 56076-1748 | 1 | ||
| PATTERN,SIDE COWL.,LH,LWR,LWR | 56076E | 56076-1749 | 1 | ||
| PATTERN,SIDE COWL.,RH,UPP,UPP | 56076F | 56076-1750 | 1 | ||
| PATTERN,SIDE COWL.,RH,UPP,LWR | 56076G | 56076-1751 | 1 | ||
| PATTERN,SIDE COWL.,RH,LWR,UPP | 56076H | 56076-1752 | 1 | ||
| PATTERN,SIDE COWL.,RH,LWR,LWR | 56076I | 56076-1753 | 1 | ||
| PATTERN,SIDE COVER,LH | 56076J | 56076-1754 | 1 | ||
| PATTERN,SIDE COVER,RH | 56076K | 56076-1755 | 1 | ||
| PATTERN,TAIL COVER,LH,UPP | 56076L | 56076-1756 | 1 | ||
| PATTERN,TAIL COVER,LH,LWR | 56076M | 56076-1757 | 1 | ||
| PATTERN,TAIL COVER,RH,UPP | 56076N | 56076-1758 | 1 | ||
| PATTERN,TAIL COVER,RH,LWR | 56076O | 56076-1759 | 1 | ||
| PATTERN,LWR COWL.,LH,UPP | 56076P | 56076-1760 | 1 | ||
| PATTERN,LWR COWL.,LH,LWR | 56076Q | 56076-1761 | 1 | ||
| PATTERN,LWR COWL.,RH,UPP | 56076R | 56076-1762 | 1 | ||
| PATTERN,LWR COWL.,RH,LWR | 56076S | 56076-1763 | 1 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
