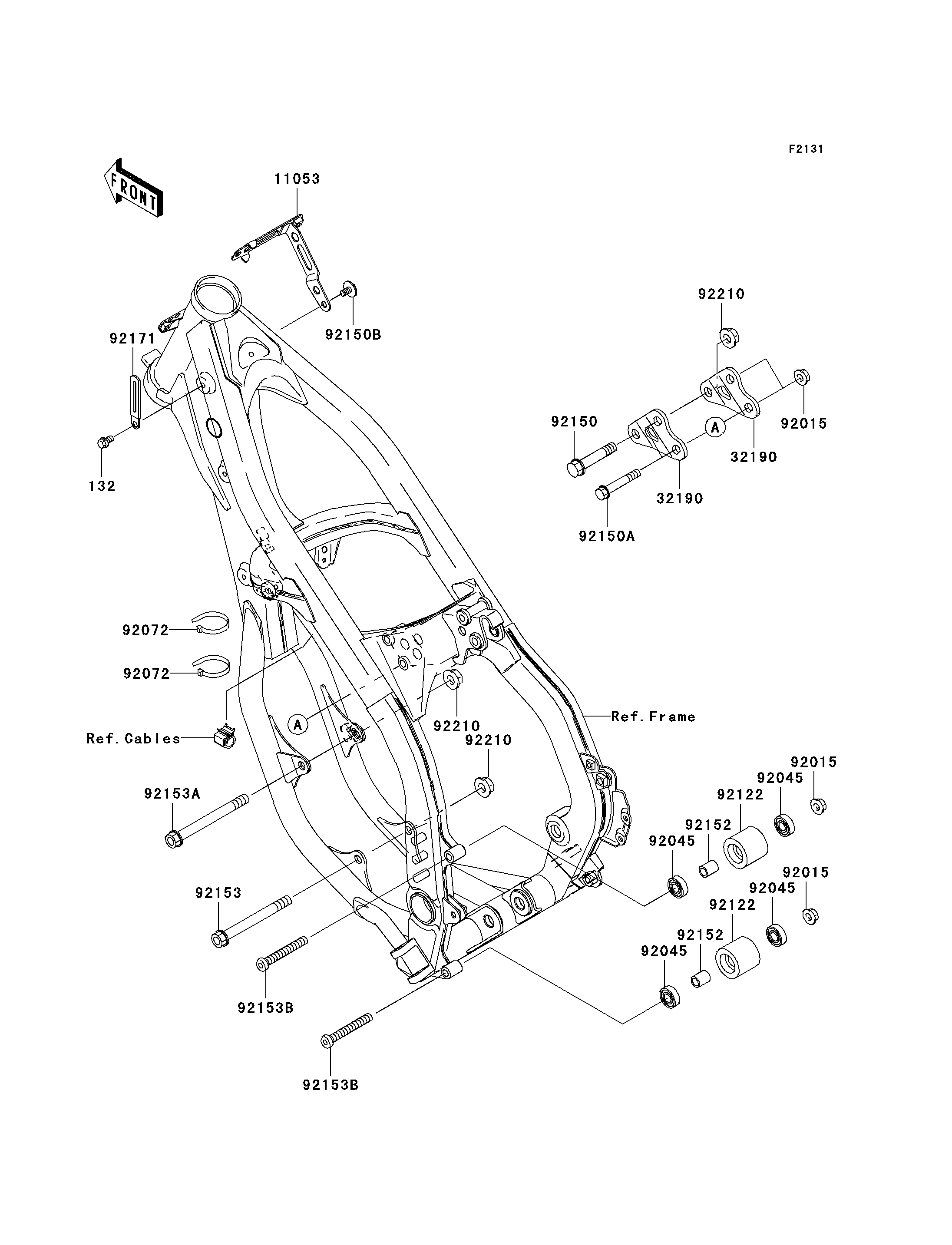

Parts Diagrams |
132
11053
32190
32190
92015
92015
92015
92045
92045
92045
92045
92072
92072
92122
92122
92150
92150A
92150B
92152
92152
92153
92153A
92153B
92153B
92171
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL | 132 | 132L0610 | 1 | ||
| BRACKET,IGNITER | 11053 | 11053-0467 | 1 | ||
| BRACKET-ENGINE | 32190 | 32190-1265 | 2 | ||
| NUT,8MM | 92015 | 92015-1432 | 4 | ||
| BEARING-BALL,608LLU/2A | 92045 | 92045-1009 | 4 | ||
| BAND,L=140 | 92072 | 92072-1293 | 2 | ||
| ROLLER,CHAIN GUIDE | 92122 | 92122-0007 | 2 | ||
| BOLT,FLANGED,10X50 | 92150 | 92150-1125 | 1 | ||
| BOLT,FLANGED,8X50 | 92150A | 92150-1214 | 2 | ||
| BOLT,6X12 | 92150B | 92150-1435 | 1 | ||
| COLLAR,8.5X12.5X15.5 | 92152 | 92152-0211 | 2 | ||
| BOLT,FLANGED,10X105 | 92153 | 92153-0614 | 1 | ||
| BOLT,FLANGED,10X110 | 92153A | 92153-0615 | 1 | ||
| BOLT,SOCKET,8X60 | 92153B | 92153-1259 | 2 | ||
| CLAMP | 92171 | 92171-1279 | 1 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-1080 | 3 |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,IGNITER | |
| REF # | 11053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-ENGINE | |
| REF # | 32190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,608LLU/2A | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BAND,L=140 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| ROLLER,CHAIN GUIDE | |
| REF # | 92122 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X50 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X50 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X12 | |
| REF # | 92150B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,8.5X12.5X15.5 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X105 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X110 | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X60 | |
| REF # | 92153B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,10MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
