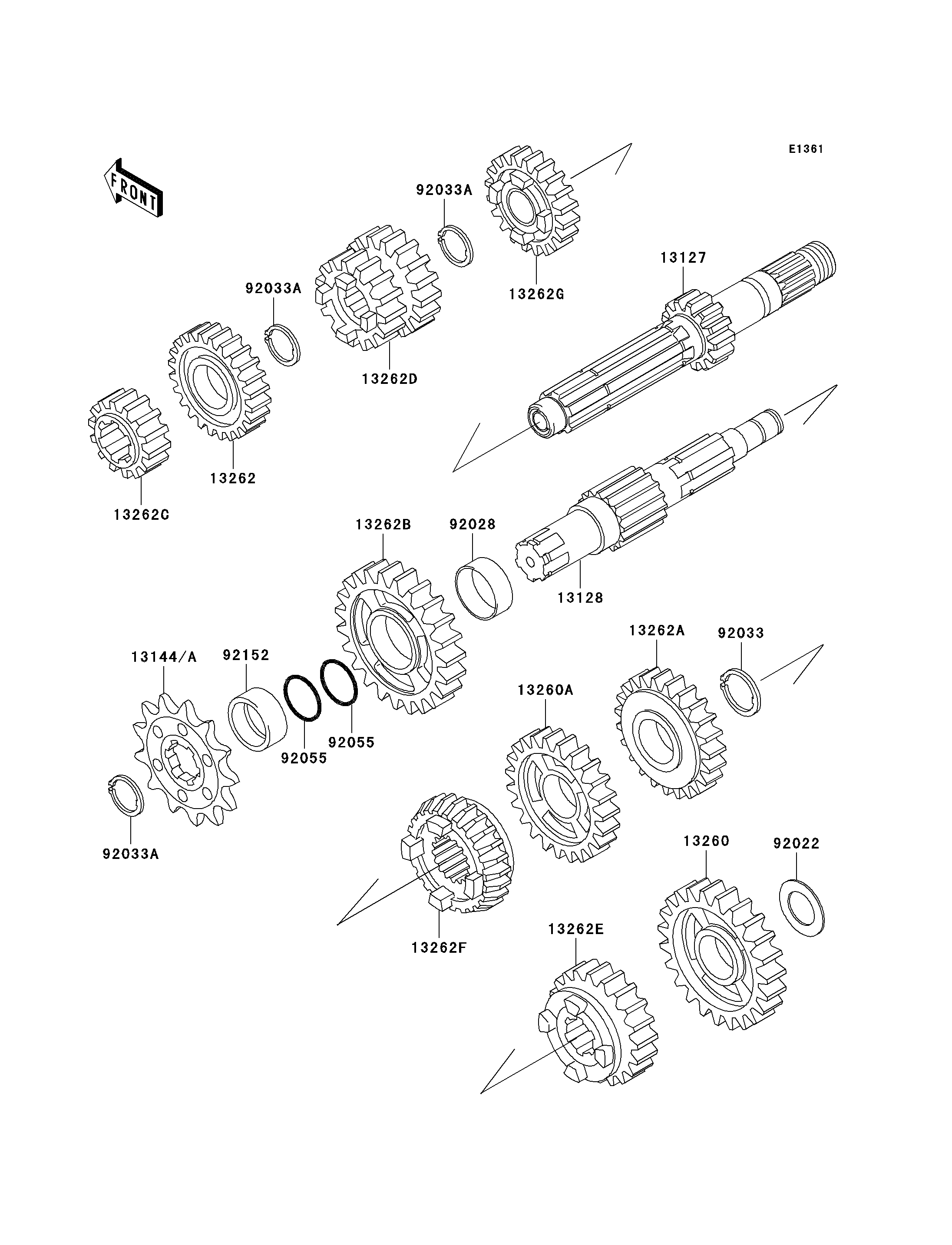

Parts Diagrams |
13127
13128
13144
13144A
13260
13260A
13262
13262A
13262B
13262C
13262D
13262E
13262F
13262G
92022
92028
92033
92033A
92033A
92033A
92055
92055
92152
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHAFT-TRANSMISSION INPUT,13T | 13127 | 13127-0017 | 1 | ||
| SHAFT-TRANSMISSION OUTPUT | 13128 | 13128-1257 | 1 | ||
| SPROCKET-OUTPUT,12T | 13144 | 13144-0019 | 1 | (OPTION) | |
| SPROCKET-OUTPUT,13T | 13144A | 13144-0020 | 1 | ||
| GEAR,OUTPUT LOW,31T | 13260 | 13260-1752 | 1 | ||
| GEAR,OUTPUT 3RD,26T | 13260A | 13260-1754 | 1 | ||
| GEAR,INPUT TOP,25T | 13262 | 13262-0058 | 1 | ||
| GEAR,OUTPUT 4TH,22T | 13262A | 13262-0095 | 1 | ||
| GEAR,OUTPUT 2ND,26T | 13262B | 13262-0117 | 1 | ||
| GEAR,INPUT 2ND,14T | 13262C | 13262-0118 | 1 | ||
| GEAR,INPUT 3RD&4TH,17T&17T | 13262D | 13262-0174 | 1 | ||
| GEAR,OUTPUT 5TH,27T | 13262E | 13262-0175 | 1 | ||
| GEAR,OUTPUT TOP,25T | 13262F | 13262-0176 | 1 | ||
| GEAR,INPUT 5TH,24T | 13262G | 13262-1055 | 1 | ||
| WASHER,17.3X28X1 | 92022 | 92022-255 | 1 | ||
| BUSHING,OUTPUT,2ND | 92028 | 92028-1732 | 1 | ||
| RING-SNAP,25MM | 92033 | 92033-1089 | 1 | ||
| RING-SNAP,20MM | 92033A | 92033-1231 | 3 | ||
| RING-O,19.5X1.5 | 92055 | 92055-055 | 2 | ||
| COLLAR | 92152 | 92152-0189 | 1 |
