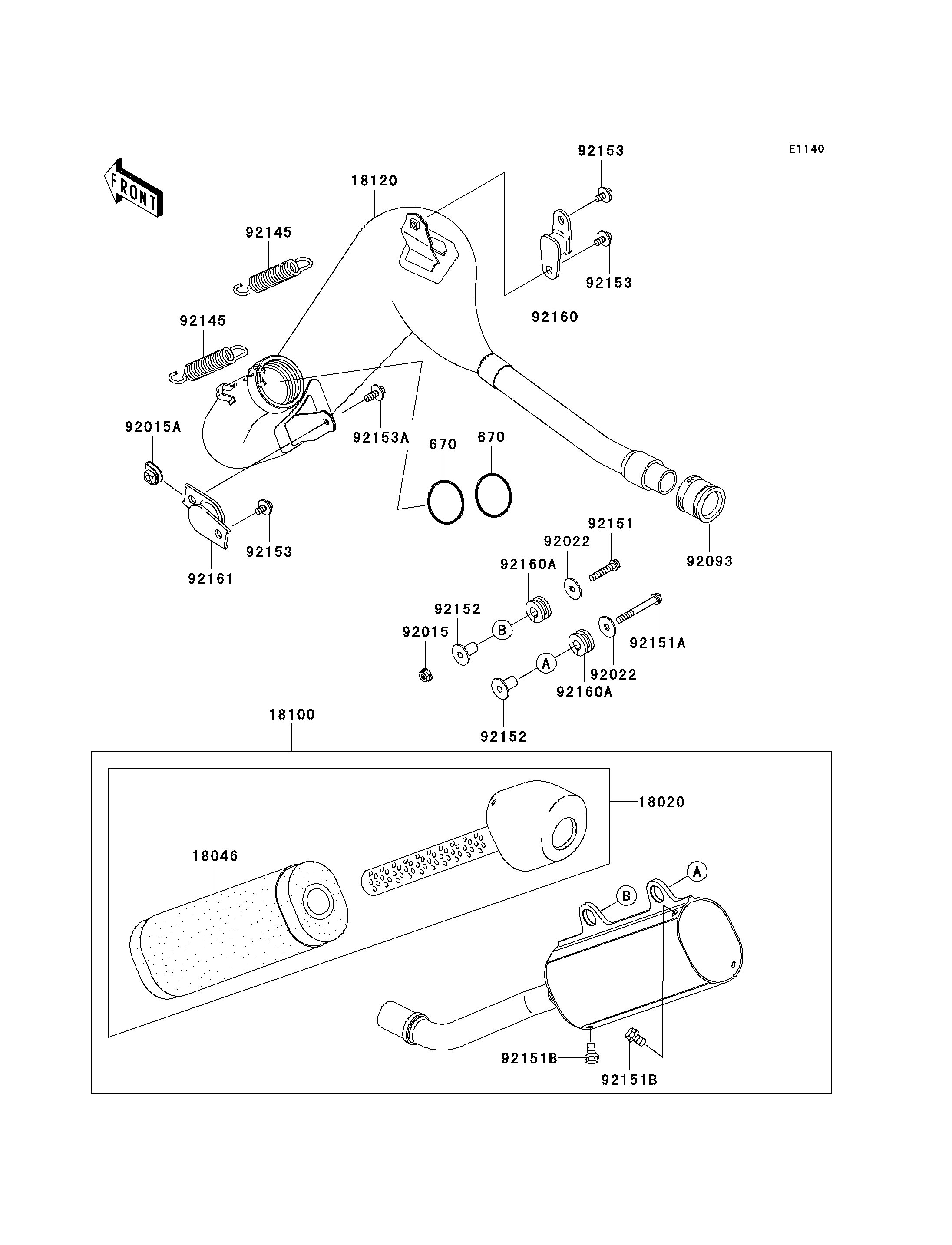

2005 KX125 - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
670
670
18020
18046
18100
18120
92015
92015A
92022
92022
92093
92145
92145
92151
92151A
92151B
92151B
92152
92152
92153
92153
92153
92153A
92160
92160A
92160A
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
O RING,45MM 670 670E3045 2
BAFFLE 18020 18020-0007 1
WOOL 18046 18046-1597 1
BODY-ASSY-MUFFLER 18100 18100-0003 1
CHAMBER-EXHAUST 18120 18120-0011 1
NUT,FLANGED,6MM 92015 92015-1078 1
NUT,CLIP,6MM 92015A 92015-1904 1
WASHER,6.5X22X1.6 92022 92022-237 2
SEAL,MUFFLER CONNECTING 92093 92093-1363 1
SPRING,EXHAUST CONNECTING 92145 92145-1340 2
BOLT,6X30 92151 92151-1134 1
BOLT,6X50 92151A 92151-1234 1
BOLT,6X10 92151B 92151-1822 4
COLLAR 92152 92152-1407 2
BOLT,6X12 92153 92153-0503 3
BOLT,6X16 92153A 92153-0863 1
DAMPER,MUFFLER,RR 92160 92160-1201 1
DAMPER,MUFFLER FITTING 92160A 92160-1913 2
DAMPER 92161 92161-1290 1
