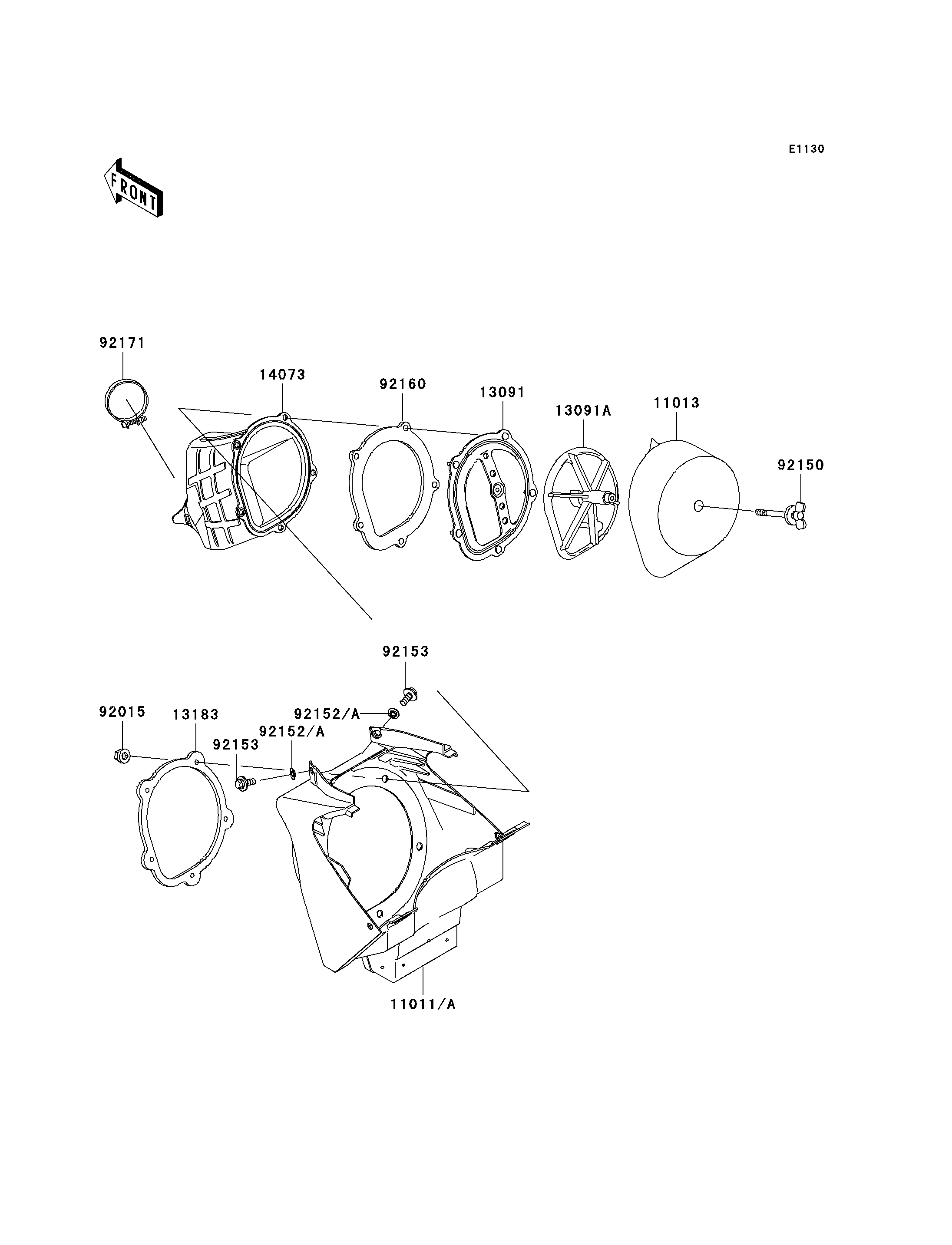

Parts Diagrams |
11011
11011A
11013
13091
13091A
13183
14073
92015
92150
92152
92152
92152A
92152A
92153
92153
92160
92171
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE-AIR FILTER | 11011 | 11011-0012 | 1 | ( - JKAKXRMC 5A017213) | |
| CASE-AIR FILTER | 11011A | 11011-0048 | 1 | (JKAKXRMC 5A017214 - ) | |
| ELEMENT-AIR FILTER | 11013 | 11013-1264 | 1 | ||
| HOLDER | 13091 | 13091-1664 | 1 | ||
| HOLDER,ELEMENT | 13091A | 13091-1708 | 1 | ||
| PLATE,DUCT FITTING | 13183 | 13183-1530 | 1 | ||
| DUCT,AIR FILTER | 14073 | 14073-0034 | 1 | ||
| NUT,FLANGED,5MM | 92015 | 92015-1259 | 5 | ||
| BOLT,WING | 92150 | 92150-1565 | 1 | ||
| COLLAR | 92152 | 92152-0250 | 2 | ( - JKAKXRMC 5A017213) | |
| COLLAR | 92152A | 92152-0275 | 2 | (JKAKXRMC 5A017214 - ) | |
| BOLT,6X16 | 92153 | 92153-0863 | 2 | ||
| DAMPER,DUCT SEAL | 92160 | 92160-1196 | 1 | ||
| CLAMP,AIR FILTER | 92171 | 92171-1066 | 1 |
