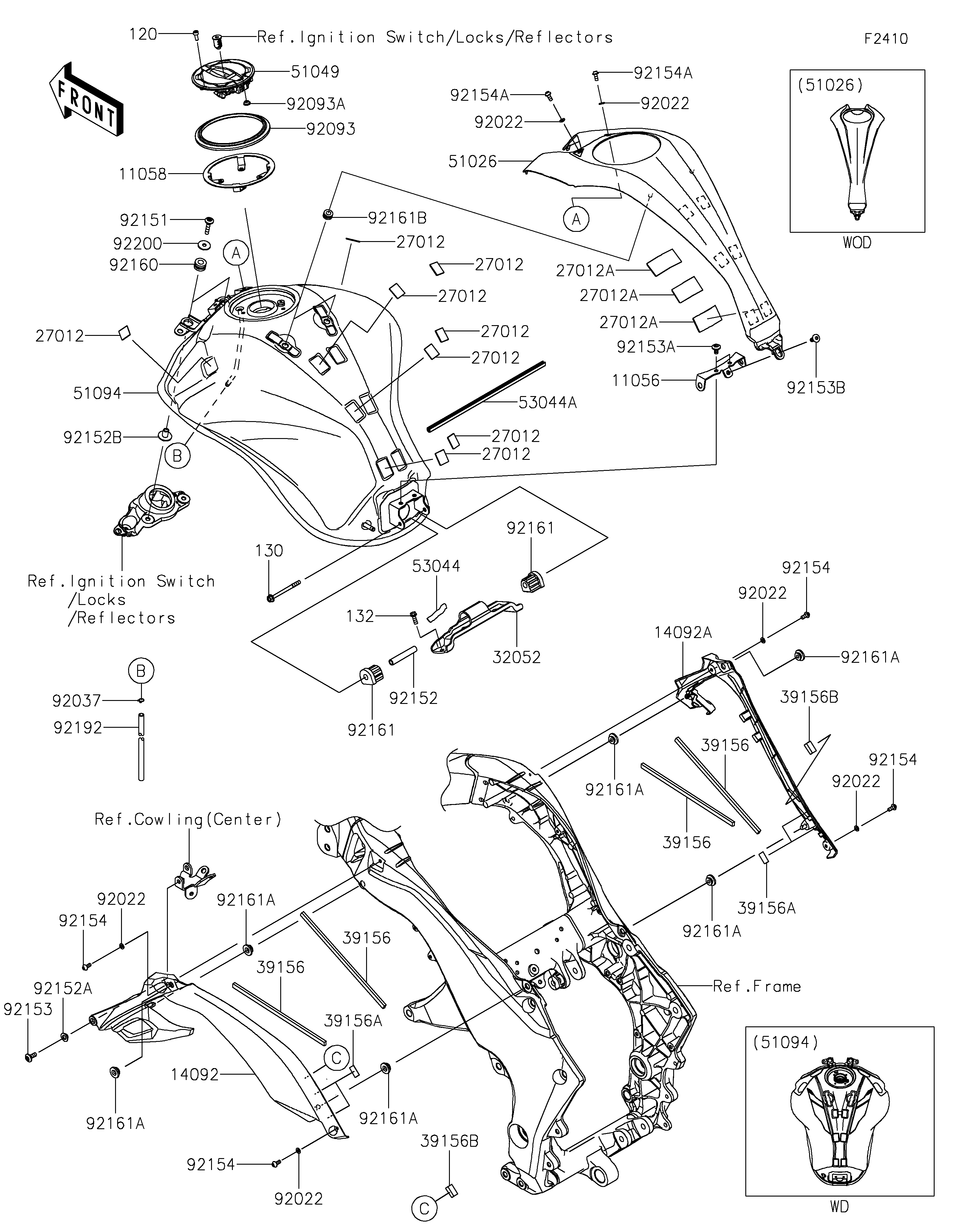

2026 Z1100 SE ABS - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11056
11058
14092
14092A
27012
27012
27012
27012
27012
27012
27012
27012
27012A
27012A
27012A
32052
39156
39156
39156
39156
39156A
39156A
39156B
39156B
51026
51049
51094
53044
53044A
92022
92022
92022
92022
92022
92022
92037
92093
92093A
92151
92152
92152A
92152B
92153
92153A
92153B
92154
92154
92154
92154
92154A
92154A
92160
92161
92161
92161A
92161A
92161A
92161A
92161A
92161A
92161B
92192
92200
120
130
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-3839 1
BRACKET 11058 11058-3868 1
COVER,KNEE GRIP,LH 14092 14092-1128 1
COVER,KNEE GRIP,RH 14092A 14092-1129 1
HOOK 27012 27012-0171 8
HOOK,FASTENER,28X57 27012A 27012-0764 3
BRACKET-TANK 32052 32052-0719 1
PAD 39156 39156-0563 4
PAD,15X20X0.2 39156A 39156-1784 4
PAD,20X8X10 39156B 39156-1968 2
COVER TANK,EBONY 51026 51026-0010-H8 1
CAP-TANK,FUEL 51049 51049-0756 1
TANK-COMP-FUEL,M.M.C.GRAY 51094 51094-5408-51B 1
TRIM 53044 53044-0565 1
TRIM 53044A 53044-1296 1
WASHER,5.1X10X1.0 92022 92022-1977 6
CLAMP,TUBE 92037 92037-010 1
SEAL,TANK CAP 92093 92093-0842 1
SEAL,FUEL TANK CAP 92093A 92093-1030 1
BOLT,SOCKET,6X30 92151 92151-1605 2
COLLAR,6.8X10X60 92152 92152-1182 1
COLLAR,6.5X10X5.3 92152A 92152-1863 1
COLLAR,6.4X9.5X15.1 92152B 92152-2331 2
BOLT,SOCKET,6X16 92153 92153-1526 1
BOLT,SOCKET,6X12 92153A 92153-1948 2
BOLT,SOCKET,6MM 92153B 92153-1956 1
BOLT,SOCKET,5X12 92154 92154-0917 4
BOLT,SOCKET,5X12 92154A 92154-1421 2
DAMPER,10X20X12 92160 92160-1167 2
DAMPER,FUEL TANK,RR 92161 92161-1330 2
DAMPER 92161A 92161-1531 6
DAMPER,8.2X16X8.3 92161B 92161-1584 2
TUBE,6X9X926(30) 92192 92192-1024 1
WASHER,6.5X22X1.6 92200 92200-1087 2
BOLT-SOCKET,5X12 120 120CA0512 4
BOLT-FLANGED,6X70 130 130BB0670 1
BOLT-FLANGED-SMALL,6X16 132 132BA0616 2
