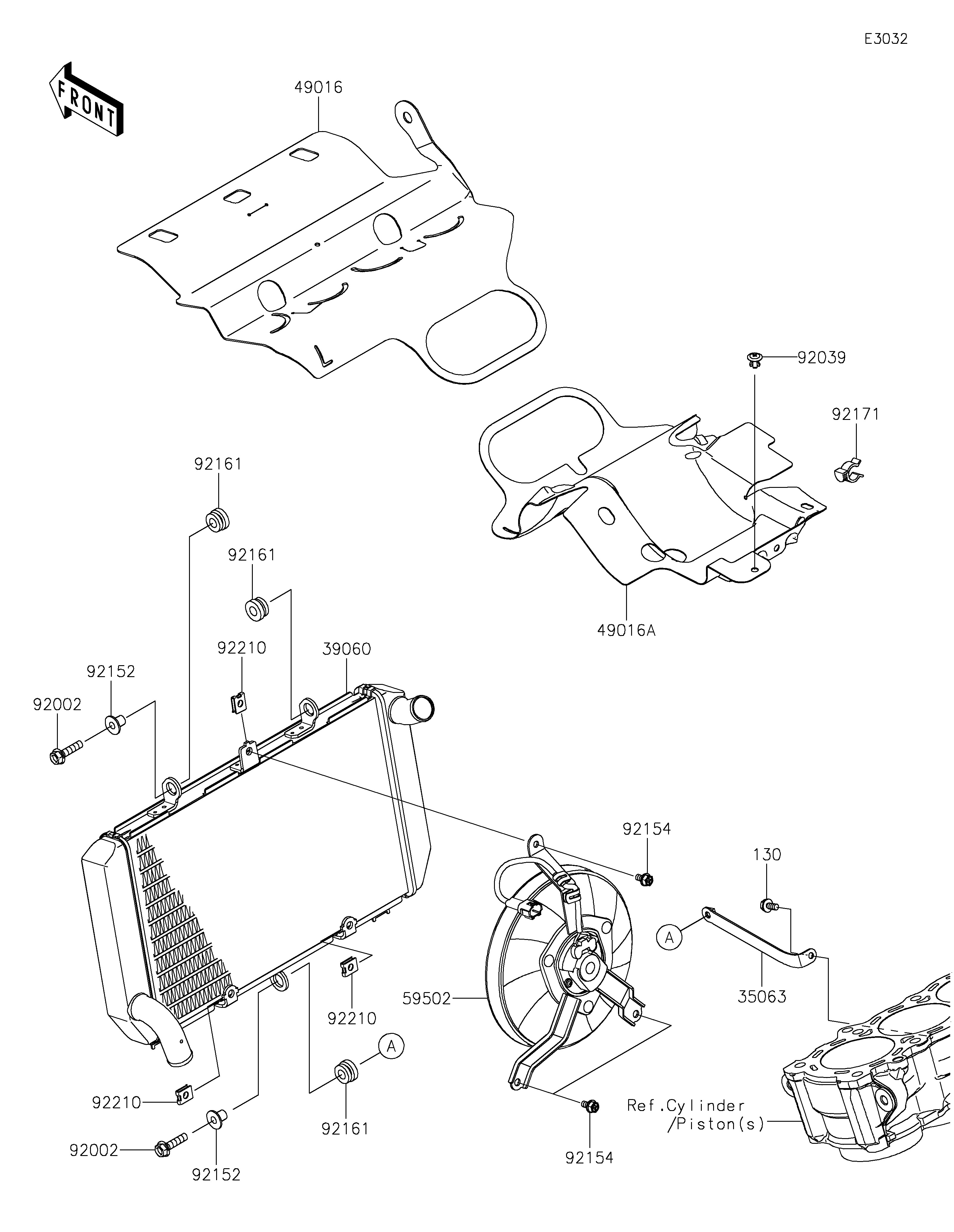

Parts Diagrams |
35063
39060
49016
49016A
59502
92002
92002
92039
92152
92152
92154
92154
92161
92161
92161
92171
92210
92210
92210
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| STAY | 35063 | 35063-0761 | 1 | ||
| RADIATOR | 39060 | 39060-0784 | 1 | ||
| COVER-SEAL | 49016 | 49016-0731 | 1 | ||
| COVER-SEAL | 49016A | 49016-0732 | 1 | ||
| FAN-ASSY | 59502 | 59502-0658 | 1 | ||
| BOLT,FLANGED,6X25 | 92002 | 92002-1086 | 2 | ||
| RIVET | 92039 | 92039-0730 | 1 | ||
| COLLAR | 92152 | 92152-0667 | 2 | ||
| BOLT | 92154 | 92154-1429 | 3 | ||
| DAMPER | 92161 | 92161-2139 | 3 | ||
| CLAMP,HARNESS | 92171 | 92171-0465 | 1 | ||
| NUT | 92210 | 92210-1323 | 3 | ||
| BOLT-FLANGED,6X16 | 130 | 130CC0616 | 1 |
