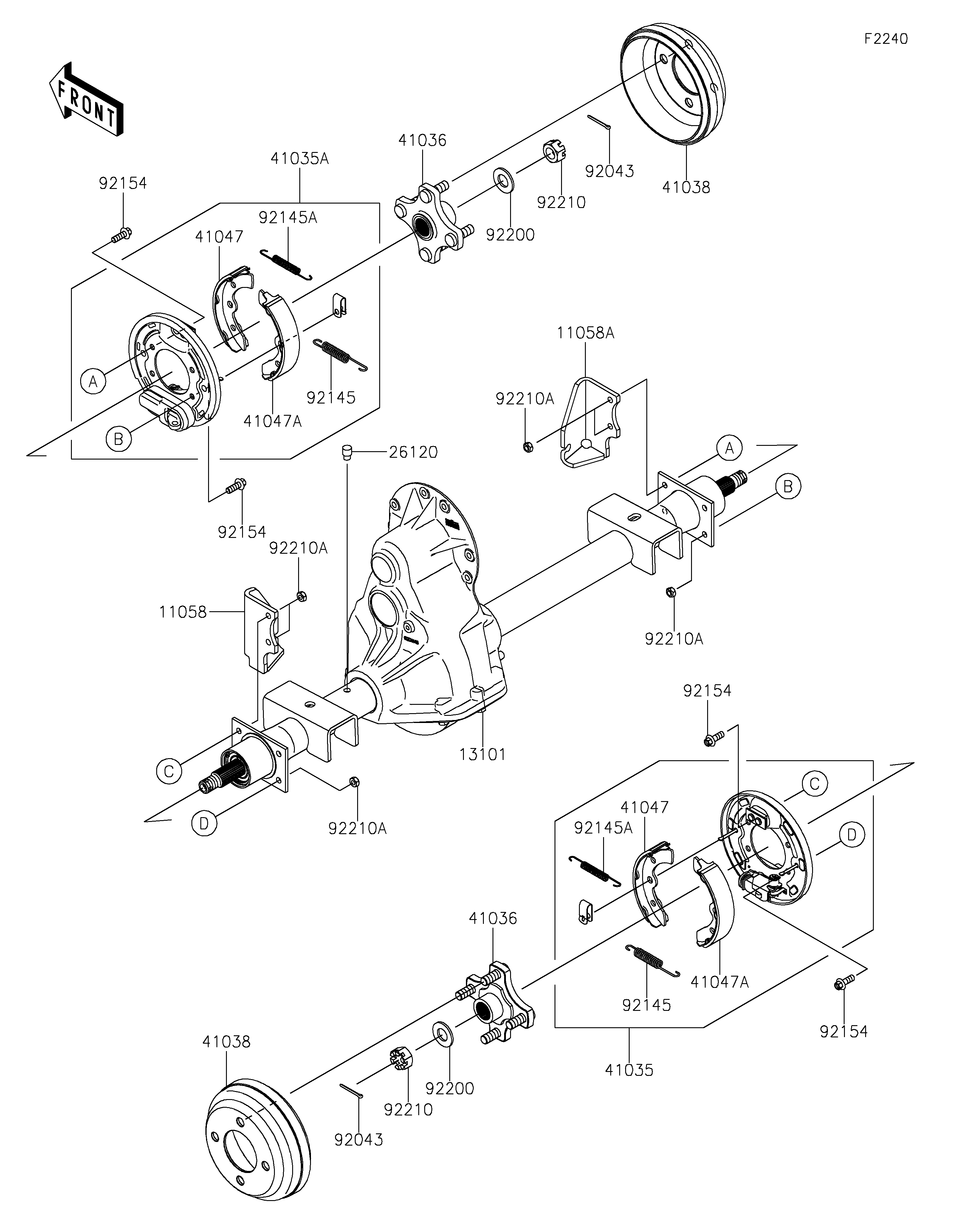

2025 NAV® 4e LE - Rear Hubs/Brakes

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
13101
26120
41035
41035A
41036
41036
41038
41038
41047
41047
41047A
41047A
92043
92043
92145
92145
92145A
92145A
92154
92154
92154
92154
92200
92200
92210
92210
92210A
92210A
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,BRAKE CABLE,LH 11058 11058-3827 1
BRACKET,BRAKE CABLE,RH 11058A 11058-3828 1
GEAR-ASSY,RR 13101 13101-0734 1
PLUG-VENT 26120 26120-0001 1
PANEL-ASSY-BRAKE,LH 41035 41035-0753 1
PANEL-ASSY-BRAKE,RH 41035A 41035-0754 1
HUB-ASSY 41036 41036-1405 2
DRUM 41038 41038-0628 2
SHOE-ASSY-BRAKE 41047 41047-0004 2
SHOE-ASSY-BRAKE 41047A 41047-0005 2
PIN 92043 92043-1875 2
SPRING 92145 92145-2420 2
SPRING 92145A 92145-2421 2
BOLT 92154 92154-7691 8
WASHER 92200 92200-2805 2
NUT 92210 92210-2296 2
NUT 92210A 92210-2297 8
