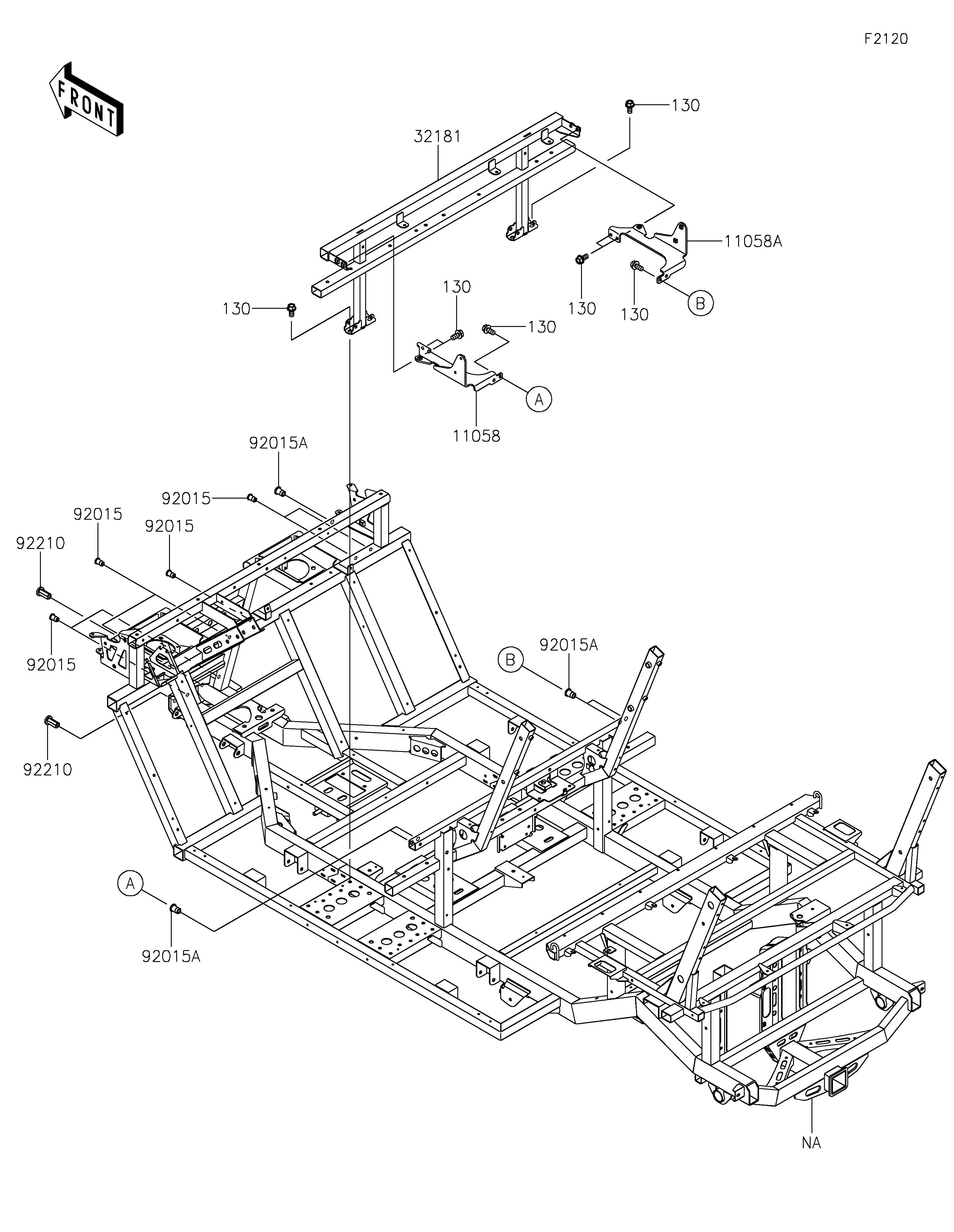

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,ARMREST,LH | 11058 | 11058-2504 | 1 | ||
| BRACKET,ARMREST,RH | 11058A | 11058-2506 | 1 | ||
| FRAME-SUB-COMP,FR SEAT | 32181 | 32181-0069 | 1 | ||
| NUT,POP,6MM,L=15 | 92015 | 92015-1791 | 7 | ||
| NUT,POP,8MM,L=16.5 | 92015A | 92015-1793 | 5 | ||
| NUT,RIVET | 92210 | 92210-2232 | 2 | ||
| BOLT-FLANGED,8X16 | 130 | 130CA0816 | 12 |
| BRACKET,ARMREST,LH | |
| REF # | 11058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,ARMREST,RH | |
| REF # | 11058A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME-SUB-COMP,FR SEAT | |
| REF # | 32181 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,POP,6MM,L=15 | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| NUT,POP,8MM,L=16.5 | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| NUT,RIVET | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X16 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
