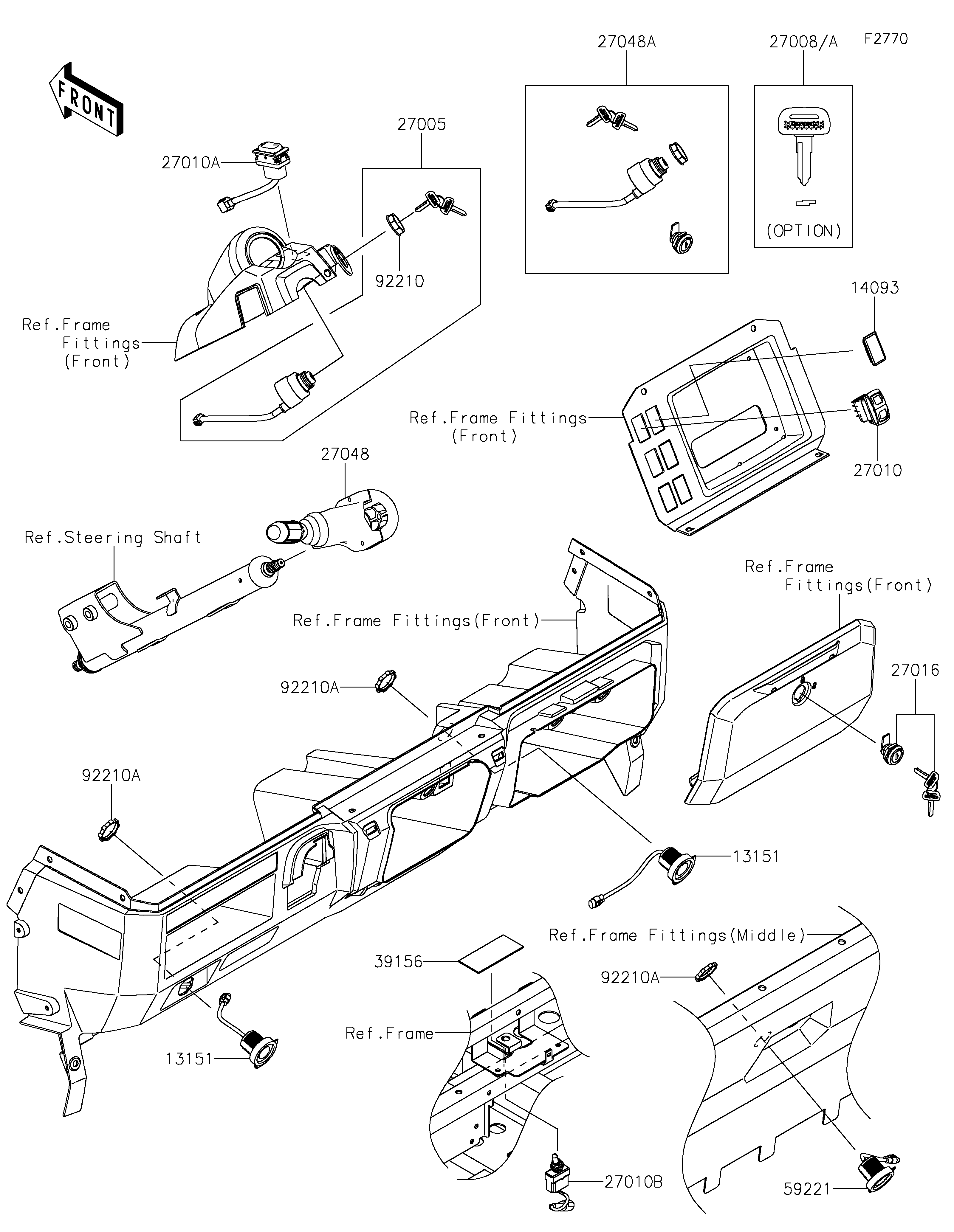

2025 NAV® 4e LIMITED - Ignition Switch
13151
13151
14093
27005
27008
27008A
27010
27010A
27010B
27016
27048
27048A
39156
59221
92210
92210A
92210A
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SWITCH-COMP,USB | 13151 | 13151-0619 | 2 | ||
| COVER,SWITCH | 14093 | 14093-1202 | 1 | ||
| SWITCH-ASSY-IGNITION | 27005 | 27005-0669 | 1 | ||
| KEY-LOCK,BLANK,TYPE A | 27008 | 27008-0656 | 1 | (OPTION) | |
| KEY-LOCK,BLANK,TYPE B | 27008A | 27008-0657 | 1 | (OPTION) | |
| SWITCH,HEAD LIGHT | 27010 | 27010-0903 | 1 | ||
| SWITCH,DIRECTION | 27010A | 27010-0998 | 1 | ||
| SWITCH,RUN/TOW | 27010B | 27010-1000 | 1 | ||
| LOCK-ASSY,STORAGE | 27016 | 27016-5439 | 1 | ||
| SWITCH-ASSY,LAMP-SIGNAL/HORN | 27048 | 27048-0065 | 1 | ||
| SWITCH-ASSY | 27048A | 27048-5343 | 1 | ||
| PAD,40X90X2 | 39156 | 39156-2339 | 1 | ||
| CONNECTOR-CORD,USB | 59221 | 59221-0049 | 1 | ||
| NUT,IGNITION SWITCH | 92210 | 92210-1264 | 1 | ||
| NUT | 92210A | 92210-1934 | 3 |
