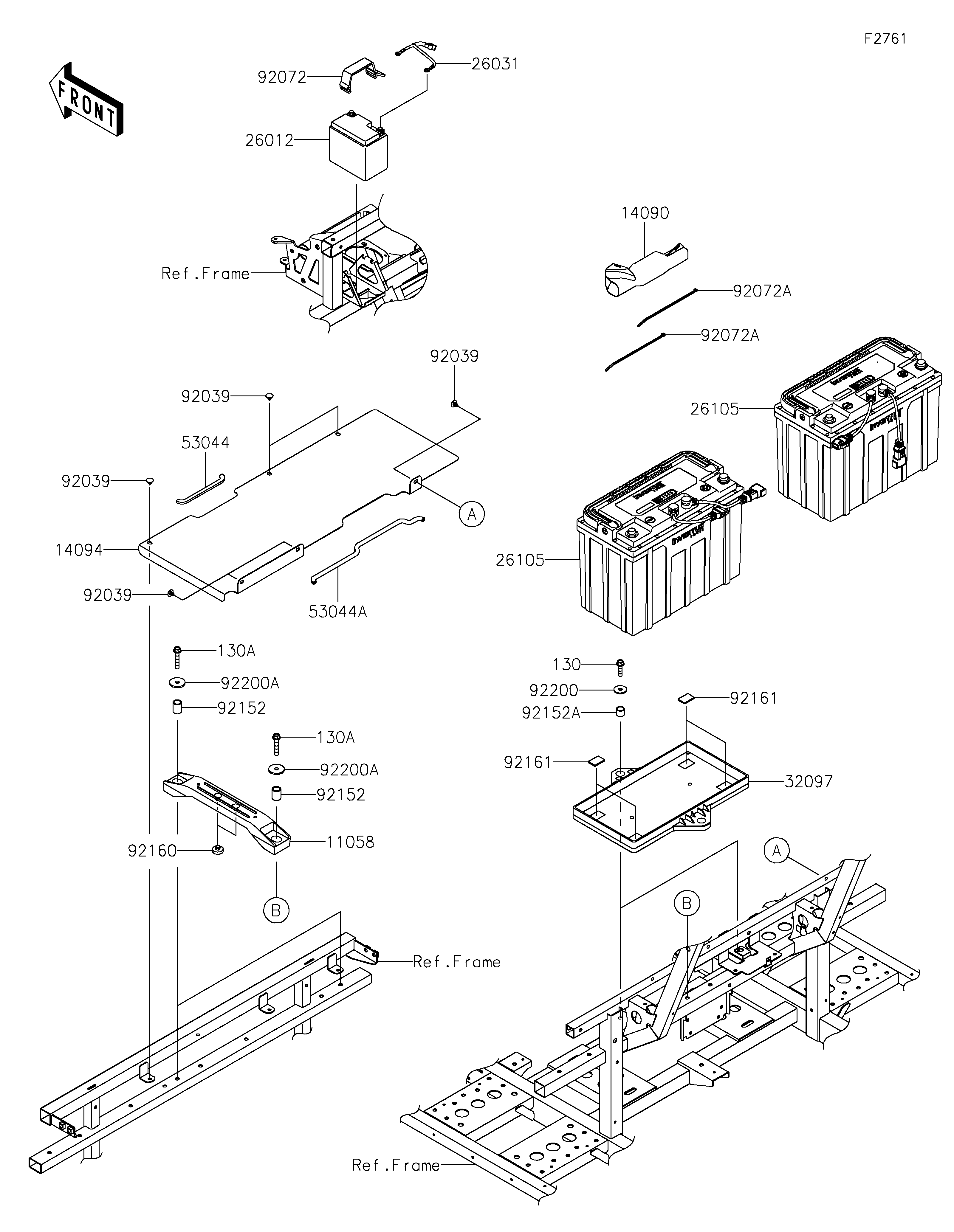

2025 NAV® 4e LIMITED - Battery

DOWNLOAD PDF
SELECT A NEW PART
11058
14090
14094
26012
26031
26105
26105
32097
53044
53044A
92039
92039
92039
92039
92072
92072A
92072A
92152
92152
92152A
92160
92161
92161
92200
92200A
92200A
130
130A
130A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,BATTERY STOPPER 11058 11058-2349 2
COVER,COUPLER 14090 14090-1611 1
COVER,BATTERY 14094 14094-0361 1
BATTERY,FTZ6V,12V 5AH 26012 26012-0908 1 (OPTION)
HARNESS,SUB BATTERY 26031 26031-4273 1
PACK-ASSY-BATTERY 26105 26105-0010 2
CASE-BATTERY 32097 32097-0578 2
TRIM,9X6.5X140 53044 53044-0626 1
TRIM,9X6.5X360 53044A 53044-0775 1
RIVET 92039 92039-0722 6
BAND,CANISTER 92072 92072-0815 1
BAND,L=292.1 92072A 92072-3509 2
COLLAR,14.2X19.1X24 92152 92152-3829 4
COLLAR 92152A 92152-3830 4
DAMPER 92160 92160-1396 4
DAMPER,20X30X3 92161 92161-0958 8
WASHER,8.5X28X2.3 92200 92200-2649 4
WASHER,8.5X34X3.2 92200A 92200-2778 4
BOLT-FLANGED,8X30 130 130BA0830 4
BOLT-FLANGED,8X45 130A 130CA0845 4
