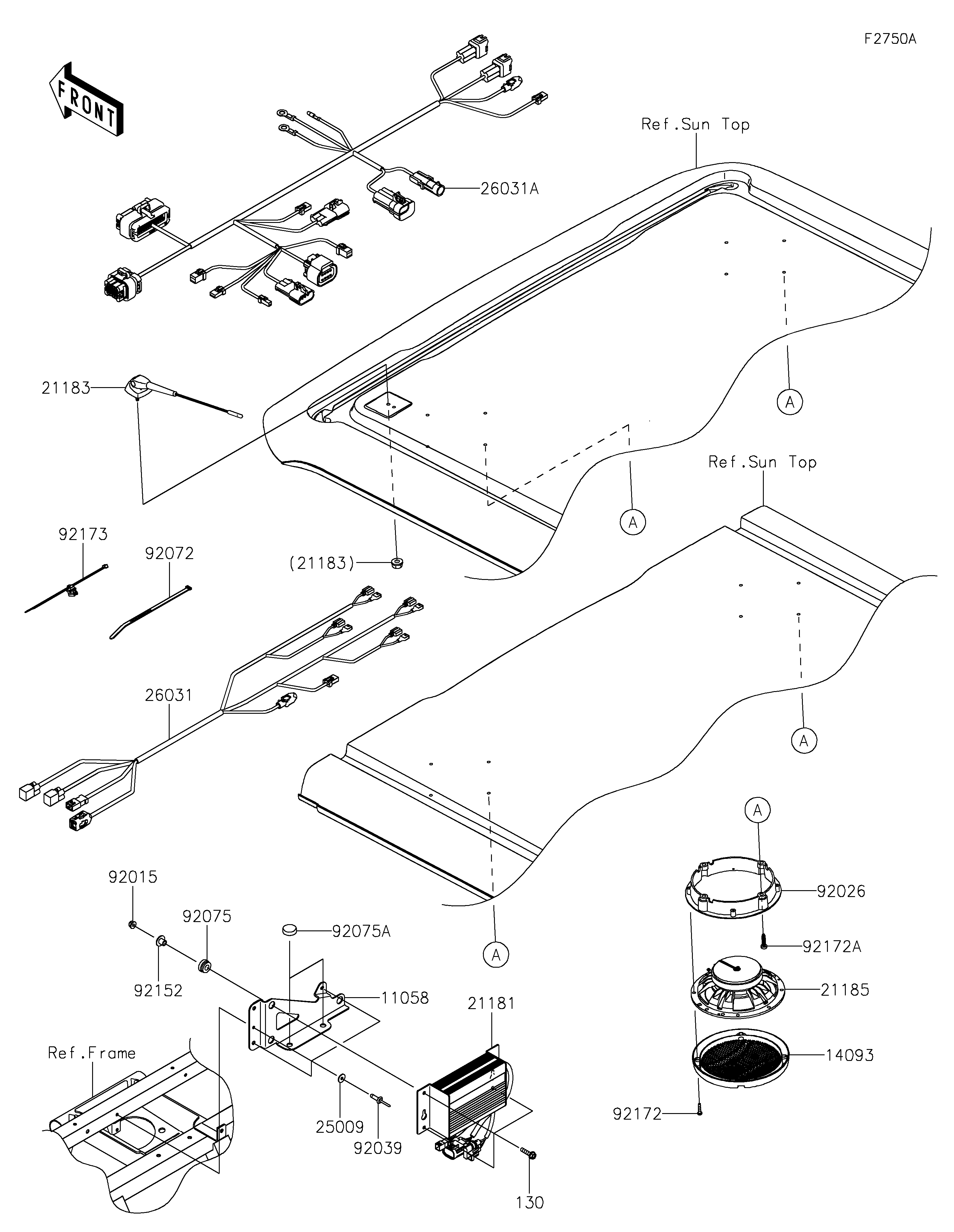

2025 NAV® 4e LIMITED - Other(Audio System)

DOWNLOAD PDF
SELECT A NEW PART
11058
14093
21181
21183
21185
25009
26031
26031A
92015
92026
92039
92072
92075
92075A
92152
92172
92172A
92173
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,AMPLIFIER 11058 11058-4449 1
COVER,SPEAKER GRILLE 14093 14093-1058 4
AMPLIFIER 21181 21181-0032 1
ANTENNA,AUDIO 21183 21183-0024 1
SPEAKER 21185 21185-0015 4
WASHER,5.2X16X1.2 25009 25009-004 3
HARNESS,A-PILLAR 26031 26031-4270 1
HARNESS,AUDIO 26031A 26031-4392 1
NUT,LOCK,FLANGED,6MM 92015 92015-1603 3
SPACER,SPEAKER 92026 92026-0945 4
RIVET,5X23.3 92039 92039-0769 3
BAND 92072 92072-0821 1
DAMPER 92075 92075-277 3
DAMPER,9X24X14 92075A 92075-281 2
COLLAR 92152 92152-2855 3
SCREW,SPEAKER 92172 92172-1353 16
SCREW 92172A 92172-1490 16
CLAMP 92173 92173-2665 21
BOLT-FLANGED,6X25 130 130BA0625 3
