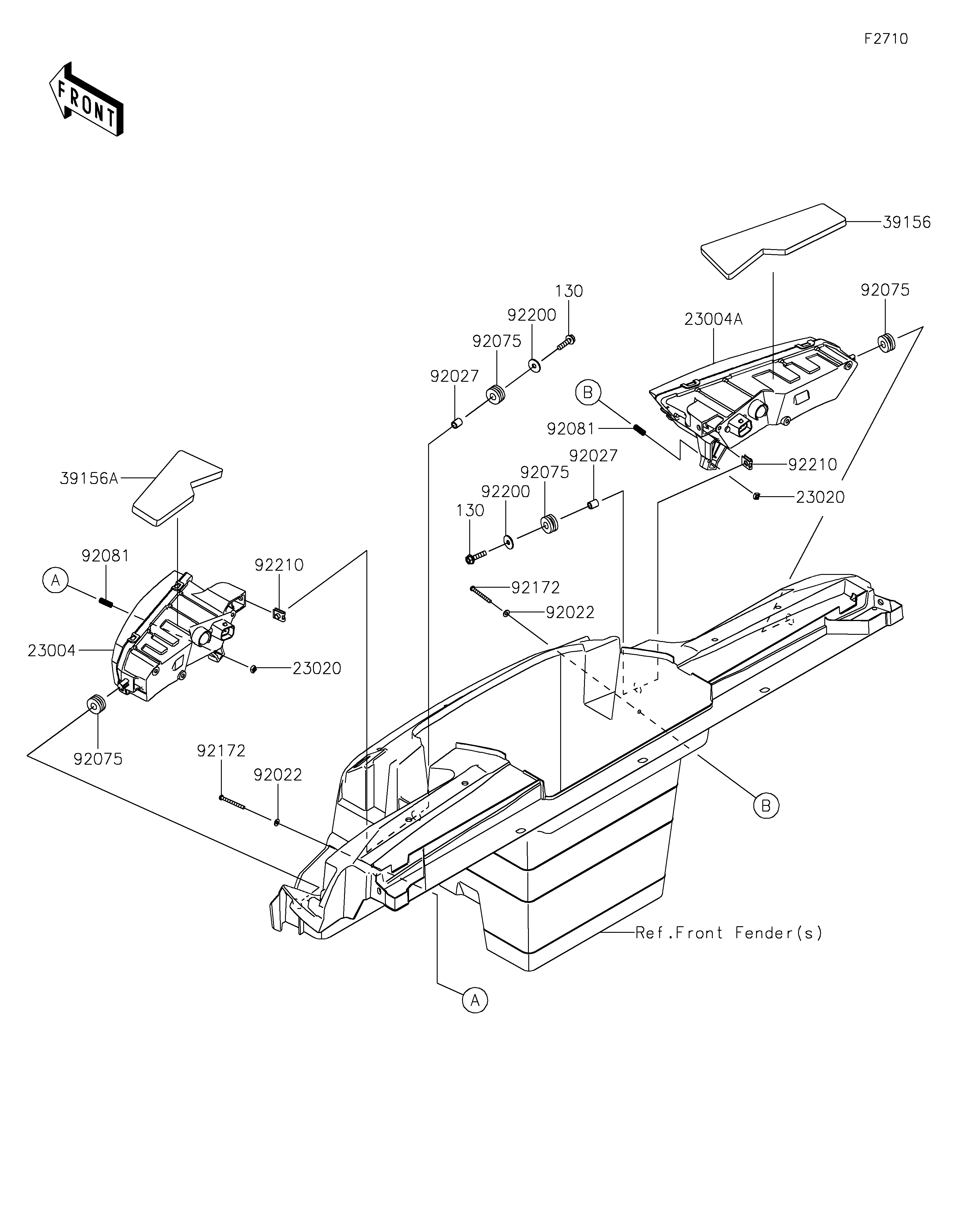

2025 NAV® 4e LIMITED - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
23004
23004A
23020
23020
39156
39156A
92022
92022
92027
92027
92075
92075
92075
92075
92081
92081
92172
92172
92200
92200
92210
92210
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP-HEAD,LED,LH 23004 23004-0471 1
LAMP-HEAD,LED,RH 23004A 23004-0472 1
NUT,4MM,FOCUS ADJUST 23020 23020-018 2
PAD,HEAD LAMP,RH 39156 39156-2970 1
PAD,HEAD LAMP,LH 39156A 39156-2971 1
WASHER 92022 92022-563 2
COLLAR,6.8X10X12 92027 92027-162 2
DAMPER,10X24X12 92075 92075-1690 4
SPRING,FOCUS ADJUST 92081 92081-1896 2
SCREW,4X40 92172 92172-1092 2
WASHER,6.5X20X1.6 92200 92200-0283 2
NUT 92210 92210-1125 2
BOLT-FLANGED,6X25 130 130BA0625 2
