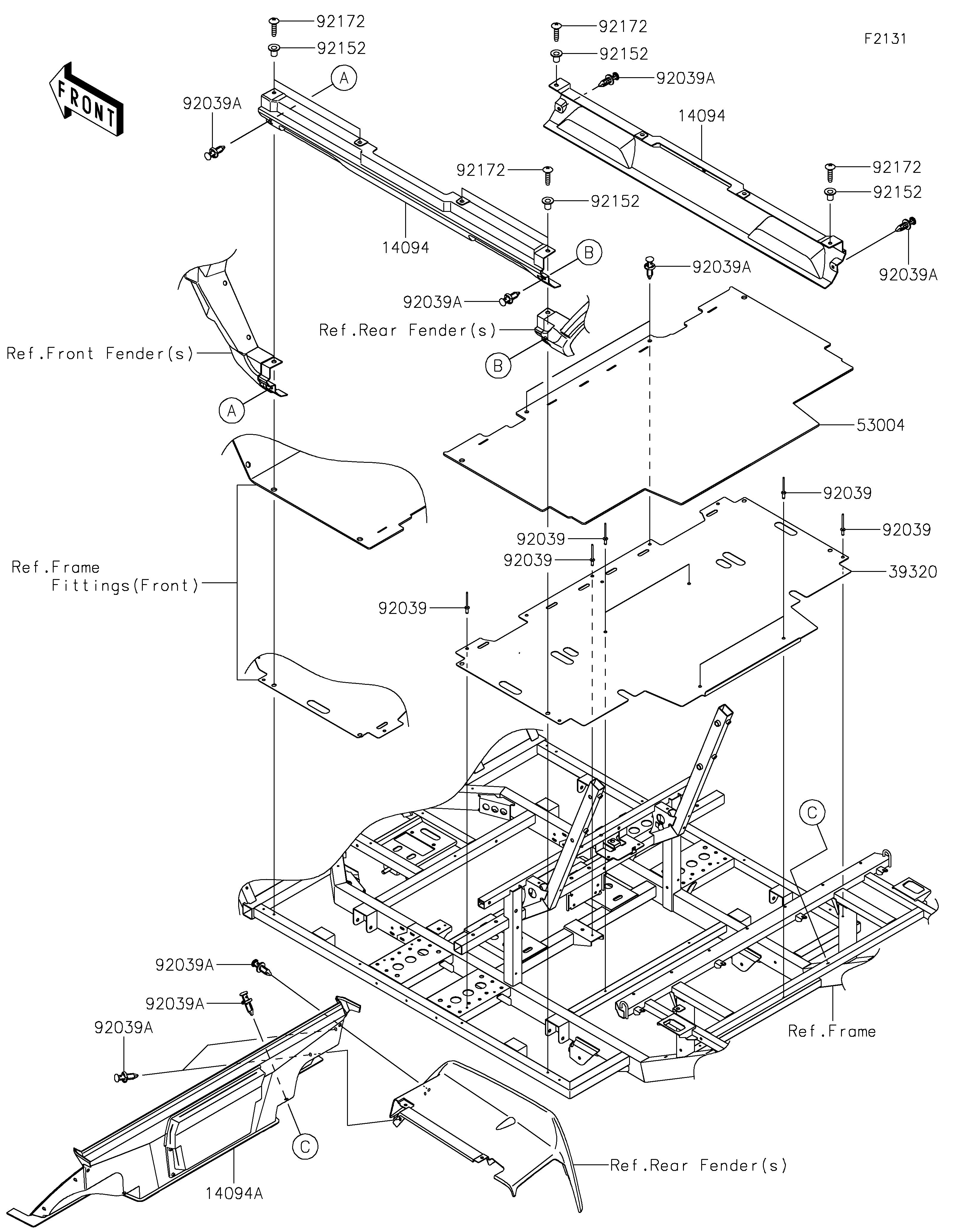

2025 NAV® 4e LIMITED - Frame Fittings(Rear)
14094
14094
14094A
39320
53004
92039
92039
92039
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92152
92152
92152
92152
92172
92172
92172
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,SIDE LOWER GUARD | 14094 | 14094-0042 | 2 | ||
| COVER,RR SEAT UNDER | 14094A | 14094-0043 | 1 | ||
| FLOOR,RR | 39320 | 39320-0005 | 1 | ||
| MAT,RR FLOOR | 53004 | 53004-0725 | 1 | ||
| RIVET,5X23.3 | 92039 | 92039-0769 | 9 | ||
| RIVET | 92039A | 92039-0865 | 14 | ||
| COLLAR | 92152 | 92152-3862 | 8 | ||
| SCREW,TAPPING,6X25 | 92172 | 92172-1692 | 8 |
