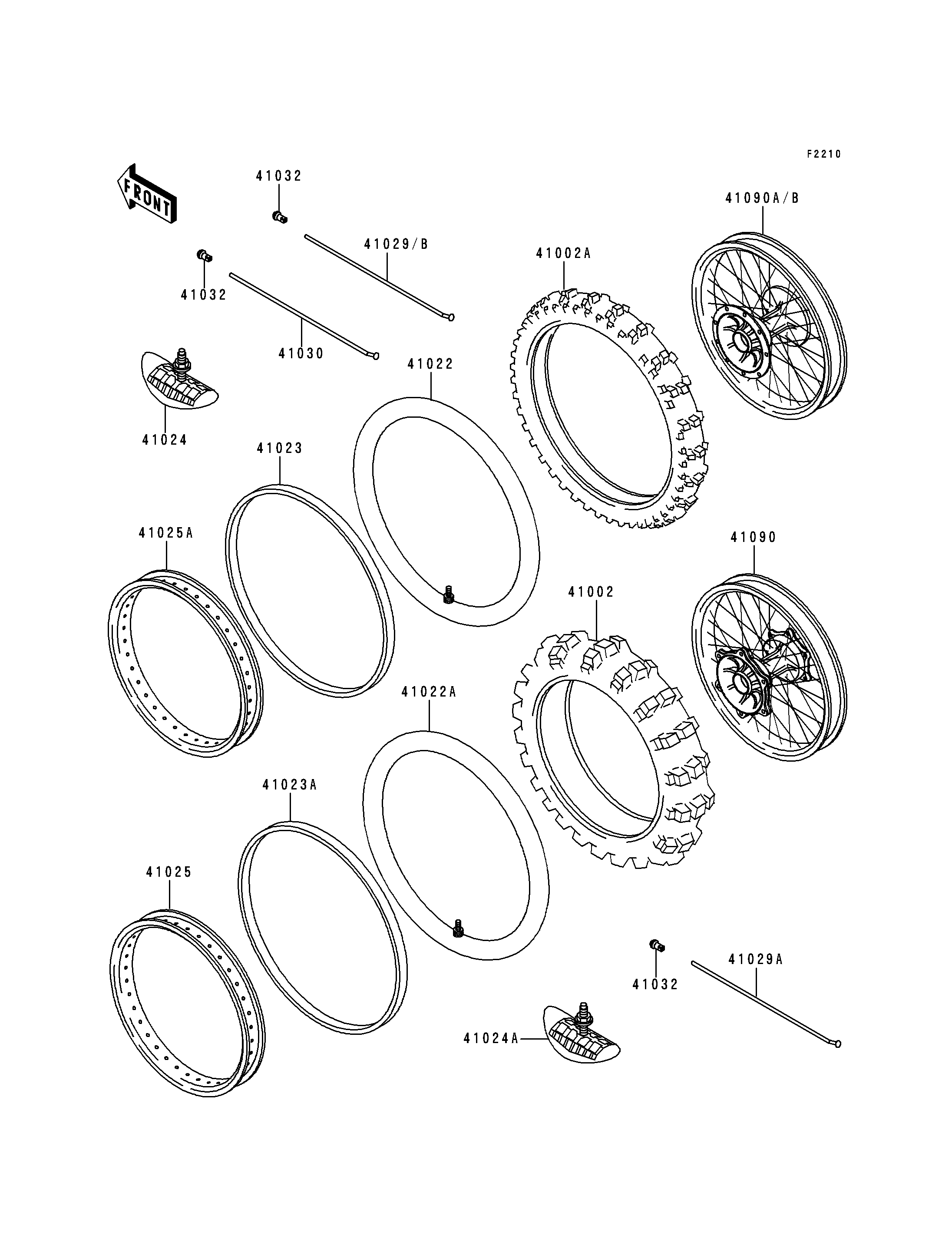

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
41002
41002A
41022
41022A
41023
41023A
41024
41024A
41025
41025A
41029
41029A
41030
41032
41032
41032
41090
41090A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE,RR,100/100-18 59M,K695(D) | 41002 | 41002-1753 | 1 | ||
| TIRE,FR,80/100-21 51M,K490(D) | 41002A | 41002-1803 | 1 | ||
| TUBE-TIRE,80/100-21(D) | 41022 | 41022-1118 | 1 | ||
| TUBE-TIRE,100/100-18(D) | 41022A | 41022-1119 | 1 | ||
| BAND-RIM,80/100-21(D) | 41023 | 41023-1069 | 1 | ||
| BAND-RIM,100/100-18(D) | 41023A | 41023-1070 | 1 | ||
| STOPPER-RIM,1.60-M(DUNLOP) | 41024 | 41024-010 | 1 | ||
| STOPPER-RIM,1.85-M(DUNLOP) | 41024A | 41024-011 | 1 | ||
| RIM,RR,1.85X18 | 41025 | 41025-1231 | 1 | ||
| RIM,FR,1.60X21 | 41025A | 41025-1241 | 1 | ||
| SPOKE-INNER,FR,229MMX166D | 41029 | 41029-1155 | 9 | ||
| SPOKE-INNER,RR,189MMX160D | 41029A | 41029-1199 | 36 | ||
| SPOKE-OUTER,FR,222MMX166D | 41030 | 41030-1108 | 27 | ||
| NIPPLE-SPOKE | 41032 | 41032-1061 | 72 | ||
| WHEEL-SUB ASSY,RR | 41090 | 41090-1074 | 1 | (OPTION) | |
| WHEEL-SUB ASSY,FR | 41090A | 41090-1076 | 1 | (OPTION) |
| TIRE,RR,100/100-18 59M,K695(D) | |
| REF # | 41002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TIRE,FR,80/100-21 51M,K490(D) | |
| REF # | 41002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-TIRE,80/100-21(D) | |
| REF # | 41022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-TIRE,100/100-18(D) | |
| REF # | 41022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND-RIM,80/100-21(D) | |
| REF # | 41023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND-RIM,100/100-18(D) | |
| REF # | 41023A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STOPPER-RIM,1.60-M(DUNLOP) | |
| REF # | 41024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STOPPER-RIM,1.85-M(DUNLOP) | |
| REF # | 41024A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,RR,1.85X18 | |
| REF # | 41025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,FR,1.60X21 | |
| REF # | 41025A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,FR,229MMX166D | |
| REF # | 41029 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,RR,189MMX160D | |
| REF # | 41029A |
|---|---|
| PART NUMBER | |
| QUANTITY | 36 |
| DESTINATION | |
| REMARKS | |
| SPOKE-OUTER,FR,222MMX166D | |
| REF # | 41030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 27 |
| DESTINATION | |
| REMARKS | |
| NIPPLE-SPOKE | |
| REF # | 41032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 72 |
| DESTINATION | |
| REMARKS | |
| WHEEL-SUB ASSY,RR | |
| REF # | 41090 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| WHEEL-SUB ASSY,FR | |
| REF # | 41090A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
