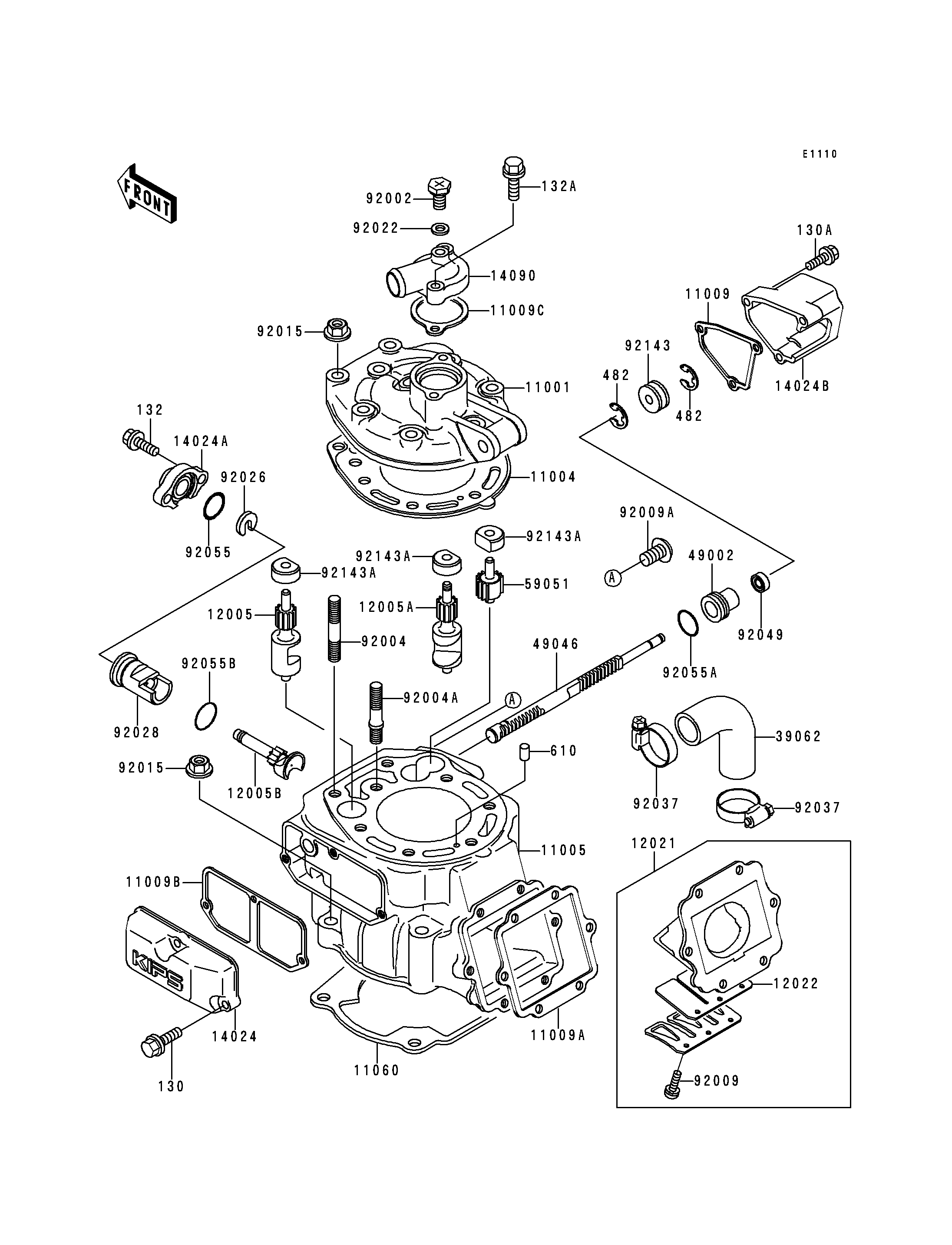

1994 KDX200 - Cylinder Head/Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130A
132
132
11001
11001
11004
11004
11005
11005
11009
11009
11009A
11009A
11009B
11009B
11009C
11009C
11060
11060
12005
12005
12005A
12005A
12005B
12005B
12021
12021
12022
12022
14024
14024
14024A
14024A
14024B
14024B
14090
14090
39062
39062
49002
49002
49046
49046
59051
59051
92002
92002
92004
92004
92004A
92004A
92009
92009
92009A
92009A
92015
92015
92015
92015
92022
92022
92026
92026
92028
92028
92037
92037
92037
92037
92049
92049
92055
92055
92055A
92055A
92055B
92055B
92143
92143
92143A
92143A
92143A
92143A
92143A
92143A
132A
132A
482
482
482
482
610
610
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130G0520 3
BOLT-FLANGED 130A 130G0525 3
BOLT-FLANGED-SMALL 132 132G0620 2
HEAD-CYLINDER 11001 11001-1317 1
GASKET-HEAD 11004 11004-1189 1
CYLINDER-ENGINE 11005 11005-1569 1
GASKET,RH,GOVERNOR 11009 11009-1934 1
GASKET,REED VALVE 11009A 11009-1941 1
GASKET,LH,RESONATOR 11009B 11009-1968 1
GASKET,ELBOW 11009C 11009-1993 1
GASKET,CYLINDER BASE 11060 11060-1659 1
VALVE-EXHAUST,LH 12005 12005-1121 1
VALVE-EXHAUST,RH 12005A 12005-1122 1
VALVE-EXHAUST,CENTER 12005B 12005-1157 1
VALVE-ASSY-REED 12021 12021-1067 1
VALVE-REED 12022 12022-1063 2
COVER,RESONATOR 14024 14024-1565 1
COVER,CENTER VALVE 14024A 14024-1708 1
COVER,GOVERNOR 14024B 14024-1786 1
COVER,THERMOSTAT 14090 14090-1534 1
HOSE-COOLING,PUMP-CYLINDER 39062 39062-1299 1
GUIDE-VALVE 49002 49002-1083 1
ROD-GOVERNOR 49046 49046-1069 1
GEAR-SPUR,IDLE 59051 59051-1206 1
BOLT,6X10 92002 92002-1222 1
STUD,8X35 92004 92004-1009 7
STUD,8X34 92004A 92004-1199 1
SCREW,REED VALVE 92009 92009-1014 6
SCREW,5X10 92009A 92009-1502 1
NUT,8MM 92015 92015-1143 12
WASHER,6.2X11X1 92022 92022-304 1
SPACER 92026 92026-1333 1
BUSHING,CENTER VALVE 92028 92028-1616 1
CLAMP,COOLING HOSE 92037 92037-1589 2
SEAL-OIL,RSO-5.5X11X4 92049 92049-1206 1
RING-O,16.8X2.4 92055 92055-1258 1
RING-O,14.5X1.5 92055A 92055-1399 1
RING-O 92055B 92055-1422 1
COLLAR 92143 92143-1056 1
COLLAR,VALVE 92143A 92143-1147 3
BOLT-FLANGED-SMALL 132A 132G0625 2
CIRCLIP-TYPE-E,4MM 482 482J4000 2
ROLLER,4X8 610 610A0408 1
