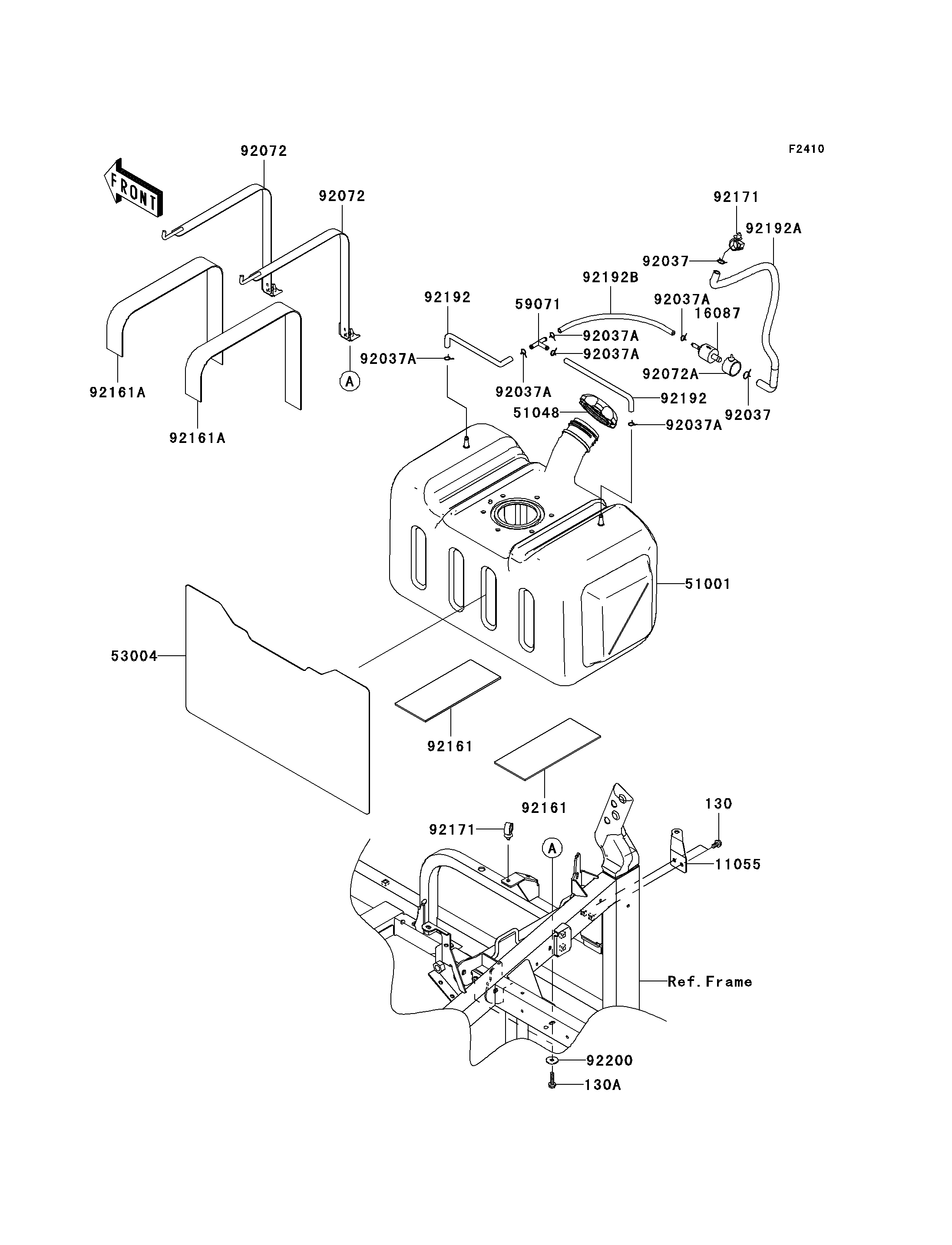

Parts Diagrams |
130
130A
11055
16087
51001
51048
53004
59071
92037
92037
92037A
92037A
92037A
92037A
92037A
92037A
92072
92072
92072A
92161
92161
92161A
92161A
92171
92171
92192
92192
92192A
92192B
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X12 | 130 | 130BA0612 | 2 | ||
| BOLT-FLANGED,6X25 | 130A | 130BA0625 | 2 | ||
| BRACKET,BREATHER TUBE | 11055 | 11055-1554 | 1 | ||
| VALVE-CHECK | 16087 | 16087-0002 | 1 | ||
| TANK-COMP-FUEL | 51001 | 51001-0291 | 1 | ||
| CAP-ASSY-TANK,FUEL | 51048 | 51048-0028 | 1 | ||
| MAT,FUEL TANK | 53004 | 53004-0046 | 1 | ||
| JOINT | 59071 | 59071-3705 | 1 | ||
| CLAMP,HOSE CLIP | 92037 | 92037-1181 | 2 | ||
| CLAMP,TUBE | 92037A | 92037-1461 | 6 | ||
| BAND,FUEL TANK | 92072 | 92072-0132 | 2 | ||
| BAND | 92072A | 92072-1438 | 1 | ||
| DAMPER | 92161 | 92161-0743 | 2 | ||
| DAMPER,FUEL TANK | 92161A | 92161-0794 | 2 | ||
| CLAMP | 92171 | 92171-0453 | 2 | ||
| TUBE,BREATHER | 92192 | 92192-0773 | 2 | ||
| TUBE,BREATHER | 92192A | 92192-0775 | 1 | ||
| TUBE,BREATHER | 92192B | 92192-0814 | 1 | ||
| WASHER,6.5X22X1.6 | 92200 | 92200-1087 | 2 |
