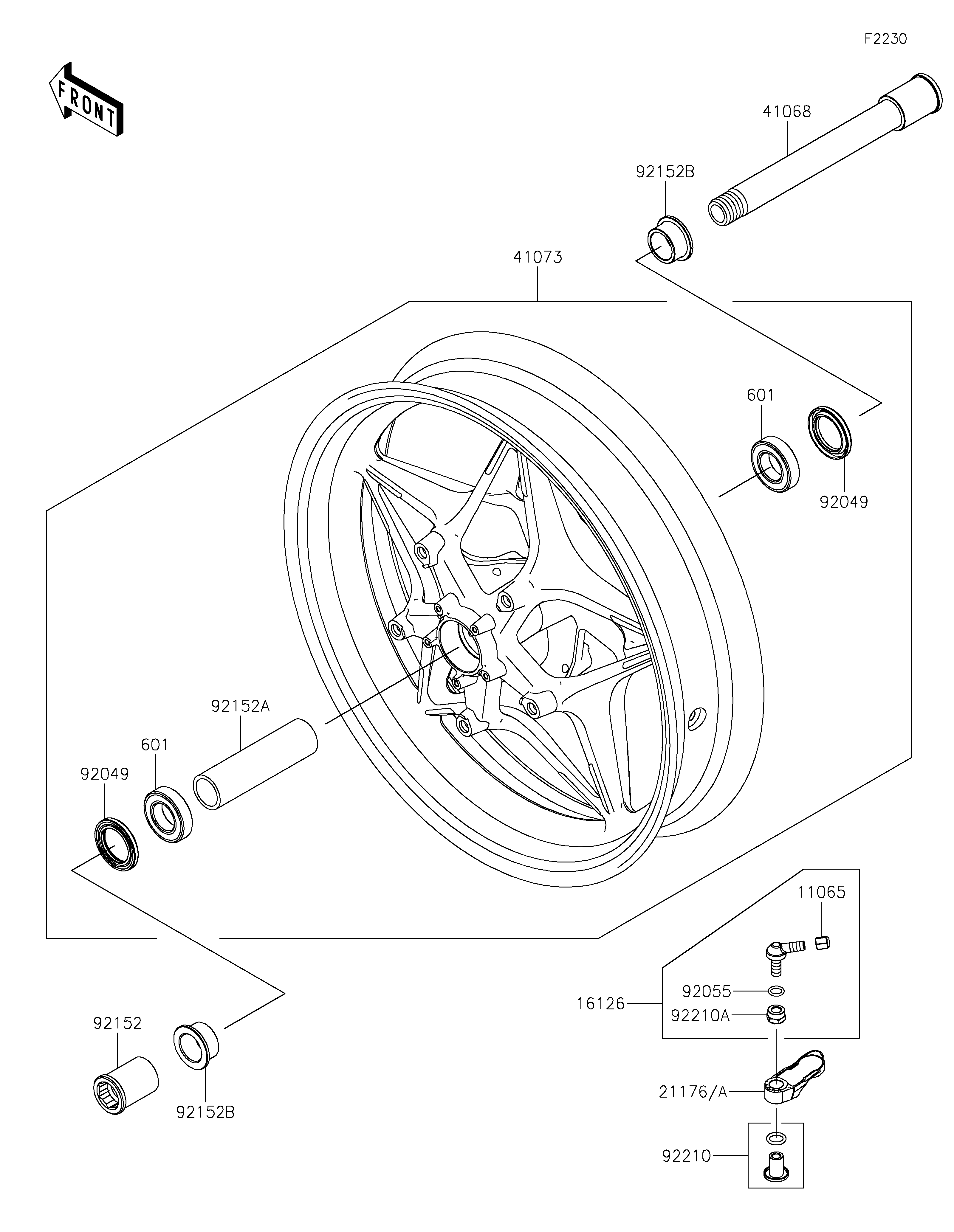

2026 NINJA H2® SX SE ABS - Front Wheel
11065
16126
21176
21176A
41068
41073
92049
92049
92055
92152
92152A
92152B
92152B
92210
92210A
601
601
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11065 | 11065-1433 | 1 | ||
| VALVE,SET | 16126 | 16126-0769 | 1 | ||
| SENSOR,TPMS,315MHZ | 21176 | 21176-1137 | 1 | ||
| SENSOR,TPMS,315MHZ | 21176A | 21176-1303 | 1 | ||
| AXLE,FR,25X205 | 41068 | 41068-0594 | 1 | ||
| WHEEL-ASSY,FR,G.BLACK | 41073 | 41073-0799-60P | 1 | ||
| SEAL-OIL,32X47X5 | 92049 | 92049-0795 | 2 | ||
| RING-O | 92055 | 92055-0997 | 1 | ||
| COLLAR,FR AXLE,LH,L=44.5 | 92152 | 92152-0240 | 1 | ||
| COLLAR,FR HUB,L=115 | 92152A | 92152-0616 | 1 | ||
| COLLAR,FR AXLE,L=18 | 92152B | 92152-2638 | 2 | ||
| NUT | 92210 | 92210-1874 | 1 | ||
| NUT,VALVE | 92210A | 92210-1924 | 1 | ||
| BEARING-BALL,#6005UU | 601 | 601B6005UU | 2 |
| CAP | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE,SET | |
| REF # | 16126 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SENSOR,TPMS,315MHZ | |
| REF # | 21176 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SENSOR,TPMS,315MHZ | |
| REF # | 21176A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE,FR,25X205 | |
| REF # | 41068 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WHEEL-ASSY,FR,G.BLACK | |
| REF # | 41073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,32X47X5 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING-O | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FR AXLE,LH,L=44.5 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FR HUB,L=115 | |
| REF # | 92152A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FR AXLE,L=18 | |
| REF # | 92152B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,VALVE | |
| REF # | 92210A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,#6005UU | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
