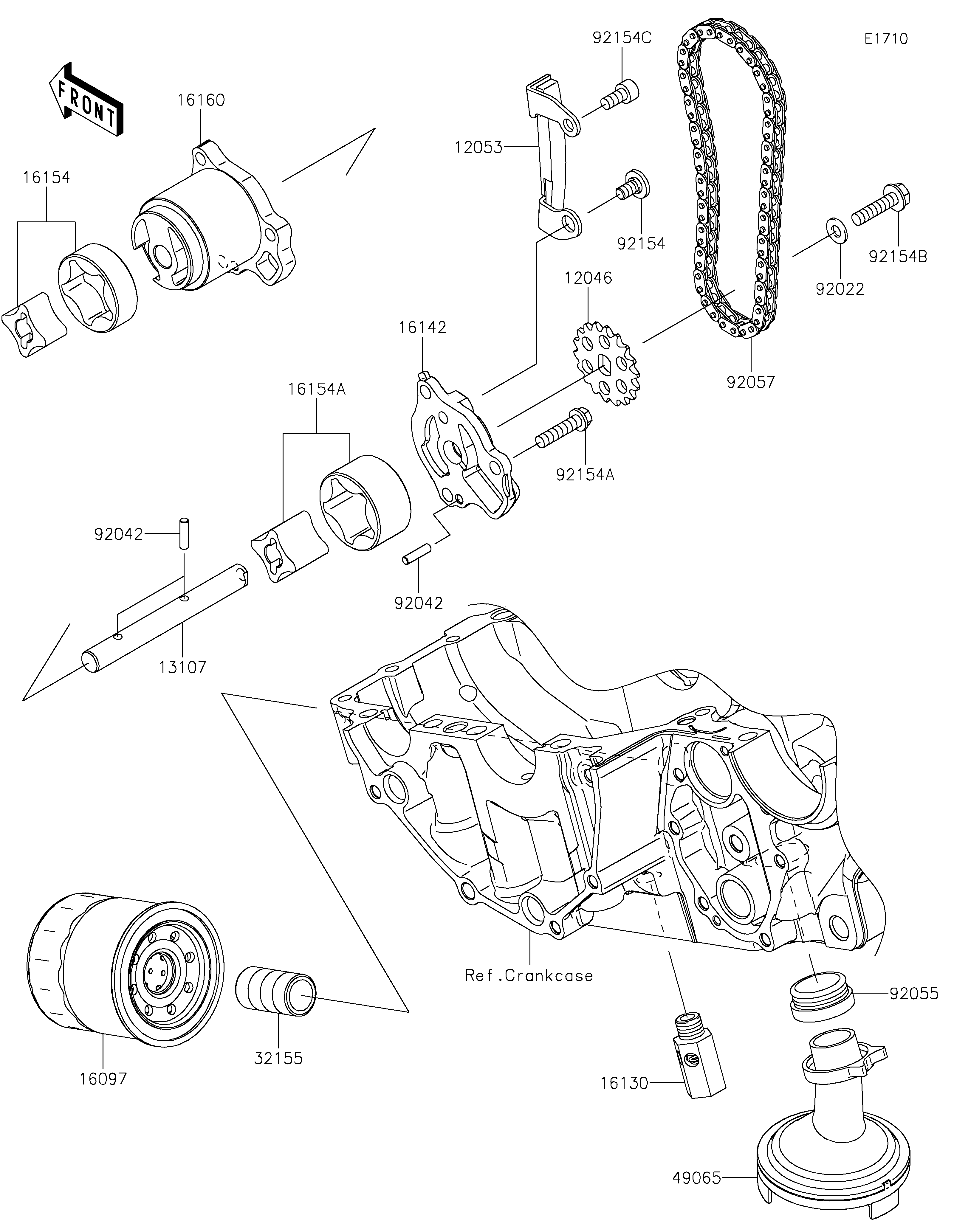

2025 NINJA® 650 KRT EDITION ABS - Oil Pump/Oil Filter
12046
12053
13107
16097
16130
16142
16154
16154A
16160
32155
49065
92022
92042
92042
92055
92057
92154
92154A
92154B
92154C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SPROCKET,18T,BF04M | 12046 | 12046-0040 | 1 | ||
| GUIDE-CHAIN | 12053 | 12053-0071 | 1 | ||
| SHAFT,OIL PUMP | 13107 | 13107-0772 | 1 | ||
| FILTER-ASSY-OIL | 16097 | 16097-0008 | 1 | ||
| VALVE-ASSY-RELIEF | 16130 | 16130-0552 | 1 | ||
| COVER-PUMP | 16142 | 16142-0712 | 1 | ||
| ROTOR-PUMP,L=14 | 16154 | 16154-0037 | 1 | ||
| ROTOR-PUMP,40.56X22 | 16154A | 16154-1115 | 1 | ||
| BODY | 16160 | 16160-0110 | 1 | ||
| PIPE,OIL FILTER | 32155 | 32155-0029 | 1 | ||
| FILTER-OIL | 49065 | 49065-0708 | 1 | ||
| WASHER,6X12.8X1.2 | 92022 | 92022-1827 | 1 | ||
| PIN,DOWEL,4X15.8 | 92042 | 92042-014 | 3 | ||
| RING-O,OIL FILTER | 92055 | 92055-1354 | 1 | ||
| CHAIN,DID 215FD-DHA,56LE | 92057 | 92057-0098 | 1 | ||
| BOLT,SOCKET,6X11 | 92154 | 92154-0188 | 1 | ||
| BOLT,FLANGED,6X25 | 92154A | 92154-0783 | 3 | ||
| BOLT,FLANGED,6X25 | 92154B | 92154-0811 | 1 | ||
| BOLT,SOCKET,6X12 | 92154C | 92154-0812 | 1 |
