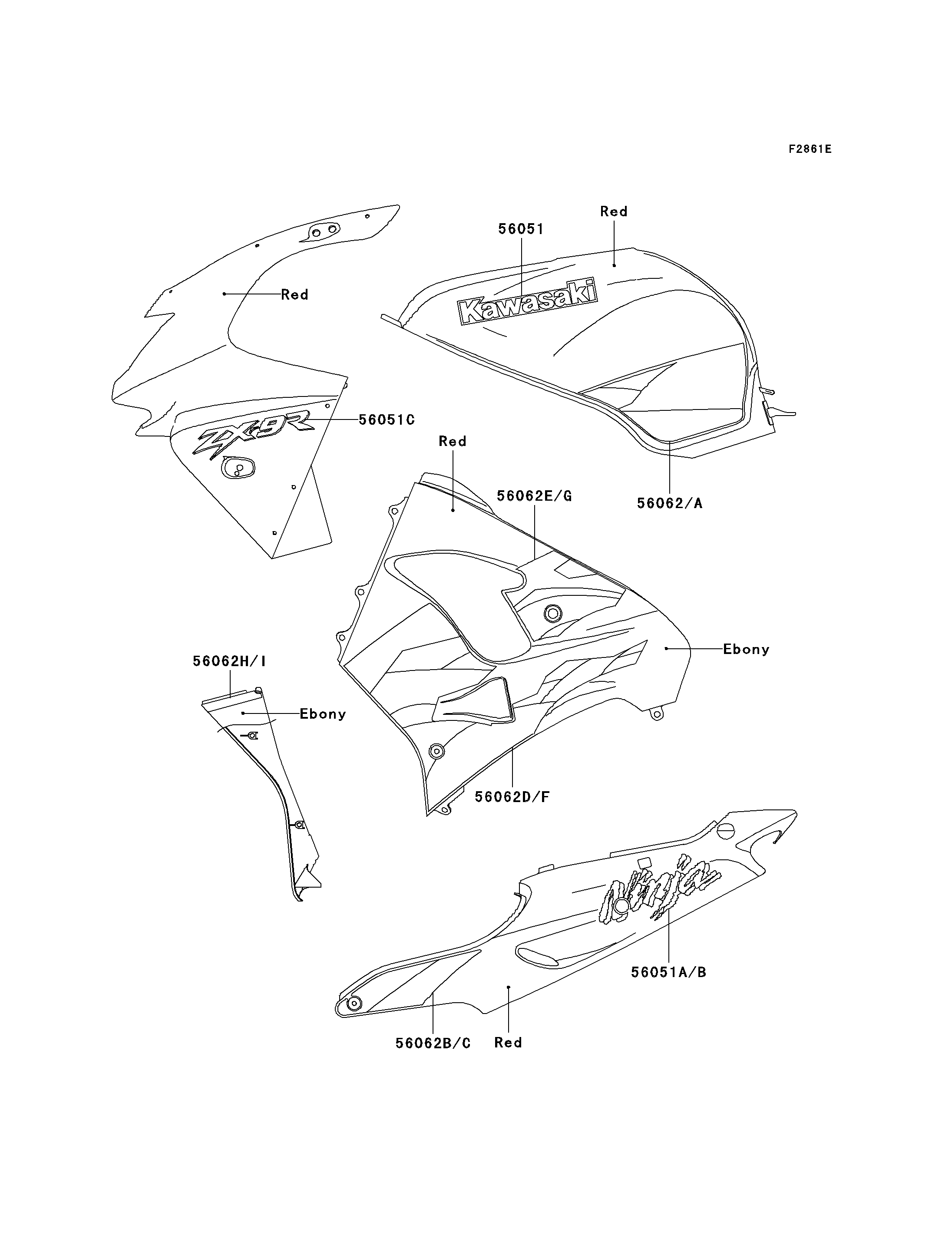

1999 Ninja® ZX™-9R - Decals (Red/Ebony)(ZX900-C2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK,KAWASAKI | 56051 | 56051-1754 | 2 | CN | |
| MARK,SEAT COVER,RH,NINJA | 56051A | 56051-1755 | 1 | CN | |
| MARK,SEAT COVER,LH,NINJA | 56051B | 56051-1772 | 1 | CN | |
| MARK,UPP COWLING,ZX-9R | 56051C | 56051-1961 | 2 | CN | |
| PATTERN,FUEL TANK,LH | 56062 | 56062-1781 | 1 | CN | |
| PATTERN,FUEL TANK,RH | 56062A | 56062-1782 | 1 | CN | |
| PATTERN,SEAT COVER,LH | 56062B | 56062-1783 | 1 | CN | |
| PATTERN,SEAT COVER,RH | 56062C | 56062-1784 | 1 | CN | |
| PATTERN,CNT COWLING,FR,LH | 56062D | 56062-1785 | 1 | CN | |
| PATTERN,CNT COWLING,RR,LH | 56062E | 56062-1786 | 1 | CN | |
| PATTERN,CNT COWLING,FR,RH | 56062F | 56062-1787 | 1 | CN | |
| PATTERN,CNT COWLING,RR,RH | 56062G | 56062-1788 | 1 | CN | |
| PATTERN,FR COWLING,INNER,LH | 56062H | 56062-1889 | 1 | CN | |
| PATTERN,FR COWLING,INNER,RH | 56062I | 56062-1890 | 1 | CN |
| MARK,FUEL TANK,KAWASAKI | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| MARK,SEAT COVER,RH,NINJA | |
| REF # | 56051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,SEAT COVER,LH,NINJA | |
| REF # | 56051B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| MARK,UPP COWLING,ZX-9R | |
| REF # | 56051C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SEAT COVER,LH | |
| REF # | 56062B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,SEAT COVER,RH | |
| REF # | 56062C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,CNT COWLING,FR,LH | |
| REF # | 56062D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,CNT COWLING,RR,LH | |
| REF # | 56062E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,CNT COWLING,FR,RH | |
| REF # | 56062F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,CNT COWLING,RR,RH | |
| REF # | 56062G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FR COWLING,INNER,LH | |
| REF # | 56062H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| PATTERN,FR COWLING,INNER,RH | |
| REF # | 56062I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
