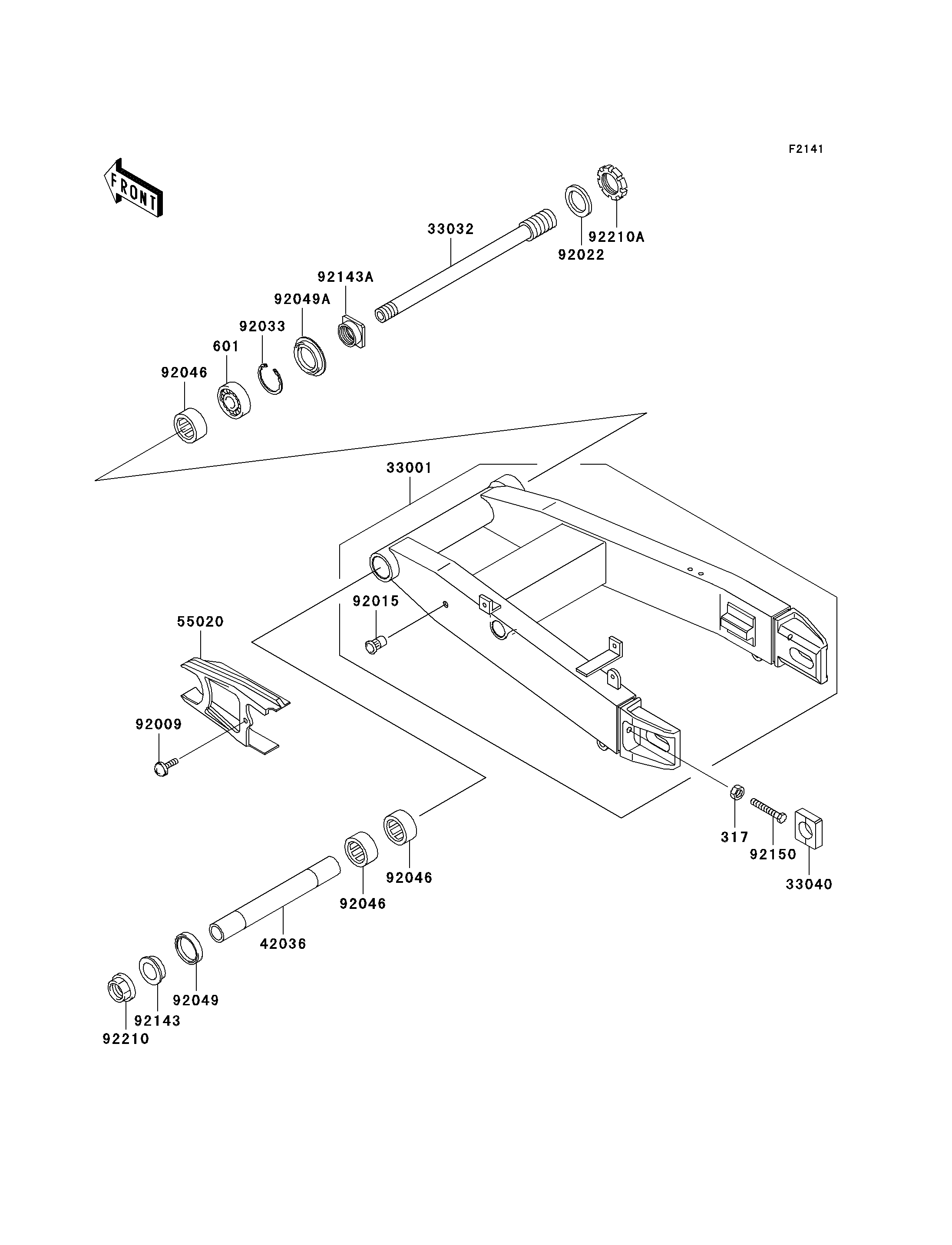

1999 Ninja® ZX™-9R - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
317
601
33001
33032
33040
42036
55020
92009
92015
92022
92033
92046
92046
92046
92049
92049A
92143
92143A
92150
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX-SMALL,8MM 317 317G0800 2
BEARING-BALL,#6004 601 601A6004 1
ARM-COMP-SWING,SILVER 33001 33001-1541-TX 1
SHAFT-SWING ARM 33032 33032-1187 1
ADJUSTER-CHAIN 33040 33040-1109 2
SLEEVE,SWING ARM PIVOT,L=226 42036 42036-1341 1
GUARD,CHAIN 55020 55020-1664 1
SCREW,6X18 92009 92009-1663 1
NUT,POP,6MM,L=16.5 92015 92015-1792 1
WASHER,28.3X42X2.9 92022 92022-1219 1
RING-SNAP,42MM 92033 92033-1041 1
BEARING-NEEDLE,BM2817 92046 92046-1111 3
SEAL-OIL,MHSA25X34X7 92049 92049-1352 1
SEAL-OIL,MHA 35 42 5.7F 92049A 92049-1380 1
COLLAR,SWING ARM,L=12.5 92143 92143-1227 1
COLLAR,SWING ARM PIVOT,RH 92143A 92143-1973 1
BOLT,8X55 92150 92150-1350 2
NUT,FLANGED,20MM 92210 92210-1133 1
NUT,STEERING STEM,28MM 92210A 92210-1140 1
