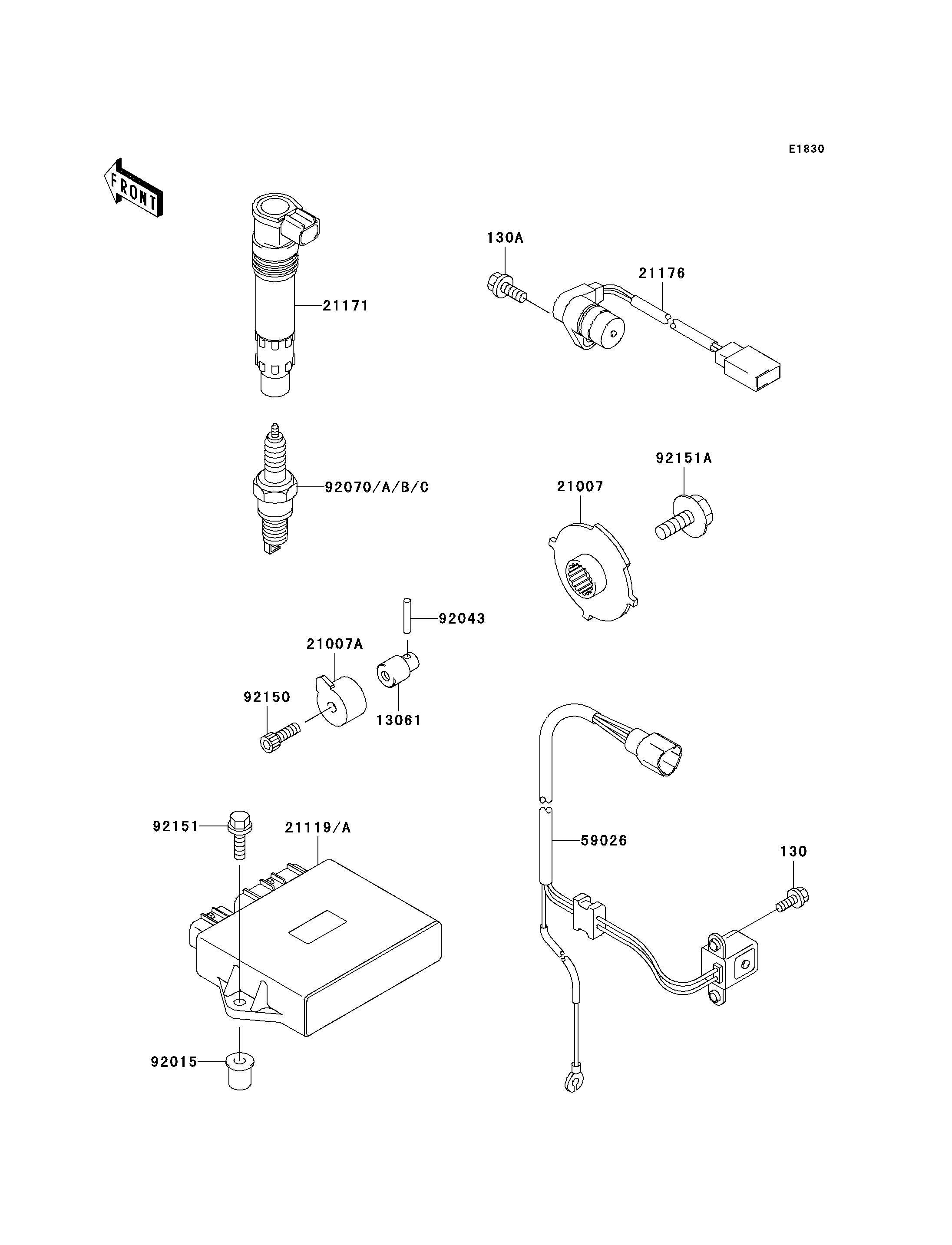

1999 Ninja® ZX™-9R - Ignition System

DOWNLOAD PDF
SELECT A NEW PART
130
130A
13061
21007
21007A
21171
21176
59026
92015
92043
92070
92070A
92070B
92070C
92150
92151
92151A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130G0512 2
BOLT-FLANGED,6X16 130A 130G0616 1
BOSS,CAM SENSOR 13061 13061-1687 1
ROTOR,PULSING 21007 21007-1325 1
ROTOR,CAM SENSOR 21007A 21007-1336 1
COIL-ASSY-IGNITION 21171 21171-1265 4
SENSOR 21176 21176-1077 1
COIL-PULSING 59026 59026-1142 1
NUT 92015 92015-1700 2
PIN,CAM SENSOR 92043 92043-1575 1
PLUG-SPARK,CR9EK(NGK) 92070 92070-1145 4
PLUG-SPARK,CR8EK(NGK) 92070A 92070-1158 4 (OPTION)
PLUG-SPARK,U27ETR(ND) 92070B 4 (LOCAL PROCUREMENT ITEM)
PLUG-SPARK,U24ETR(ND) 92070C 4 (OPTION)
BOLT,6X18 92150 92150-1645 1
BOLT,6X20 92151 92151-1226 2
BOLT,8X23 92151A 92151-1308 1
IGNITER 21119 21119-1504 1 CNUS
IGNITER 21119A 21119-1505 1 CA
