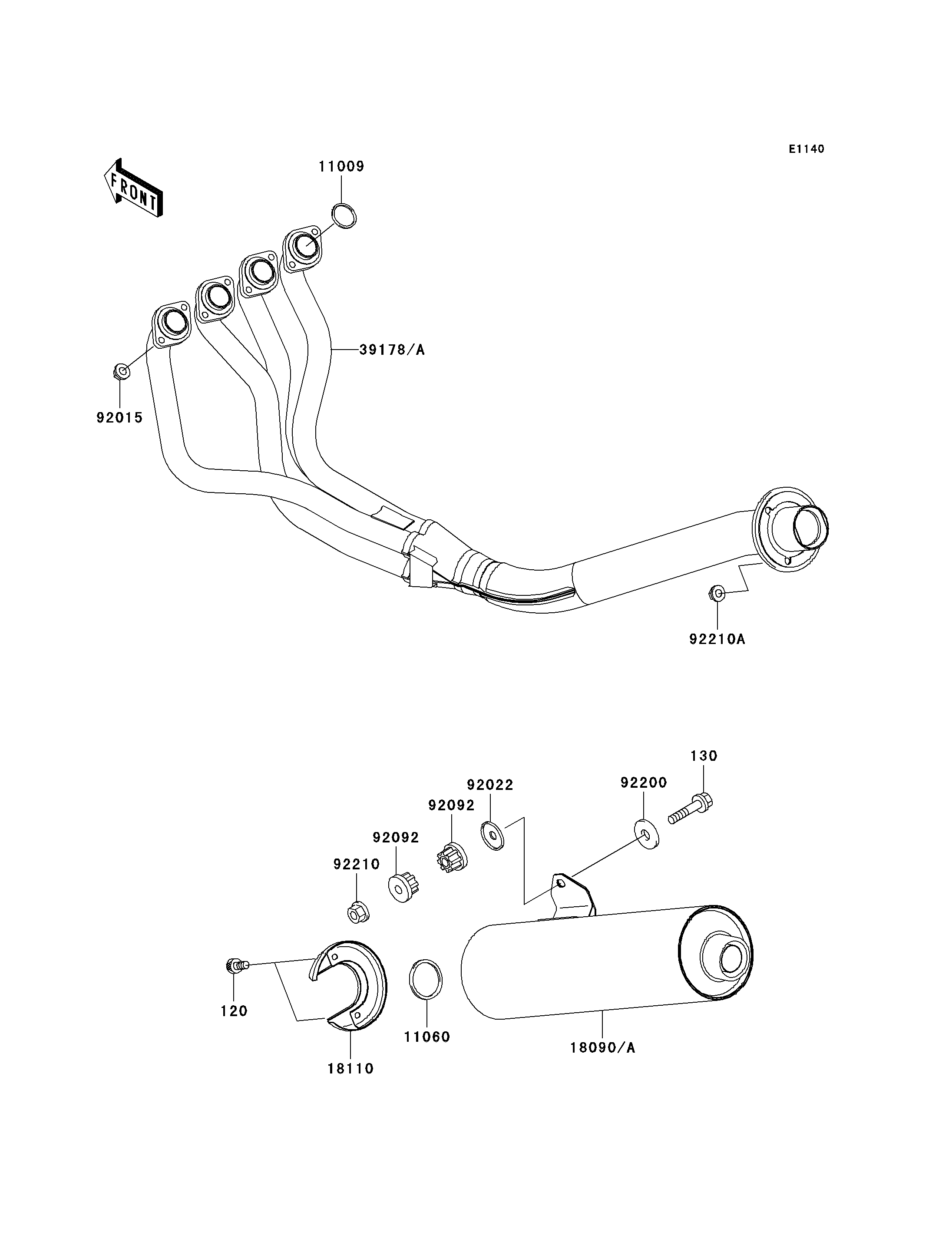

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET | 120 | 120R0610 | 2 | ||
| BOLT-FLANGED | 130 | 130R1060 | 1 | ||
| GASKET,EXHAUST PIPE HOLDER | 11009 | 11009-1856 | 4 | ||
| GASKET,MUFFLER CONNECTING | 11060 | 11060-1213 | 1 | ||
| BODY END-MUFFLER | 18110 | 18110-1135 | 1 | ||
| NUT,8MM | 92015 | 92015-1402 | 8 | ||
| WASHER | 92022 | 92022-289 | 1 | ||
| BUSHING-RUBBER,MUFFLER | 92092 | 92092-1013 | 2 | ||
| WASHER,10.5X25X2.0 | 92200 | 92200-1377 | 1 | ||
| NUT,10MM | 92210 | 92210-1102 | 1 | ||
| NUT,8MM | 92210A | 92210-1114 | 3 | ||
| BODY-COMP-MUFFLER | 18090 | 18090-1641 | 1 | CA | |
| BODY-COMP-MUFFLER | 18090A | 18090-1660 | 1 | CNUS | |
| MANIFOLD-COMP-EXHAUST | 39178 | 39178-1276 | 1 | CNUS | |
| MANIFOLD-COMP-EXHAUST | 39178A | 39178-1280 | 1 | CA |
| BOLT-SOCKET | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST PIPE HOLDER | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GASKET,MUFFLER CONNECTING | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY END-MUFFLER | |
| REF # | 18110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING-RUBBER,MUFFLER | |
| REF # | 92092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.5X25X2.0 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,10MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92210A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BODY-COMP-MUFFLER | |
| REF # | 18090 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BODY-COMP-MUFFLER | |
| REF # | 18090A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CNUS |
| REMARKS | |
| MANIFOLD-COMP-EXHAUST | |
| REF # | 39178 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CNUS |
| REMARKS | |
| MANIFOLD-COMP-EXHAUST | |
| REF # | 39178A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
