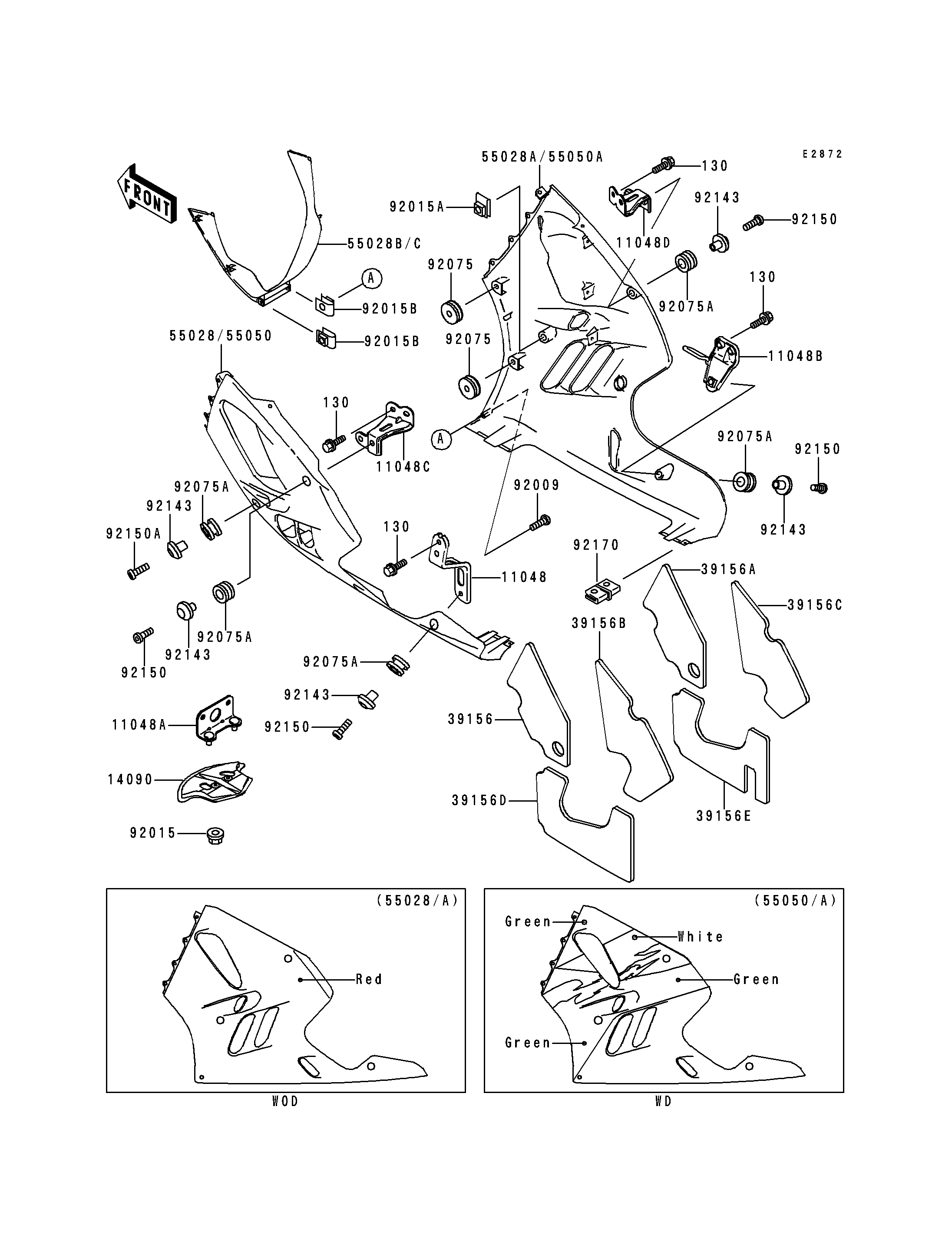

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X16,BLACK | 130 | 130J0616 | 8 | ||
| BRACKET,LWR COWLING,LH,LWR | 11048 | 11048-1310 | 1 | ||
| BRACKET,UNDER BRACKET | 11048A | 11048-1411 | 1 | ||
| BRACKET,LWR COWLNG,RH,LWR | 11048B | 11048-1421 | 1 | ||
| BRACKET,LWR COWLING,LH,UPP | 11048C | 11048-1681 | 1 | ||
| BRACKET,LWR COWLING,RH,UPP | 11048D | 11048-1682 | 1 | ||
| COVER,UNDER BRACKET | 14090 | 14090-1388 | 1 | ||
| PAD,LWR COWLING,LH,FR | 39156 | 39156-1402 | 1 | ||
| PAD,LWR COWLING,RH,FR | 39156A | 39156-1403 | 1 | ||
| PAD,LWR COWLING,LH,RR | 39156B | 39156-1404 | 1 | ||
| PAD,LWR COWLING,RH,RR | 39156C | 39156-1405 | 1 | ||
| PAD,LWR COWLING,LH,LWR | 39156D | 39156-1406 | 1 | ||
| PAD,LWR COWLING,RH,LWR | 39156E | 39156-1468 | 1 | ||
| COWLING,LWR,LH,F.RED | 55028 | 55028-1315-B1 | 1 | ||
| COWLING,LWR,RH,F.RED | 55028A | 55028-1316-B1 | 1 | ||
| COWLING,LWR,FR.F.RED | 55028B | 55028-1317-B1 | 1 | ||
| COWLING,LWR,FR,L.GREEN | 55028C | 55028-1317-7F | 1 | ||
| COWLING-ASSY.,LWR,LH,C.GREEN | 55050 | 55050-5026-2Y | 1 | ||
| COWLING-ASSY.,LWR,RH,C.GREEN | 55050A | 55050-5027-2Y | 1 | ||
| SCREW,5X16 | 92009 | 92009-1654 | 2 | ||
| NUT,CAP,6MM,BLACK | 92015 | 92015-1170 | 2 | ||
| NUT | 92015A | 92015-1487 | 2 | ||
| NUT,5MM | 92015B | 92015-1798 | 2 | ||
| DAMPER | 92075 | 92075-1067 | 4 | ||
| DAMPER | 92075A | 92075-1634 | 6 | ||
| COLLAR,BLACK | 92143 | 92143-1226 | 6 | ||
| BOLT,SOCKET,6X18 | 92150 | 92150-1553 | 4 | ||
| BOLT,SOCKET,6X30 | 92150A | 92150-1554 | 2 | ||
| CLAMP | 92170 | 92170-1230 | 1 |
