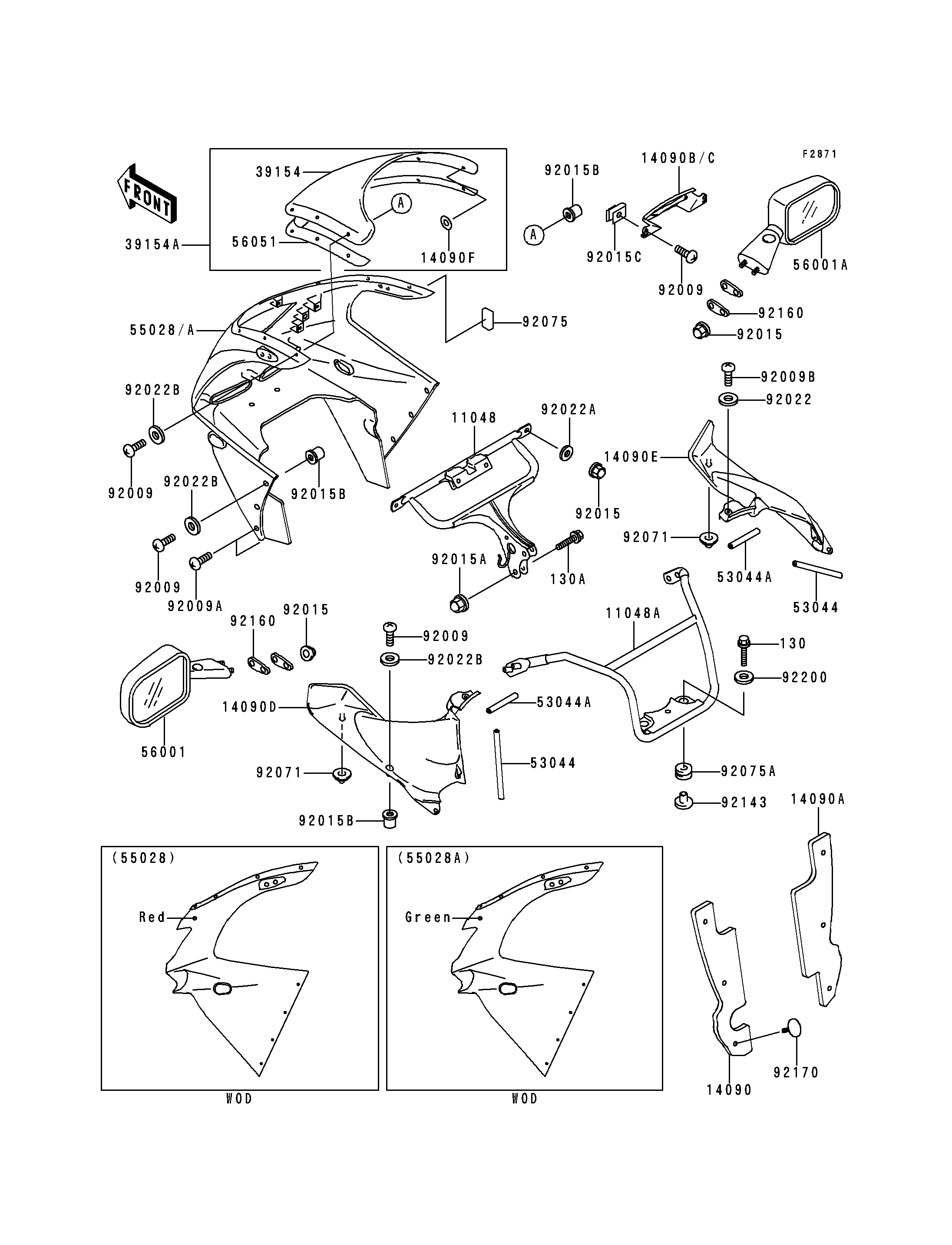

1997 Ninja® ZX™-9R - Cowling

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,UPP COWLING 11048 11048-1847 1
BRACKET,MIRROR 11048A 11048-1961 1
COVER,HEAT GUARD,LH 14090 14090-1385 1
COVER,HEAT GUARD,RH 14090A 14090-1386 1
COVER,POSITION LAMP,F.RED 14090B 14090-1404-B1 1
COVER,POSITION LAMP,L.GREEN 14090C 14090-1404-7F 1
COVER,INNER COWLING,LH,GRAY 14090D 14090-1499-11 1
COVER,INNER COWLING,RH,GRAY 14090E 14090-1500-11 1
COVER 14090F 14090-1505 8
WINDSHIELD 39154 39154-1124 1
WINDSHIELD 39154A 39154-5005 1
TRIM 53044 53044-1137 2
TRIM,L=75 53044A 53044-1279 2
COWLING,UPP,F.RED 55028 55028-1314-B1 1
COWLING,UPP,L.GREEN 55028A 55028-1314-7F 1
MIRROR-ASSY,LH,BLACK 56001 56001-1441-10 1
MIRROR-ASSY,RH,BLACK 56001A 56001-1442-10 1
MARK,WINDSHIELD 56051 56051-1115 1
SCREW,5X16 92009 92009-1654 20
SCREW,5X20 92009A 92009-1656 4
SCREW,6X14 92009B 92009-1662 2
NUT,CAP,6MM,BLACK 92015 92015-1170 6
NUT,CAP,8MM,BLACK 92015A 92015-1174 2
NUT,WELL,5MM 92015B 92015-1757 22
NUT,5MM 92015C 92015-1798 2
WASHER,6.5X16X1 92022 92022-1143 2
WASHER,7X16X1.2 92022A 92022-1344 2
WASHER,NYLON,5.3X11.5X1.5 92022B 92022-1521 18
GROMMET 92071 92071-1222 2
DAMPER 92075 92075-1902 2
DAMPER 92075A 92075-209 2
COLLAR 92143 92143-1515 2
DAMPER,MIRROR 92160 92160-1089 4
BOLT-FLANGED,6X30,BLACK 130 130J0630 2
BOLT-FLANGED,8X30 130A 130J0830 2
CLAMP 92170 92170-1442 6
WASHER,6.5X22X1.6 92200 92200-1087 2
