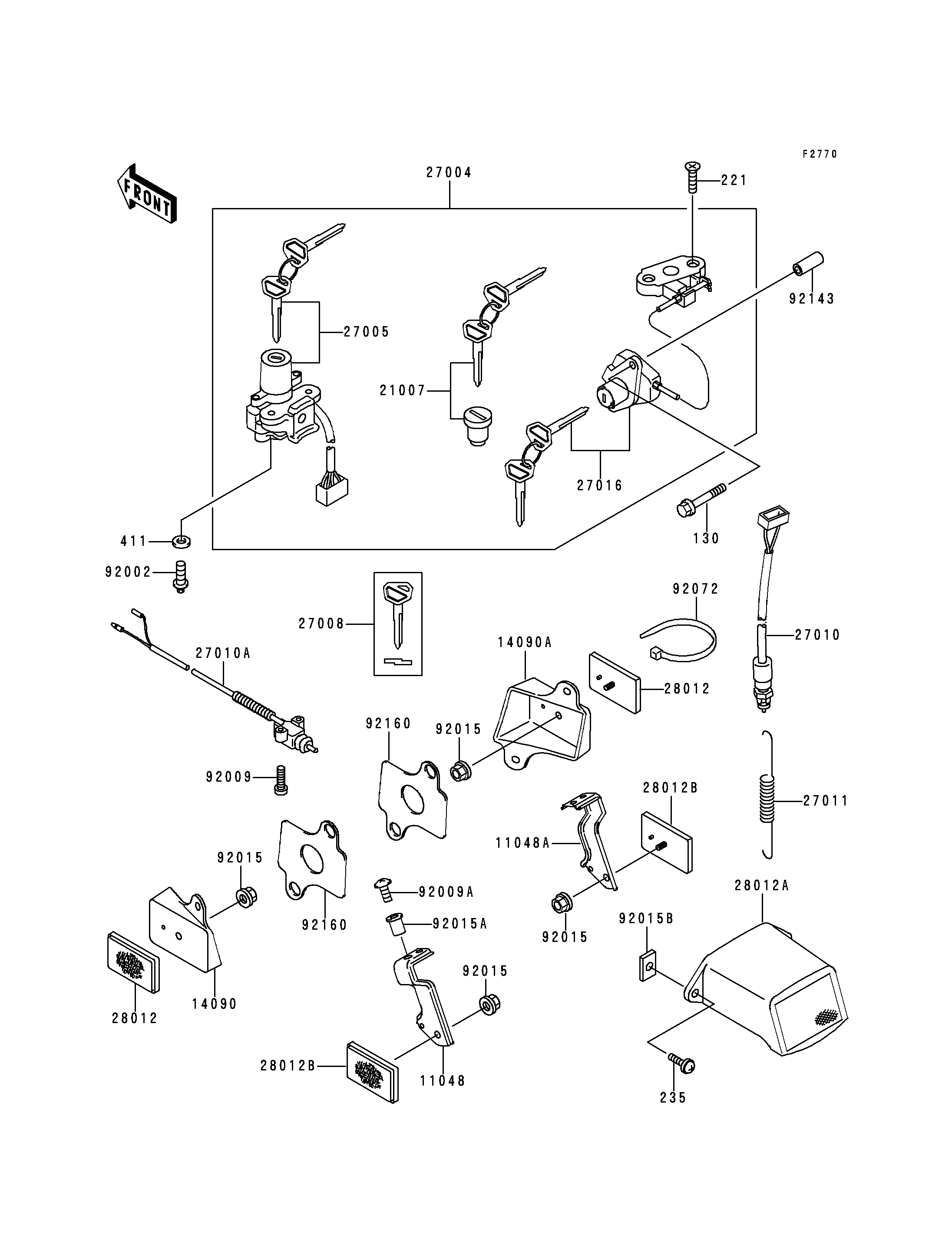

1997 Ninja® ZX™-9R - Ignition Switch/Locks/Reflectors
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X55,BLACK | 130 | 130J0655 | 2 | ||
| SCREW-CSK-CROS,6X28 | 221 | 221B0628 | 2 | ||
| SCREW-PAN-WP-CROS | 235 | 235C0620 | 2 | ||
| WASHER-PLAIN,6MM | 411 | 411E0600 | 2 | ||
| BRACKET,REFLECTOR,RR,LH | 11048 | 11048-1783 | 1 | ||
| BRACKET,REFLECTOR,RR,RH | 11048A | 11048-1784 | 1 | ||
| COVER,REFLECTOR,FR,LH | 14090 | 14090-1377 | 1 | ||
| COVER,REFLECTOR,FR,RH | 14090A | 14090-1378 | 1 | ||
| ROTOR,LOCK,TANK CAP | 21007 | 21007-5035 | 1 | ||
| SWITCH-ASSY | 27004 | 27004-5473 | 1 | ||
| SWITCH-ASSY-IGNITION | 27005 | 27005-1180 | 1 | ||
| KEY-LOCK,BLANK | 27008 | 27008-1170 | 1 | (OPTION) | |
| SWITCH,BRAKE LAMP | 27010 | 27010-1093 | 1 | ||
| SWITCH,SIDE STAND | 27010A | 27010-1223 | 1 | ||
| SPRING,BRAKE LAMP SWITCH | 27011 | 27011-017 | 1 | ||
| LOCK-ASSY,SEAT | 27016 | 27016-5219 | 1 | ||
| REFLECTOR-REFLEX | 28012 | 28012-1003 | 2 | ||
| REFLECTOR-REFLEX,RR | 28012A | 28012-1066 | 1 | ||
| REFLECTOR-REFLEX,RR | 28012B | 28012-1078 | 2 | ||
| BOLT,TORX,6X16 | 92002 | 92002-1333 | 2 | ||
| SCREW,5X20 | 92009 | 92009-1459 | 2 | ||
| SCREW,5X16 | 92009A | 92009-1654 | 2 | ||
| NUT,FLANGED,5MM | 92015 | 92015-1259 | 4 | ||
| NUT,WELL,5MM | 92015A | 92015-1757 | 2 | ||
| NUT | 92015B | 92015-1918 | 2 | ||
| BAND,L=185 | 92072 | 92072-1195 | 1 | ||
| COLLAR,6.8X10X42 | 92143 | 92143-1072 | 2 | ||
| DAMPER,REFLECTOR | 92160 | 92160-1486 | 2 |
