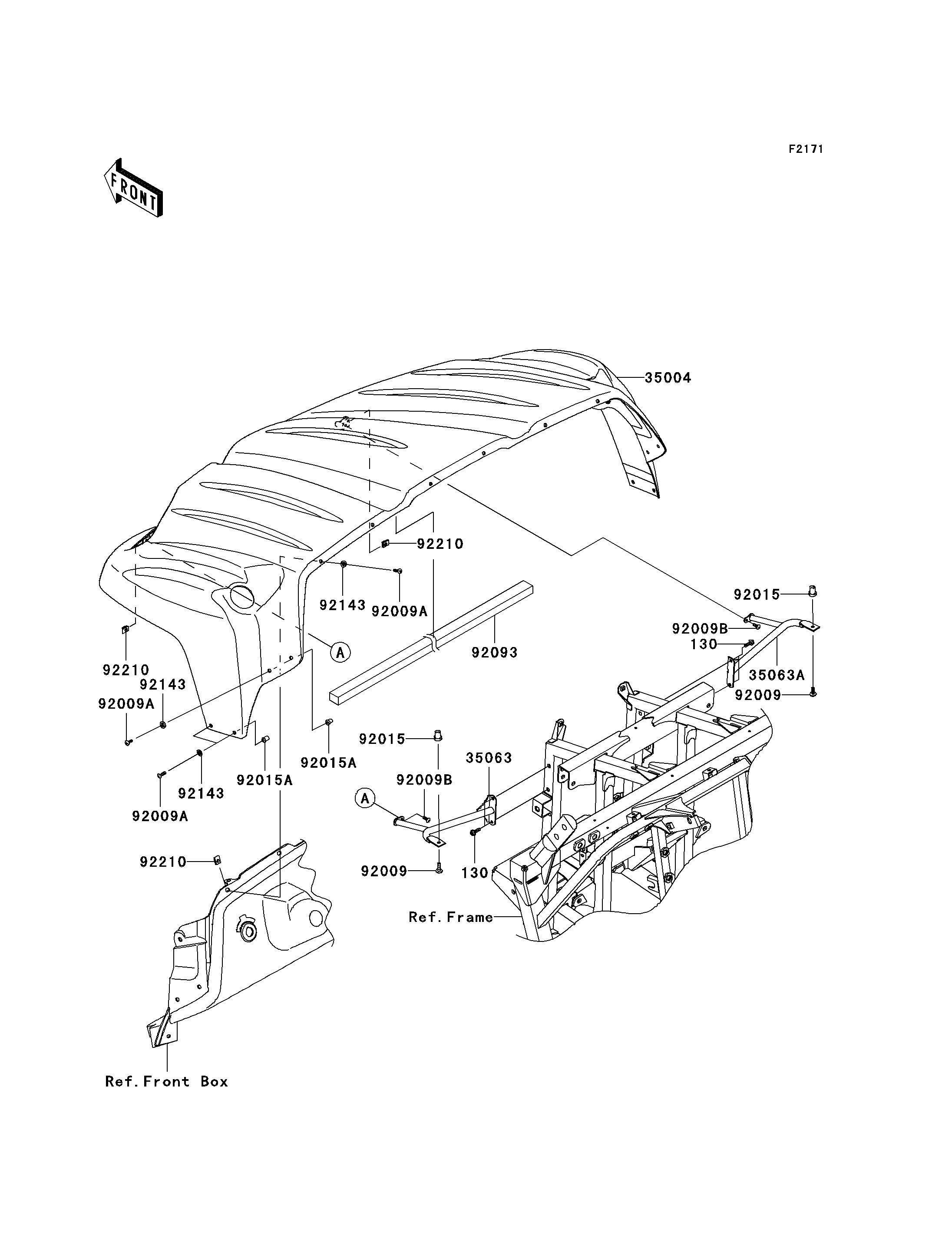

2009 Teryx® 750 FI 4x4 LE - Front Fender(s)
130
130
35004
35063
35063A
92009
92009
92009A
92009A
92009A
92009B
92009B
92015
92015
92015A
92015A
92093
92143
92143
92143
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X20 | 130 | 130CA0620 | 4 | ||
| FENDER-FRONT,C.H.GREEN | 35004 | 35004-0077-826 | 1 | ||
| STAY,FRONT FENDER,LH | 35063 | 35063-0420 | 1 | ||
| STAY,FRONT FENDER,RH | 35063A | 35063-0421 | 1 | ||
| SCREW,6X22,BLACK | 92009 | 92009-1256 | 2 | ||
| SCREW,5X20,BLACK | 92009A | 92009-1656 | 14 | ||
| SCREW,5X16 | 92009B | 92009-3797 | 2 | ||
| NUT,RUBBER,6MM | 92015 | 92015-1692 | 2 | ||
| NUT,WELL,5MM | 92015A | 92015-1757 | 8 | ||
| SEAL | 92093 | 92093-0141 | 1 | ||
| COLLAR | 92143 | 92143-1087 | 14 | ||
| NUT,5MM | 92210 | 92210-0499 | 8 |
| BOLT-FLANGED,6X20 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| FENDER-FRONT,C.H.GREEN | |
| REF # | 35004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,FRONT FENDER,LH | |
| REF # | 35063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,FRONT FENDER,RH | |
| REF # | 35063A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X22,BLACK | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X20,BLACK | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 14 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X16 | |
| REF # | 92009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,RUBBER,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,WELL,5MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SEAL | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 14 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
