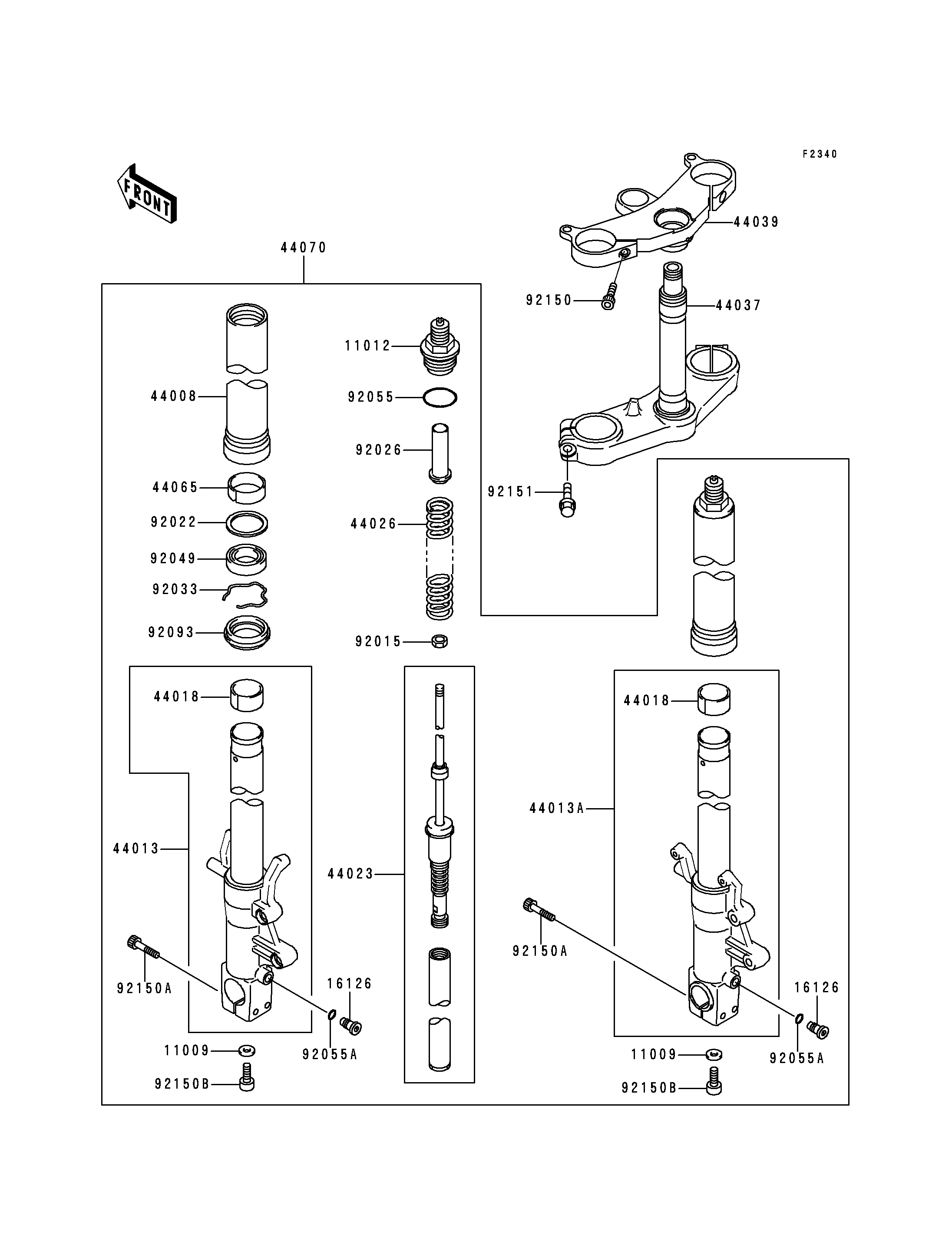

1997 Ninja® ZX™-9R - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER BOLT 11009 11009-1127 2
CAP,FORK TOP 11012 11012-1748 2
VALVE,FORK 16126 16126-1261 2
PIPE-FORK OUTER,BRONZE 44008 44008-1032-JS 2
PIPE-FORK INNER,LH,G.GRAY 44013 44013-1420-GD 1
PIPE-FORK INNER,RH,G.GRAY 44013A 44013-1421-GD 1
PISTON-FORK 44018 44018-1054 2
CYLINDER-COMP-FORK 44023 44023-1094 2
SPRING-FRONT FORK 44026 44026-1605 2
HOLDER-FORK UNDER 44037 44037-1318 1
HOLDER-FORK UPPER 44039 44039-1245 1
BUSHING-FRONT FORK,FORK OUTER 44065 44065-1096 2
DAMPER-ASSY,FORK,G.GRAY 44070 44070-1477-GD 1
NUT 92015 92015-1795 2
WASHER,FORK OUTER TUBE 92022 92022-1298 2
SPACER,FORK 92026 92026-1471 2
RING-SNAP 92033 92033-1036 2
SEAL-OIL,FORK OUTER TUBE 92049 92049-1356 2
RING-O 92055 92055-1115 2
RING-O,ANTI-DIVE UNIT 92055A 92055-1201 2
SEAL,FORK OUTER TUBE 92093 92093-1359 2
BOLT,SOCKET,8X25 92150 92150-1172 2
BOLT,SOCKET,8X40 92150A 92150-1194 4
BOLT,12X22 92150B 92150-1398 2
BOLT,FLANGED,10X40 92151 92151-1171 2
