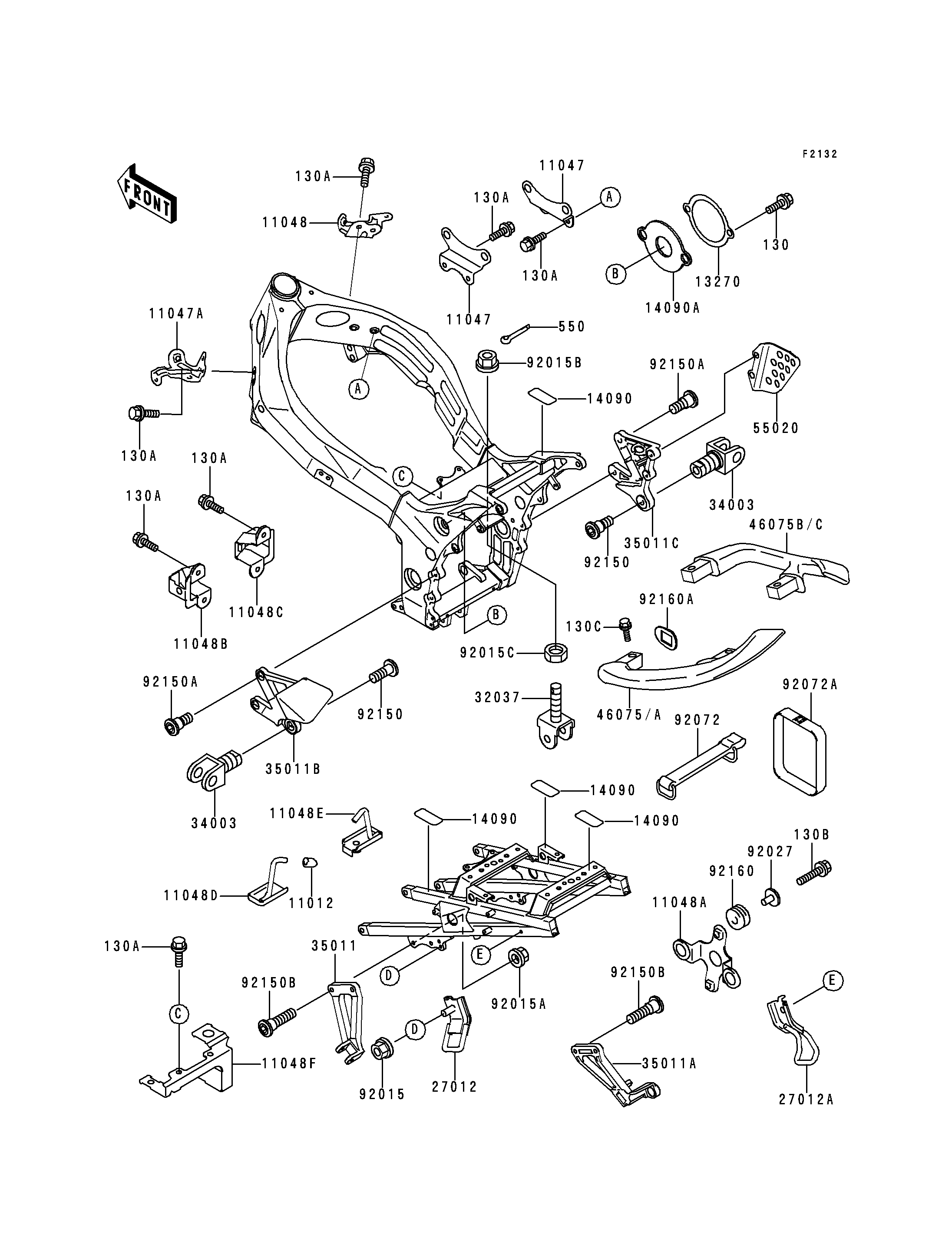

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED | 130 | 130J0610 | 2 | ||
| BOLT-FLANGED,6X16,BLACK | 130A | 130J0616 | 14 | ||
| CAP,BUNGEE CORD HOOK | 11012 | 11012-1589 | 2 | ||
| BRACKET,IGNITION COIL | 11047 | 11047-1345 | 2 | ||
| BRACKET,RADIATOR,LH | 11047A | 11047-1853 | 1 | ||
| BRACKET,RADIATOR,RH | 11048 | 11048-1357 | 1 | ||
| BRACKET,IGNITER | 11048A | 11048-1683 | 1 | ||
| BRACKET,LWR COWLING,LH | 11048B | 11048-1777 | 1 | ||
| BRACKET,LWR COWLING,RH | 11048C | 11048-1780 | 1 | ||
| BRACKET,HELMET HOOK,LH | 11048D | 11048-1793 | 1 | ||
| BRACKET,HELMET HOOK,RH | 11048E | 11048-1795 | 1 | ||
| BRACKET,FUEL PUMP&FILTER | 11048F | 11048-1796 | 1 | ||
| PLATE,FUEL TAP KNOB | 13270 | 13270-1171 | 1 | ||
| COVER | 14090 | 14090-1297 | 8 | ||
| COVER,FUEL TAP KNOB | 14090A | 14090-1410 | 1 | ||
| HOOK,BUNGEE CORD,FR | 27012 | 27012-1474 | 2 | ||
| HOOK,BUNGEE CORD,RR | 27012A | 27012-1475 | 2 | ||
| BRACKET-SHOCKABSORBER | 32037 | 32037-1657 | 1 | ||
| HOLDER-STEP | 34003 | 34003-1327 | 2 | ||
| STAY,RR,LH,G.GRAY | 35011 | 35011-1667-GD | 1 | ||
| STAY,RR,RH,G.GRAY | 35011A | 35011-1668-GD | 1 | ||
| STAY,FR,LH,G.GRAY | 35011B | 35011-1699-GD | 1 | ||
| STAY,FR,RH,G.GRAY | 35011C | 35011-1700-GD | 1 | ||
| GRIP,RR,LH,F.RED | 46075 | 46075-1126-B1 | 1 | ||
| GRIP,RR,LH,P.A.WHITE | 46075A | 46075-1126-R1 | 1 | ||
| GRIP,RR,RH,F.RED | 46075B | 46075-1127-B1 | 1 | ||
| GRIP,RR,RH,P.A.WHITE | 46075C | 46075-1127-R1 | 1 | ||
| GUARD,RR MASTER CYLINDER | 55020 | 55020-1502 | 1 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 2 | ||
| NUT,FLANGED,8MM | 92015A | 92015-1406 | 4 | ||
| NUT,FLANGED,16MM | 92015B | 92015-1881 | 1 | ||
| NUT,16MM | 92015C | 92015-1953 | 1 | ||
| COLLAR,L=14.1 | 92027 | 92027-1920 | 2 | ||
| BAND,BATTERY | 92072 | 92072-1306 | 1 | ||
| BAND,BATTERY,L=450 | 92072A | 92072-1309 | 1 | ||
| BOLT,SOCKET,10X25 | 92150 | 92150-1268 | 2 | ||
| BOLT,SOCKET,8X20 | 92150A | 92150-1839 | 4 | ||
| BOLT,SOCKET,8X30 | 92150B | 92150-1843 | 4 | ||
| DAMPER | 92160 | 92160-1162 | 2 | ||
| DAMPER | 92160A | 92160-1768 | 4 | ||
| BOLT-FLANGED,6X25 | 130B | 130J0625 | 2 | ||
| BOLT-FLANGED,8X30 | 130C | 130J0830 | 4 | ||
| PIN-COTTER,4.0X25 | 550 | 550D4025 | 1 |
| BOLT-FLANGED | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X16,BLACK | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 14 |
| DESTINATION | |
| REMARKS | |
| CAP,BUNGEE CORD HOOK | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET,IGNITION COIL | |
| REF # | 11047 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET,RADIATOR,LH | |
| REF # | 11047A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,RADIATOR,RH | |
| REF # | 11048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,IGNITER | |
| REF # | 11048A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,LWR COWLING,LH | |
| REF # | 11048B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,LWR COWLING,RH | |
| REF # | 11048C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,HELMET HOOK,LH | |
| REF # | 11048D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,HELMET HOOK,RH | |
| REF # | 11048E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,FUEL PUMP&FILTER | |
| REF # | 11048F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,FUEL TAP KNOB | |
| REF # | 13270 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER | |
| REF # | 14090 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| COVER,FUEL TAP KNOB | |
| REF # | 14090A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOOK,BUNGEE CORD,FR | |
| REF # | 27012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HOOK,BUNGEE CORD,RR | |
| REF # | 27012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET-SHOCKABSORBER | |
| REF # | 32037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-STEP | |
| REF # | 34003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| STAY,RR,LH,G.GRAY | |
| REF # | 35011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,RR,RH,G.GRAY | |
| REF # | 35011A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,FR,LH,G.GRAY | |
| REF # | 35011B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,FR,RH,G.GRAY | |
| REF # | 35011C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP,RR,LH,F.RED | |
| REF # | 46075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP,RR,LH,P.A.WHITE | |
| REF # | 46075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP,RR,RH,F.RED | |
| REF # | 46075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP,RR,RH,P.A.WHITE | |
| REF # | 46075C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,RR MASTER CYLINDER | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,8MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,16MM | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,16MM | |
| REF # | 92015C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=14.1 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND,BATTERY | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,BATTERY,L=450 | |
| REF # | 92072A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,10X25 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X20 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X30 | |
| REF # | 92150B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X25 | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X30 | |
| REF # | 130C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PIN-COTTER,4.0X25 | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
