Parts Diagrams |

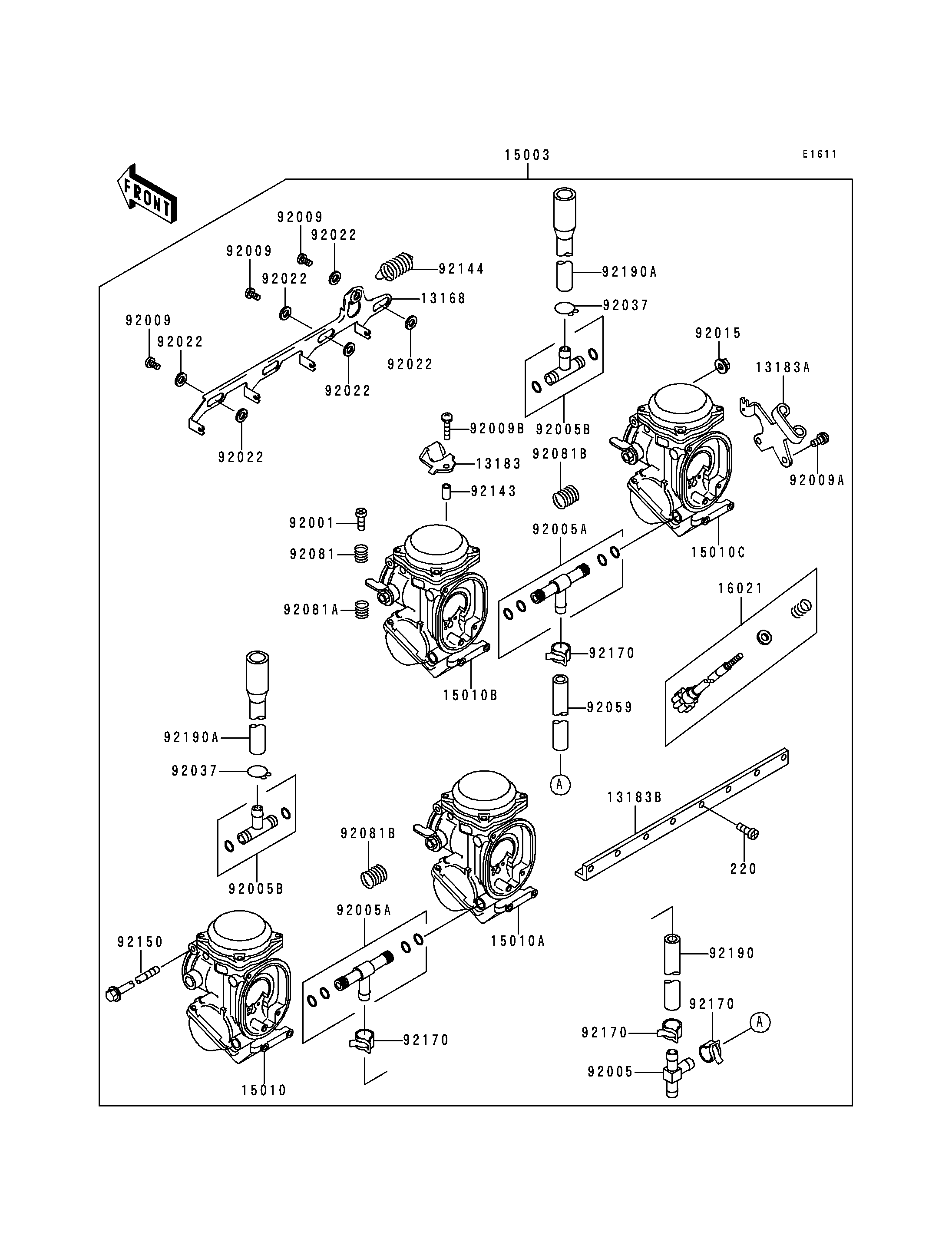

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW-PAN-CROS,5X14 | 220 | 220D0514 | 8 | ||
| LEVER,STARTER | 13168 | 13168-1483 | 1 | ||
| PLATE,STARTER CABLE | 13183 | 13183-1592 | 1 | ||
| PLATE,THROTTLE CABLE | 13183A | 13183-1610 | 1 | ||
| PLATE,CARBURETOR,LWR | 13183B | 13183-1727 | 1 | ||
| CARBURETOR-ASSY | 15003 | 15003-1183 | 1 | ||
| CARBURETOR,LH,OUTSIDE | 15010 | 15010-1852 | 1 | ||
| CARBURETOR,LH,INSIDE | 15010A | 15010-1853 | 1 | ||
| CARBURETOR,RH,INSIDE | 15010B | 15010-1854 | 1 | ||
| CARBURETOR,RH,OUTSIDE | 15010C | 15010-1855 | 1 | ||
| SCREW-THROTTLE STOP | 16021 | 16021-1181 | 1 | ||
| BOLT,THROTTLE ADJUST | 92001 | 92001-1998 | 3 | ||
| FITTING,T-TYPE | 92005 | 92005-1272 | 1 | ||
| FITTING | 92005A | 92005-1294 | 2 | ||
| FITTING | 92005B | 92005-1306 | 2 | ||
| SCREW | 92009 | 92009-1262 | 3 | ||
| SCREW | 92009A | 92009-1597 | 1 | ||
| SCREW,4X18 | 92009B | 92009-1632 | 1 | ||
| NUT,FLANGED,5MM | 92015 | 92015-1259 | 1 | ||
| WASHER,6.1X11X0.8,POLYACETAL | 92022 | 92022-1199 | 6 | ||
| CLAMP,TUBE | 92037 | 92037-1531 | 2 | ||
| TUBE,FUEL,7.3X12.5X200 | 92059 | 92059-1029 | 1 | ||
| SPRING,THROTTLE ADJUST UPP | 92081 | 92081-1620 | 3 | ||
| SPRING,THROTTLE ADJUST LWR | 92081A | 92081-1621 | 3 | ||
| SPRING,THROTTLE ADJUST CNT | 92081B | 92081-1622 | 2 | ||
| COLLAR,4X5.2X9.6 | 92143 | 92143-1265 | 1 | ||
| SPRING,STARTER LEVER | 92144 | 92144-1547 | 1 | ||
| BOLT,5X305 | 92150 | 92150-1211 | 1 | ||
| CLAMP,TUBE | 92170 | 92170-1051 | 4 | ||
| TUBE,7.3X12.5X80 | 92190 | 92190-1053 | 1 | ||
| TUBE,L=100 | 92190A | 92190-1567 | 2 |
| SCREW-PAN-CROS,5X14 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| LEVER,STARTER | |
| REF # | 13168 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,STARTER CABLE | |
| REF # | 13183 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,THROTTLE CABLE | |
| REF # | 13183A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,CARBURETOR,LWR | |
| REF # | 13183B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CARBURETOR-ASSY | |
| REF # | 15003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CARBURETOR,LH,OUTSIDE | |
| REF # | 15010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CARBURETOR,LH,INSIDE | |
| REF # | 15010A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CARBURETOR,RH,INSIDE | |
| REF # | 15010B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CARBURETOR,RH,OUTSIDE | |
| REF # | 15010C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-THROTTLE STOP | |
| REF # | 16021 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,THROTTLE ADJUST | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| FITTING,T-TYPE | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FITTING | |
| REF # | 92005A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FITTING | |
| REF # | 92005B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,4X18 | |
| REF # | 92009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.1X11X0.8,POLYACETAL | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE,FUEL,7.3X12.5X200 | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,THROTTLE ADJUST UPP | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SPRING,THROTTLE ADJUST LWR | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SPRING,THROTTLE ADJUST CNT | |
| REF # | 92081B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,4X5.2X9.6 | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,STARTER LEVER | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,5X305 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| TUBE,7.3X12.5X80 | |
| REF # | 92190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,L=100 | |
| REF # | 92190A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
