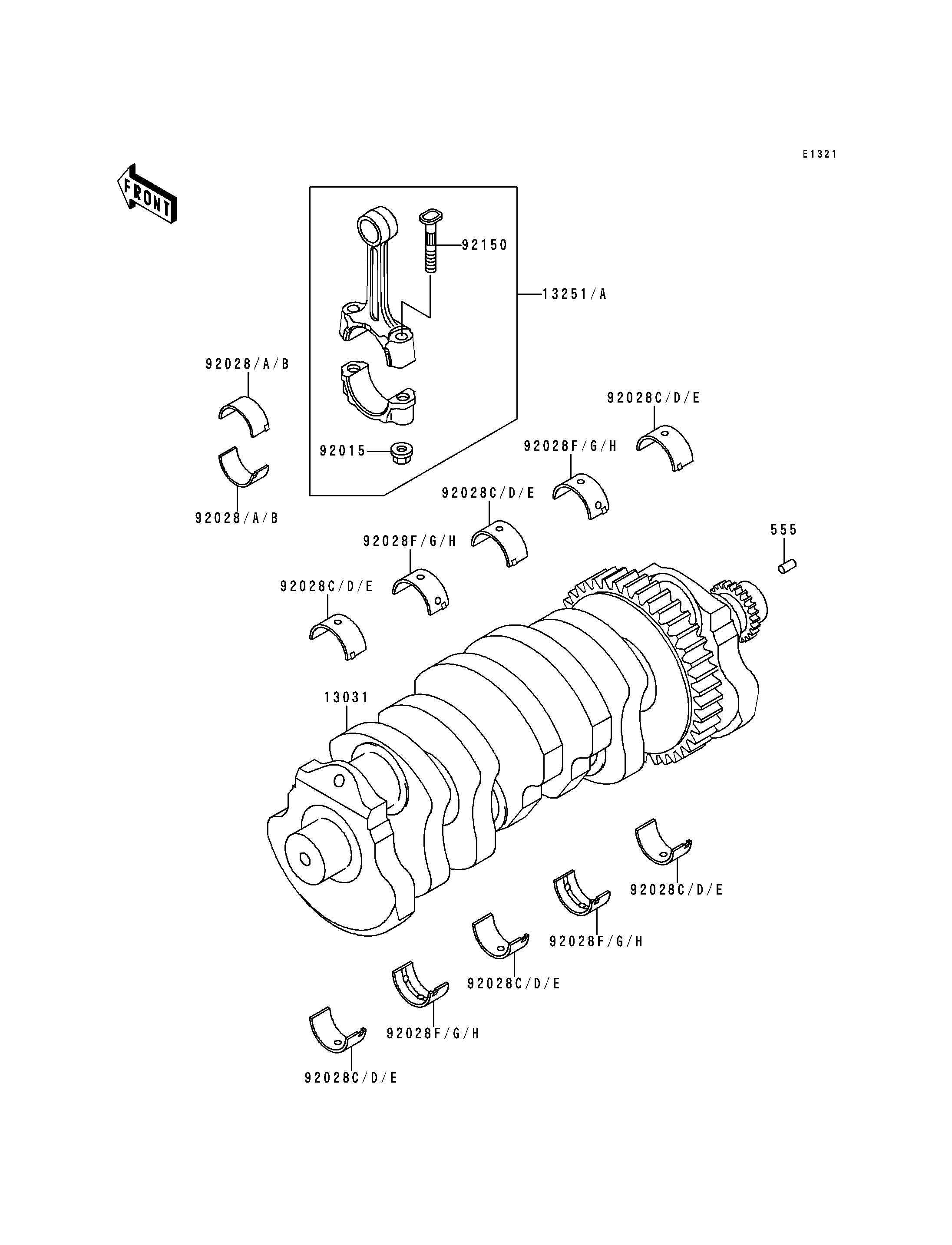

1997 Ninja® ZX™-9R - Crankshaft

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIN-SPRING,4X8 555 555A0408 1
CRANKSHAFT-COMP 13031 13031-1374 1
ROD-ASSY-CONNECTING,I 13251 13251-1105-II 4
ROD-ASSY-CONNECTING,J 13251A 13251-1105-JJ 4
NUT,FLANGED,8MM 92015 92015-1311 8
BUSHING,CONNECTING ROD,BLUE 92028 92028-1712 8
BUSHING,CONNECTING ROD 92028A 92028-1713 AR
BUSHING,CONNECTING ROD,BROWN 92028B 92028-1714 AR
BUSHING,CRANK,#1,#3,#5,BLUE 92028C 92028-1715 6
BUSHING,CRANK,#1,#3,#5 92028D 92028-1716 AR
BUSHING,CRANK,#1,#3,#5,BROWN 92028E 92028-1717 AR
BUSHING,CRANKSHAFT,#2,#4,BLUE 92028F 92028-1718 4
BUSHING,CRANKSHAFT,#2,#4 92028G 92028-1719 AR
BUSHING,CRANKSHAFT,#2,#4,BROWN 92028H 92028-1720 AR
BOLT,CONNECTING ROD,8MM 92150 92150-1216 8
