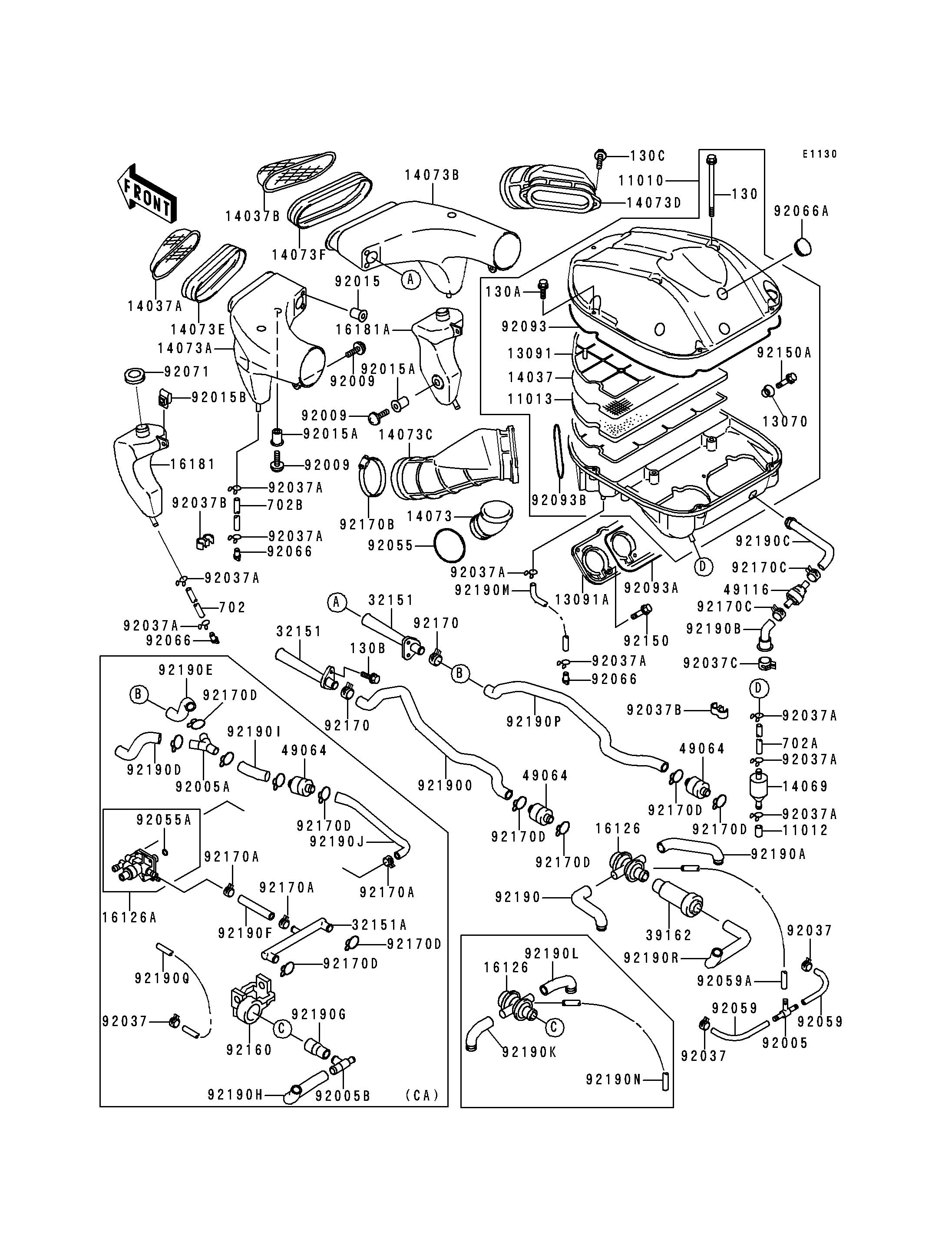

1997 Ninja® ZX™-9R - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 11010 11010-1511 1
CAP 11012 11012-1899 1
ELEMENT-AIR FILTER 11013 11013-1232 1
GUIDE,AIR FILTER 13070 13070-1230 2
HOLDER 13091 13091-1864 2
HOLDER,AIR FILTER 13091A 13091-1865 1
SCREEN,AIR FILTER 14037 14037-1182 1
SCREEN,LH 14037A 14037-1185 1
SCREEN,RH 14037B 14037-1186 1
BREATHER 14069 14069-1051 1
DUCT,AIR FILTER 14073 14073-1575 4
DUCT,AIR INTAKE,FR,LH 14073A 14073-1589 1
DUCT,AIR INTAKE,FR,RH 14073B 14073-1590 1
DUCT,AIR INTAKE,RR,LH 14073C 14073-1591 1
DUCT,AIR INTAKE,RR,RH 14073D 14073-1592 1
DUCT,AIR INTAKE,COWL,LH 14073E 14073-1595 1
DUCT,AIR INTAKE,COWL,RH 14073F 14073-1596 1
VALVE,AIR SWITCH 16126 16126-1104 1
VALVE,CANISTER 16126A 16126-1272 1
TANK-RESONATOR,LH 16181 16181-1074 1
TANK-RESONATOR,RH 16181A 16181-1075 1
PIPE 32151 32151-1572 2
PIPE 32151A 32151-1598 1
SILENCER-INTAKE 39162 39162-1003 1
FILTER-AIR 49064 49064-1055 1
FILTER-AIR 49064 49064-1055 2
VALVE-ASSY 49116 49116-1116 1
FITTING,TUBE,T-TYPE 92005 92005-1017 1
FITTING,Y-TIPE 92005A 92005-1250 1
FITTING,T-TYPE 92005B 92005-1252 1
SCREW,6X16 92009 92009-1621 6
NUT,WELL,5MM 92015 92015-1640 4
NUT 92015A 92015-1700 4
NUT,CLIP,6MM 92015B 92015-1904 2
CLAMP,TUBE 92037 92037-1461 2
CLAMP,TUBE 92037 92037-1461 3
CLAMP,TUBE 92037A 92037-147 13
CLAMP,HOSE 92037B 92037-1603 3
CLAMP 92037C 92037-1730 1
RING-O,67.7X3.1 92055 92055-1434 4
RING-O 92055A 92055-1524 1
TUBE,FUEL,4X9X140 92059 92059-1230 2
TUBE,4X9X500,WHITE 92059A 92059-1533 1
PLUG,DRAIN 92066 92066-1211 5
PLUG 92066A 92066-1389 4
GROMMET,AIR FILTER 92071 92071-1013 2
SEAL 92093 92093-1364 1
SEAL,HOLDER 92093A 92093-1365 1
SEAL 92093B 92093-1366 2
BOLT,5X16 92150 92150-1363 4
BOLT 92150A 92150-1767 4
DAMPER 92160 92160-1489 1
CLAMP 92170 92170-1060 2
CLAMP 92170A 92170-1118 3
CLAMP 92170B 92170-1307 2
CLAMP,BRAKE HOSE 92170C 92170-1434 2
CLAMP 92170D 92170-1486 4
CLAMP 92170D 92170-1486 7
TUBE,HEAD-AIR SWITCH,LH 92190 92190-1197 1
TUBE,HEAD-AIR SWITCH,RH 92190A 92190-1198 1
TUBE,BREATHER 92190B 92190-1482 1
TUBE 92190C 92190-1483 1
TUBE,AIR VENT,FR,LH 92190D 92190-1505 1
TUBE,AIR VENT,FR,RH 92190E 92190-1506 1
TUBE,VALVE-PIPE 92190F 92190-1507 1
TUBE,ACV-FITTING 92190G 92190-1512 1
TUBE,FITTING-AIR FILTER 92190H 92190-1513 1
BOLT-FLANGED 130 130H06105 2
BOLT-FLANGED,6X25 130A 130H0625 5
BOLT-FLANGED 130B 130J0520 4
BOLT-FLANGED,6X30,BLACK 130C 130J0630 4
TUBE-RUBBER 702 702A07360 2
TUBE-RUBBER,7X10X400 702A 702A07400 1
TUBE-RUBBER 702B 702A07515 2
TUBE,FITTING-FILTER 92190I 92190-1516 1
TUBE,FILTER-VALVE 92190J 92190-1517 1
TUBE,HEAD COVER-VALVE 92190K 92190-1543 1
TUBE 92190L 92190-1544 1
TUBE,DRAIN 92190M 92190-1549 1
TUBE,3WAY-AVT 92190N 92190-1558 1
TUBE,AIR VENT,FR,LH 92190O 92190-1561 1
TUBE,AIR VENT,FR,RH 92190P 92190-1562 1
TUBE 92190Q 92190-1564 1
TUBE,SILENCER-AIR FILTER 92190R 92190-1582 1
