Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

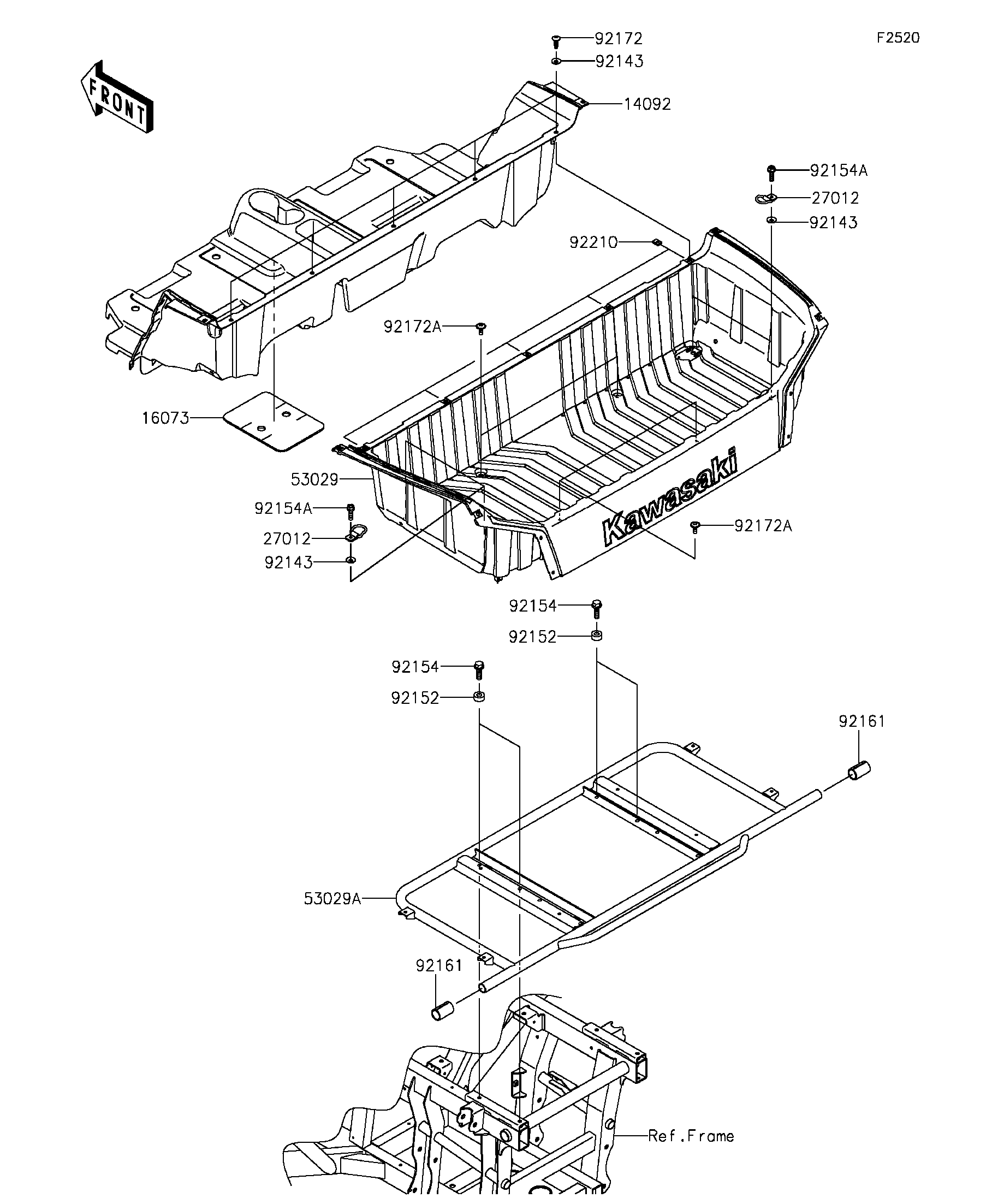

Parts Diagrams |
14092
16073
27012
27012
53029
53029A
92143
92143
92143
92152
92152
92154
92154
92154A
92154A
92161
92161
92172
92172A
92172A
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,RR CONSOLE | 14092 | 14092-1057 | 1 | ||
| INSULATOR,CENTER CONSOLE | 16073 | 16073-0803 | 1 | ||
| HOOK | 27012 | 27012-0783 | 4 | ||
| CARRIER | 53029 | 53029-0309 | 1 | ||
| CARRIER | 53029A | 53029-0330 | 1 | ||
| COLLAR | 92143 | 92143-1087 | 9 | ||
| COLLAR,8.2X18X8 | 92152 | 92152-1553 | 4 | ||
| BOLT,FLANGED,8X25 | 92154 | 92154-1302 | 4 | ||
| BOLT,FLANGED,6X22 | 92154A | 92154-1356 | 4 | ||
| DAMPER,50X79X3 | 92161 | 92161-1604 | 2 | ||
| SCREW,TAPPING,6X20 | 92172 | 92172-0488 | 5 | ||
| SCREW,6X16 | 92172A | 92172-0711 | 4 | ||
| NUT,LEAF SPRING,6MM | 92210 | 92210-0624 | 5 |
