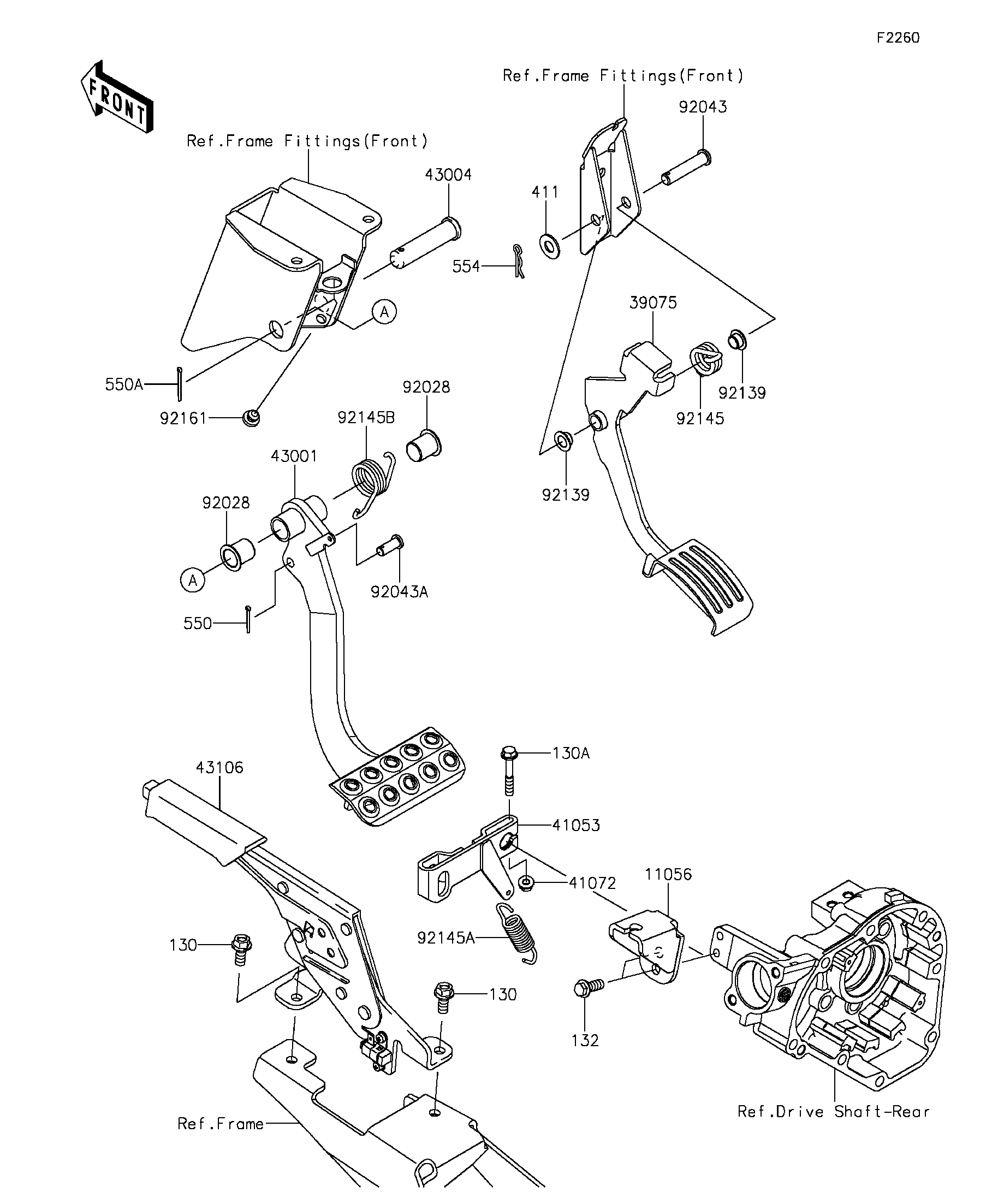

2015 TERYX4™ - Brake Pedal/Throttle Lever

DOWNLOAD PDF
SELECT A NEW PART
11056
39075
41053
41072
43001
43004
43106
92028
92028
92043
92043A
92139
92139
92145
92145A
92145B
92161
130
130
130A
132
411
550
550A
554
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-2267 1
LEVER-THROTTLE 39075 39075-0019 1
LEVER-BRAKE CAM 41053 41053-0023 1
NUT,6MM 41072 41072-007 1
LEVER-BRAKE 43001 43001-0737 1
SHAFT-BRAKE 43004 43004-1128 1
LEVER-ASSY-PARKING BRAKE 43106 43106-7502 1
BUSHING 92028 92028-1571 2
PIN,10X42.5 92043 92043-0707 1
PIN 92043A 92043-1039 1
BUSHING 92139 92139-0230 2
SPRING,THROTTLE 92145 92145-0831 1
SPRING,BRAKE CAM LEVER 92145A 92145-0880 1
SPRING,BRAKE PEDAL RETURN 92145B 92145-1615 1
DAMPER 92161 92161-1084 1
BOLT-FLANGED,8X18 130 130BA0818 2
BOLT-FLANGED,6X40 130A 130CA0640 1
BOLT-FLANGED-SMALL,8X20 132 132BA0820 2
WASHER-PLAIN,10MM 411 411AA1000 1
PIN-COTTER,2.5X18 550 550AA2518 1
PIN-COTTER,2.5X25 550A 550AA2525 1
PIN-SNAP,10MM 554 554DA1000 1
