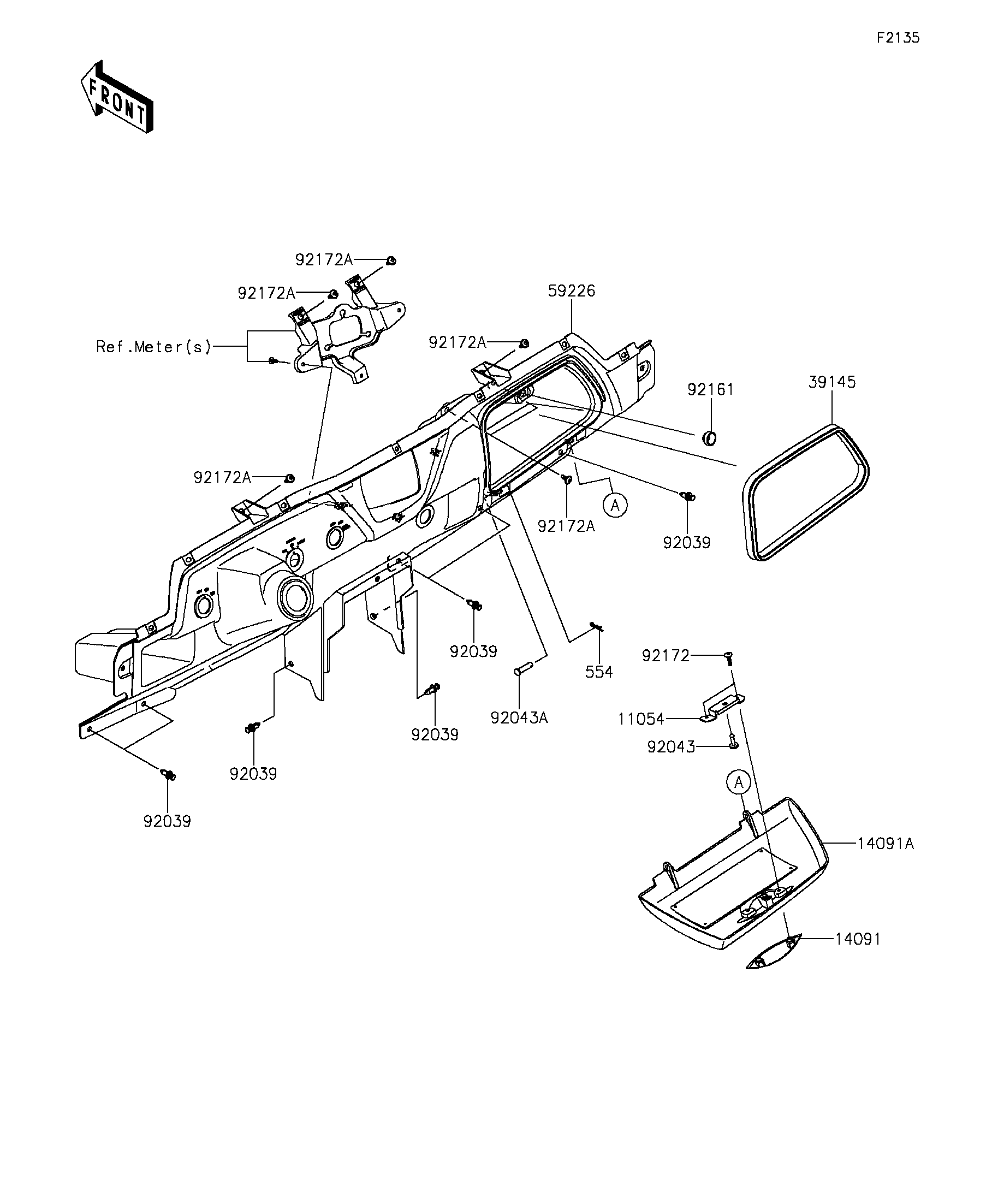

2015 TERYX4™ - Front Box

DOWNLOAD PDF
SELECT A NEW PART
11054
14091
14091A
39145
59226
92039
92039
92039
92039
92039
92043
92043A
92161
92172
92172A
92172A
92172A
92172A
92172A
554
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11054 11054-1789 1
COVER,STORAGE CAP,F.BLACK 14091 14091-0700-6Z 1
COVER,STORAGE,F.BLACK 14091A 14091-0985-6Z 1
TRIM-SEAL,L=940 39145 39145-0029 1
PANEL-CONTROL 59226 59226-0033 1
RIVET 92039 92039-1229 7
PIN 92043 92043-0138 1
PIN,6X23 92043A 92043-0164 2
DAMPER 92161 92161-0568 1
SCREW,TAPPING,4X16 92172 92172-0347 2
SCREW,6X16 92172A 92172-0826 6
PIN-SNAP 554 554DA0600 2
