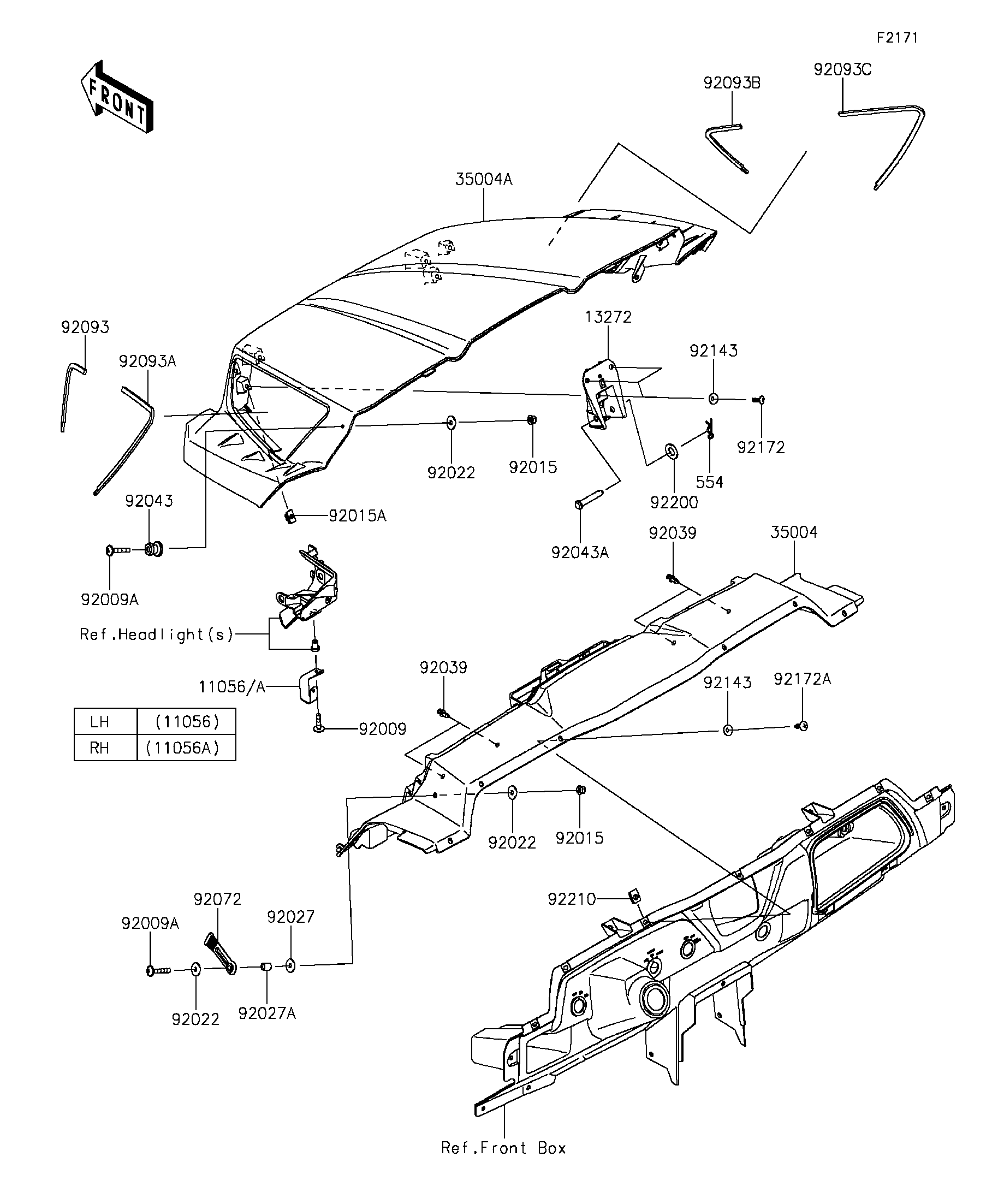

2015 Teryx4 - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
13272
35004
35004A
92009
92009A
92009A
92015
92015
92015A
92022
92022
92022
92027
92027A
92039
92039
92043
92043A
92072
92093
92093A
92093B
92093C
92143
92143
92172
92172A
92200
92210
554
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LH 11056 11056-0129 1
BRACKET,RH 11056A 11056-0130 1
PLATE 13272 13272-0871 2
FENDER-FRONT,RR,S.BLACK 35004 35004-0325-839 1
FENDER-FRONT,FR,S.BLACK 35004A 35004-0332-839 1
SCREW,6X25 92009 92009-1465 2
SCREW,6X35 92009A 92009-1672 4
NUT,LOCK,FLANGED,6MM 92015 92015-1339 4
NUT,5MM 92015A 92015-1627 6
WASHER,6.5X20X1.6 92022 92022-125 6
COLLAR,L=5.1 92027 92027-1260 2
COLLAR,6.8X10X12 92027A 92027-162 2
RIVET 92039 92039-1229 4
PIN 92043 92043-0197 2
PIN,12.4X72.4 92043A 92043-0716 2
BAND 92072 92072-0144 2
SEAL,FR,LH 92093 92093-0168 1
SEAL,RR,LH 92093A 92093-0169 1
SEAL,FR,RH 92093B 92093-0170 1
SEAL,RR,RH 92093C 92093-0171 1
COLLAR 92143 92143-1087 12
SCREW,5X16 92172 92172-0322 6
SCREW,TAPPING,6X20 92172A 92172-0488 6
WASHER,13X24X2 92200 92200-0451 2
NUT,LEAF SPRING,6MM 92210 92210-0624 6
PIN-SNAP,12MM 554 554DA1200 2
