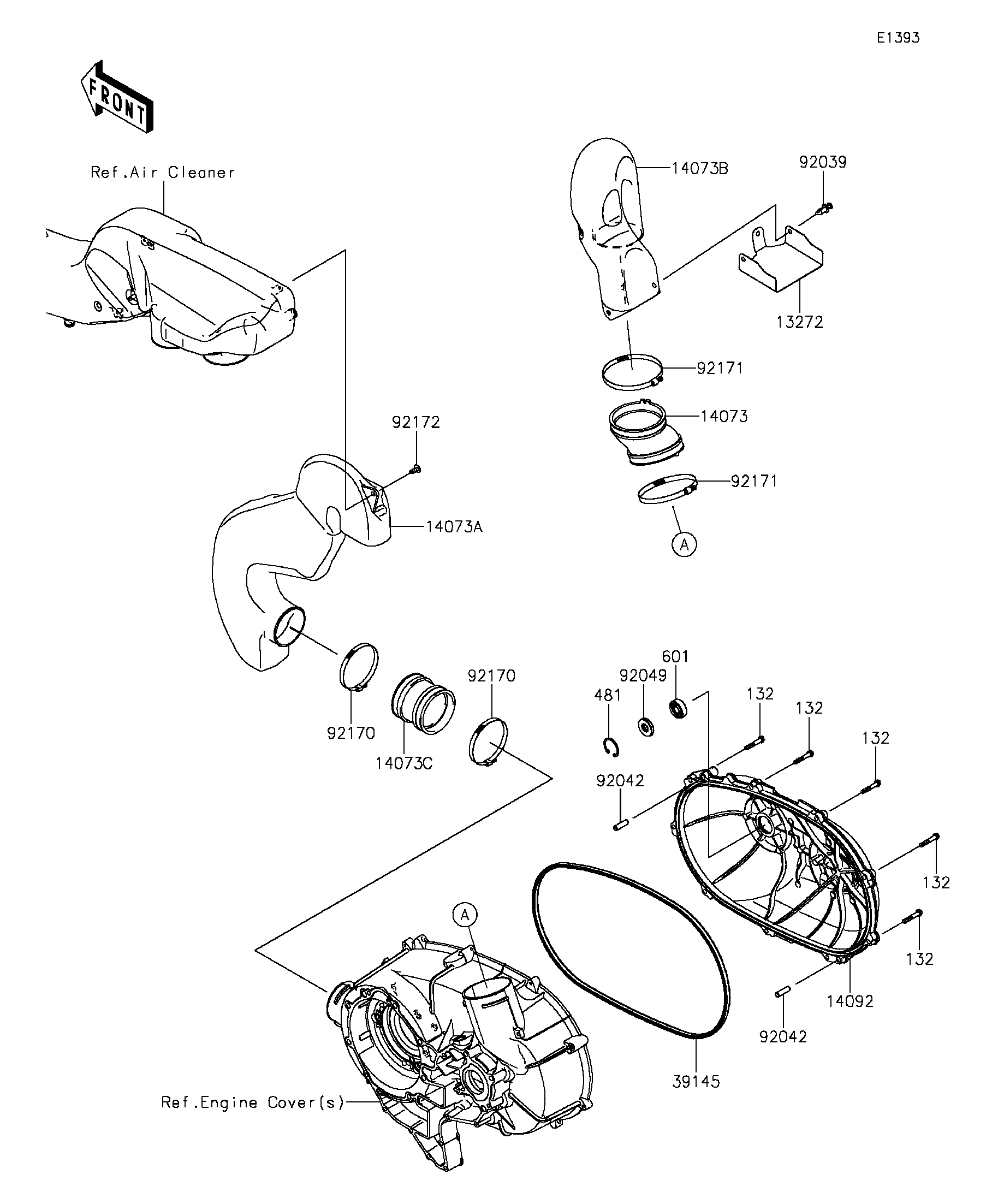

2015 Teryx4 - Converter Cover

DOWNLOAD PDF
SELECT A NEW PART
13272
14073
14073A
14073B
14073C
14092
39145
92039
92042
92042
92049
92170
92170
92171
92171
92172
132
132
132
132
132
481
601
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE 13272 13272-1553 1
DUCT,JOINT 14073 14073-0307 1
DUCT,INTAKE 14073A 14073-0760 1
DUCT,EXHAUST 14073B 14073-0783 1
DUCT,JOINT 14073C 14073-1805 1
COVER,CVT 14092 14092-0266 1
TRIM-SEAL,CVT COVER 39145 39145-0043 1
RIVET 92039 92039-1229 3
PIN,DOWEL,8X28 92042 92042-050 2
SEAL-OIL,12X32X5.8 92049 92049-0167 1
CLAMP 92170 92170-1763 2
CLAMP 92171 92171-1383 2
SCREW 92172 92172-0297 1
BOLT-FLANGED-SMALL,6X35 132 132BA0635 9
CIRCLIP-TYPE-C,32MM 481 481J3200 1
BEARING-BALL 601 601A6201 1
