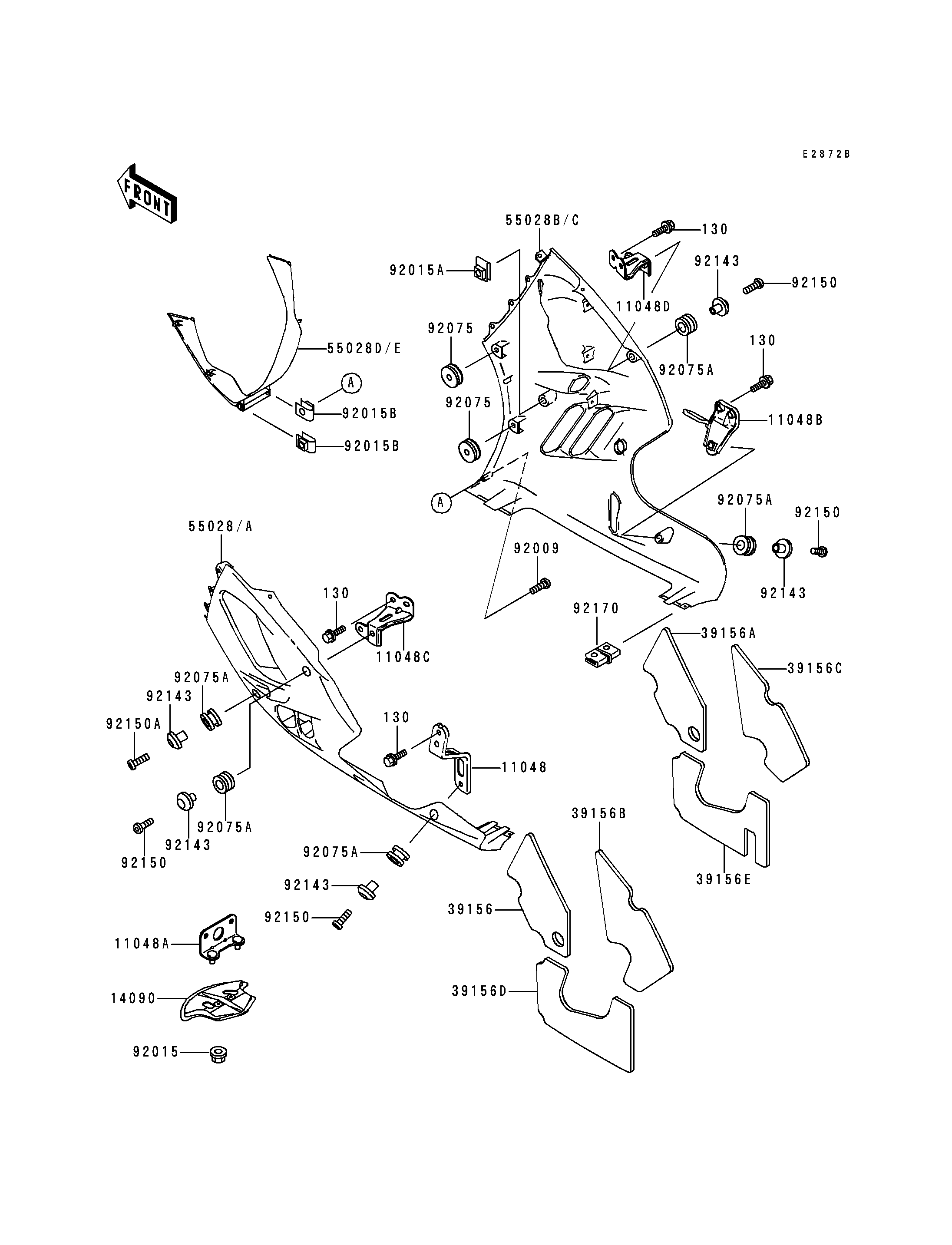

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11048
11048
11048A
11048A
11048B
11048B
11048C
11048C
11048D
11048D
14090
14090
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156D
39156D
39156E
39156E
55028
55028
55028A
55028A
55028B
55028B
55028C
55028C
55028D
55028D
55028E
55028E
92009
92009
92015
92015
92015A
92015A
130
130
130
130
130
130
130
130
92015B
92015B
92015B
92015B
92075
92075
92075
92075
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92075A
92143
92143
92143
92143
92143
92143
92143
92143
92143
92143
92150
92150
92150
92150
92150
92150
92150
92150
92150A
92150A
92170
92170
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LWR COWLING,LH,LWR | 11048 | 11048-1310 | 1 | ||
| BRACKET,UNDER BRACKET | 11048A | 11048-1411 | 1 | ||
| BRACKET,LWR COWLNG,RH,LWR | 11048B | 11048-1421 | 1 | ||
| BRACKET,LWR COWLING,LH,UPP | 11048C | 11048-1681 | 1 | ||
| BRACKET,LWR COWLING,RH,UPP | 11048D | 11048-1682 | 1 | ||
| COVER,UNDER BRACKET | 14090 | 14090-1388 | 1 | ||
| PAD,LWR COWLING,LH,FR | 39156 | 39156-1402 | 1 | ||
| PAD,LWR COWLING,RH,FR | 39156A | 39156-1403 | 1 | ||
| PAD,LWR COWLING,LH,RR | 39156B | 39156-1404 | 1 | ||
| PAD,LWR COWLING,RH,RR | 39156C | 39156-1405 | 1 | ||
| PAD,LWR COWLING,LH,LWR | 39156D | 39156-1406 | 1 | ||
| PAD,LWR COWLING,RH,LWR | 39156E | 39156-1468 | 1 | ||
| COWLING,LWR,LH,L.GREEN/WHITE | 55028 | 55028-1315-CK | 1 | ||
| COWLING,LWR,LH,BLACK MICA | 55028A | 55028-1315-20 | 1 | ||
| COWLING,LWR,RH,L.GREEN/WHITE | 55028B | 55028-1316-CK | 1 | ||
| COWLING,LWR,RH,BLACK MICA | 55028C | 55028-1316-20 | 1 | ||
| COWLING,LWR,FR,BLACK MICA | 55028D | 55028-1317-20 | 1 | ||
| COWLING,LWR,FR,L.GREEN | 55028E | 55028-1317-7F | 1 | ||
| SCREW,5X16 | 92009 | 92009-1654 | 2 | ||
| NUT,CAP,6MM,BLACK | 92015 | 92015-1170 | 2 | ||
| NUT | 92015A | 92015-1487 | 2 | ||
| BOLT-FLANGED,6X16,BLACK | 130 | 130J0616 | 8 | ||
| NUT,5MM | 92015B | 92015-1798 | 2 | ||
| DAMPER | 92075 | 92075-1067 | 4 | ||
| DAMPER | 92075A | 92075-1634 | 6 | ||
| COLLAR,BLACK | 92143 | 92143-1226 | 6 | ||
| BOLT,SOCKET,6X18 | 92150 | 92150-1553 | 4 | ||
| BOLT,SOCKET,6X30 | 92150A | 92150-1554 | 2 | ||
| CLAMP | 92170 | 92170-1230 | 1 |
