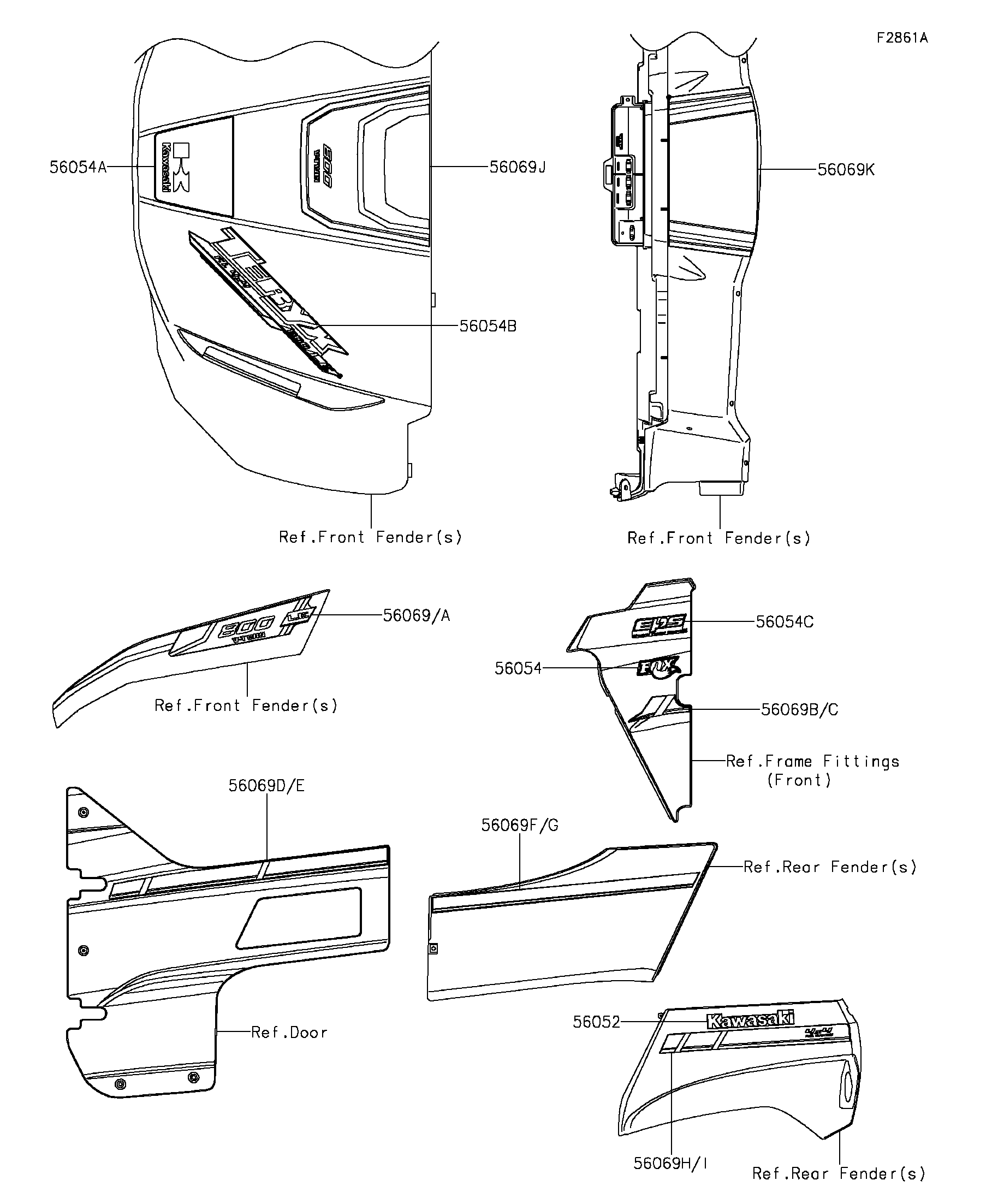

2015 TERYX® LE - Decals(White)

DOWNLOAD PDF
SELECT A NEW PART
56052
56054
56054A
56054B
56054C
56069
56069A
56069B
56069C
56069D
56069E
56069F
56069G
56069H
56069I
56069J
56069K
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,RR FENDER,KAWASAKI 56052 56052-0455 2
MARK,SIDE GUARD,FOX 56054 56054-1254 2
MARK,FR FENDER,K 56054A 56054-1274 1
MARK,FR FENDER,TERYX 56054B 56054-1543 1
MARK,SIDE GUARD,EPS 56054C 56054-1544 2
PATTERN,OVER FENDER,LH 56069 56069-7481 1
PATTERN,OVER FENDER,RH 56069A 56069-7482 1
PATTERN,SIDE GUARD,LH 56069B 56069-7483 1
PATTERN,SIDE GUARD,RH 56069C 56069-7484 1
PATTERN,DOOR COVER,LH 56069D 56069-7485 1
PATTERN,DOOR COVER,RH 56069E 56069-7486 1
PATTERN,RR FENDER,FR,LH 56069F 56069-7487 1
PATTERN,RR FENDER,FR,RH 56069G 56069-7488 1
PATTERN,RR FENDER,RR,LH 56069H 56069-7489 1
PATTERN,RR FENDER,RR,RH 56069I 56069-7490 1
PATTERN,FR FENDER 56069J 56069-7491 1
PATTERN,FR FENDER,RR 56069K 56069-7492 1
