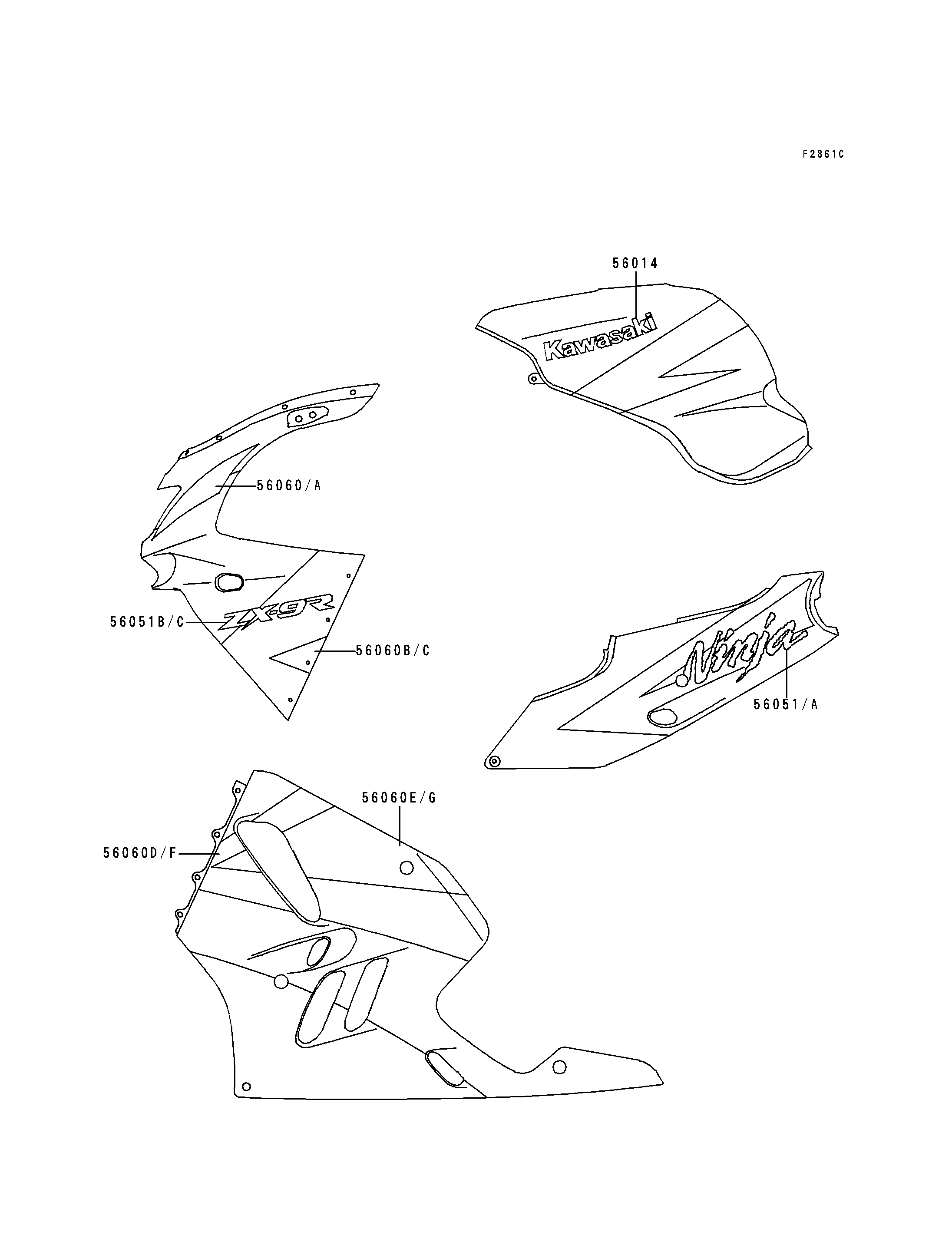

1995 Ninja® ZX™-9R - Decals(Green/White/Violet)(ZX900-B2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK,KAWASAKI | 56014 | 56014-1299 | 2 | ||
| MARK,SIDE COVER,LH,NINJA | 56051 | 56051-1214 | 1 | ||
| MARK,SIDE COVER,RH,NINJA | 56051A | 56051-1215 | 1 | ||
| MARK,UPP COWLING,LH,ZX-9R | 56051B | 56051-1216 | 1 | ||
| MARK,UPP COWLING,RH,ZX-9R | 56051C | 56051-1217 | 1 | ||
| PATTERN,UPP COWLING,LH | 56060 | 56060-1945 | 1 | ||
| PATTERN,UPP COWLING,RH | 56060A | 56060-1946 | 1 | ||
| PATTERN,UPP COWLING,LWR,LH | 56060B | 56060-1947 | 1 | ||
| PATTERN,UPP COWLING,LWR,RH | 56060C | 56060-1948 | 1 | ||
| PATTERN,LWR COWLING,FR,LH | 56060D | 56060-1949 | 1 | ||
| PATTERN,LWR COWLING,RR,LH | 56060E | 56060-1950 | 1 | ||
| PATTERN,LWR COWLING,FR,RH | 56060F | 56060-1951 | 1 | ||
| PATTERN,LWR COWLING,RR,RH | 56060G | 56060-1952 | 1 |
| EMBLEM,FUEL TANK,KAWASAKI | |
| REF # | 56014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COVER,LH,NINJA | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COVER,RH,NINJA | |
| REF # | 56051A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,UPP COWLING,LH,ZX-9R | |
| REF # | 56051B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,UPP COWLING,RH,ZX-9R | |
| REF # | 56051C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LH | |
| REF # | 56060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,RH | |
| REF # | 56060A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LWR,LH | |
| REF # | 56060B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LWR,RH | |
| REF # | 56060C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,FR,LH | |
| REF # | 56060D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,RR,LH | |
| REF # | 56060E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,FR,RH | |
| REF # | 56060F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,RR,RH | |
| REF # | 56060G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
