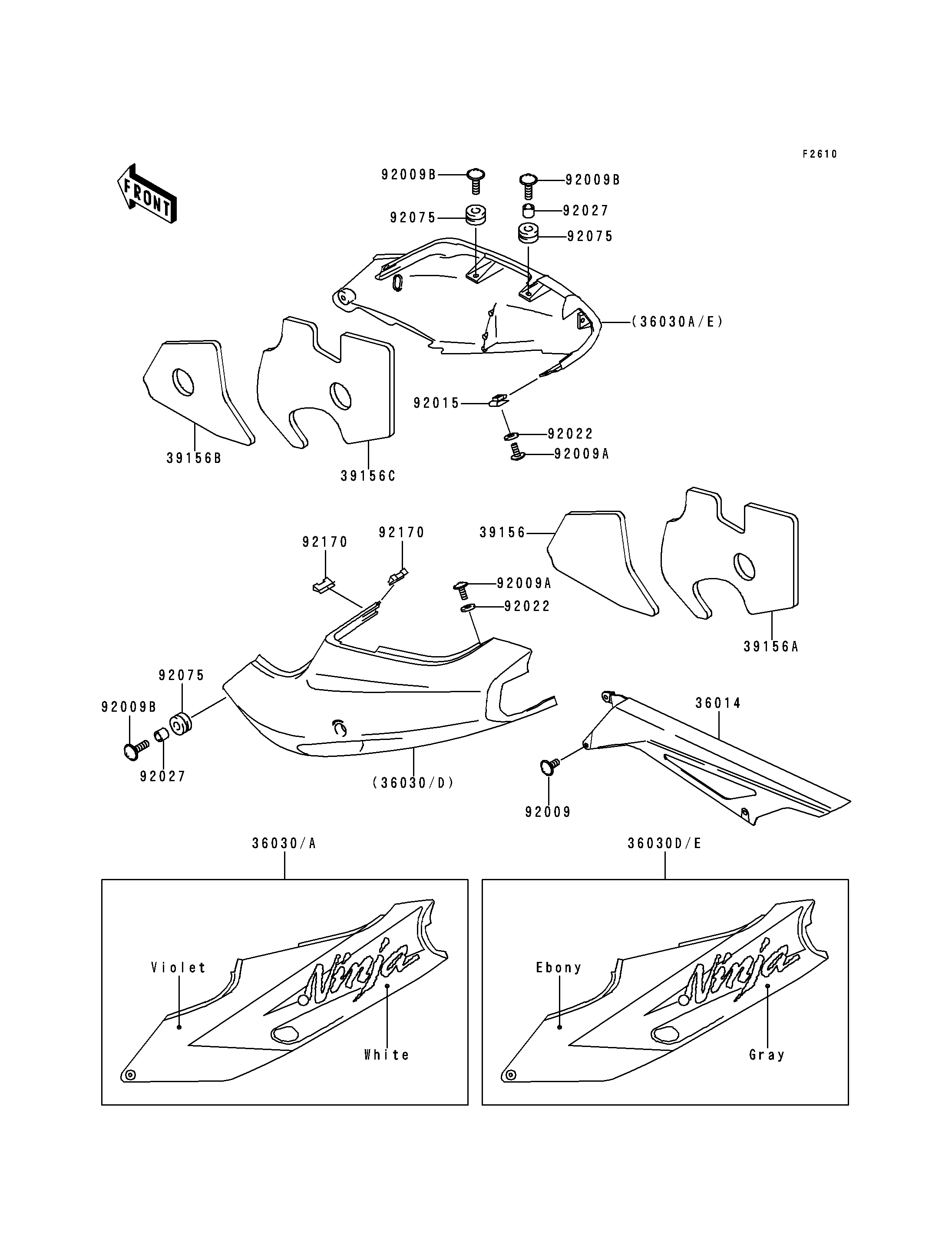

1994 Ninja® ZX™-9R - Side Covers/Chain Cover(ZX900-B1)

DOWNLOAD PDF
SELECT A NEW PART
36014
36030
36030A
36030D
36030E
39156
39156A
39156B
39156C
92009
92009A
92009A
92009B
92009B
92009B
92015
92022
92022
92027
92027
92075
92075
92075
92170
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-CHAIN 36014 36014-1189 1
COVER-SIDE,LH,WHITE/VIOLET 36030 36030-5334-39 1
COVER-SIDE,RH,WHITE/VIOLET 36030A 36030-5335-39 1
COVER-SIDE,LH,EBONY/GRAY 36030D 36030-5338-FG 1
COVER-SIDE,RH,EBONY/GRAY 36030E 36030-5339-FG 1
PAD,SIDE COVER,LH,FR 39156 39156-1396 1
PAD,SIDE COVER,LH,RR 39156A 39156-1397 1
PAD,SIDE COVER,RH,FR 39156B 39156-1398 1
PAD,SIDE COVER,RH,RR 39156C 39156-1399 1
SCREW,6X10 92009 92009-1402 4
SCREW,5X16 92009A 92009-1654 3
SCREW,6X22 92009B 92009-1664 6
NUT,5MM 92015 92015-1798 1
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 3
COLLAR,6.8X10X8.5 92027 92027-129 4
DAMPER 92075 92075-1634 6
CLAMP 92170 92170-1440 2
