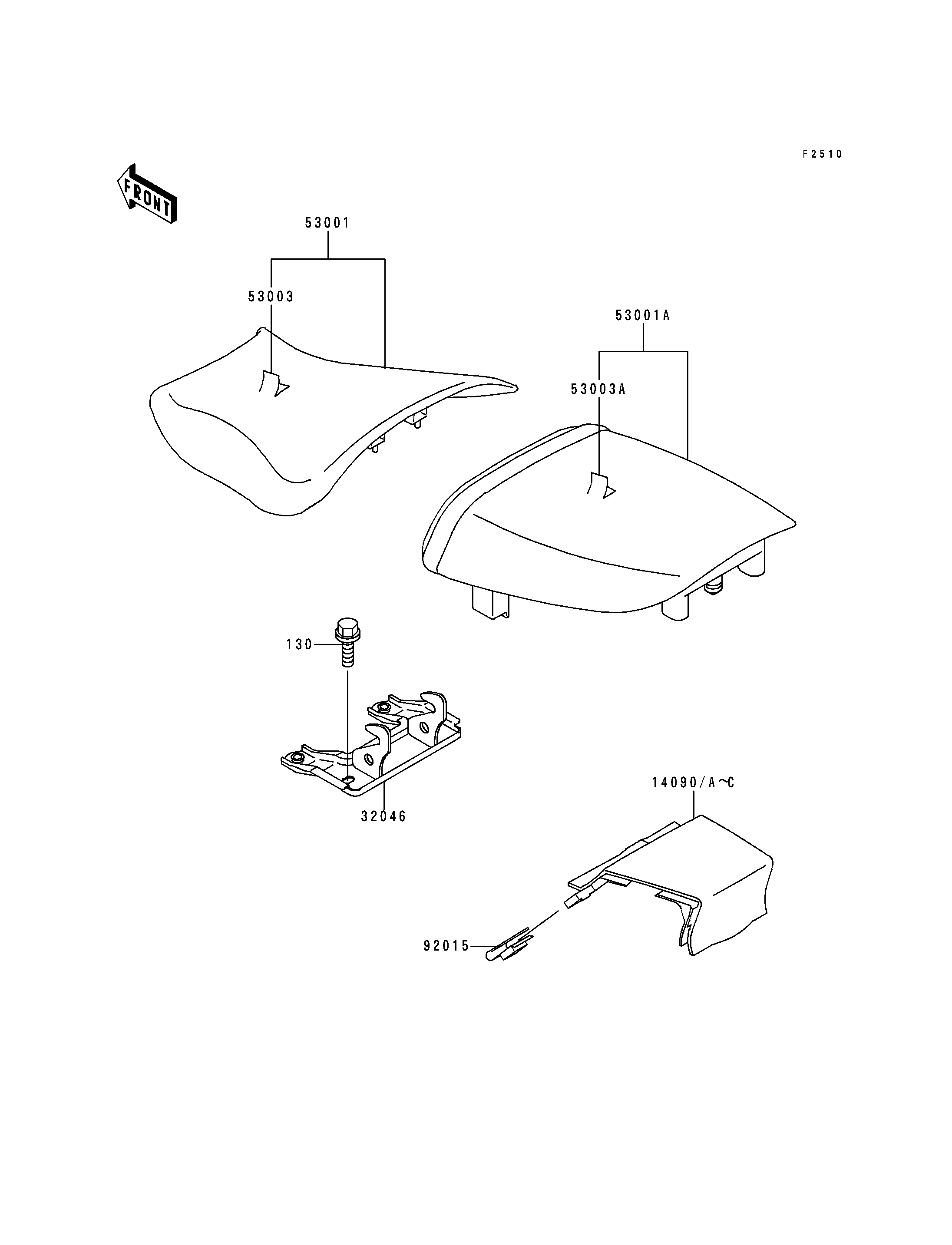

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED | 130 | 130J0610 | 2 | ||
| COVER,TAIL,P.A.WHITE | 14090A | 14090-1365-R1 | 1 | ||
| COVER,TAIL,P.G.GRAY | 14090B | 14090-1365-T8 | 1 | ||
| BRACKET-SEAT,RR | 32046 | 32046-1378 | 1 | ||
| SEAT-ASSY,FR,BLACK | 53001 | 53001-1724-MA | 1 | ||
| SEAT-ASSY,RR,W/BAND,BLACK | 53001A | 53001-1725-MA | 1 | ||
| LEATHER,FRONT SEAT,BLACK | 53003 | 53003-1283-MA | 1 | ||
| LEATHER,REAR SEAT,BLACK | 53003A | 53003-1286-MA | 1 | ||
| NUT,5MM | 92015 | 92015-1798 | 2 |
