Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

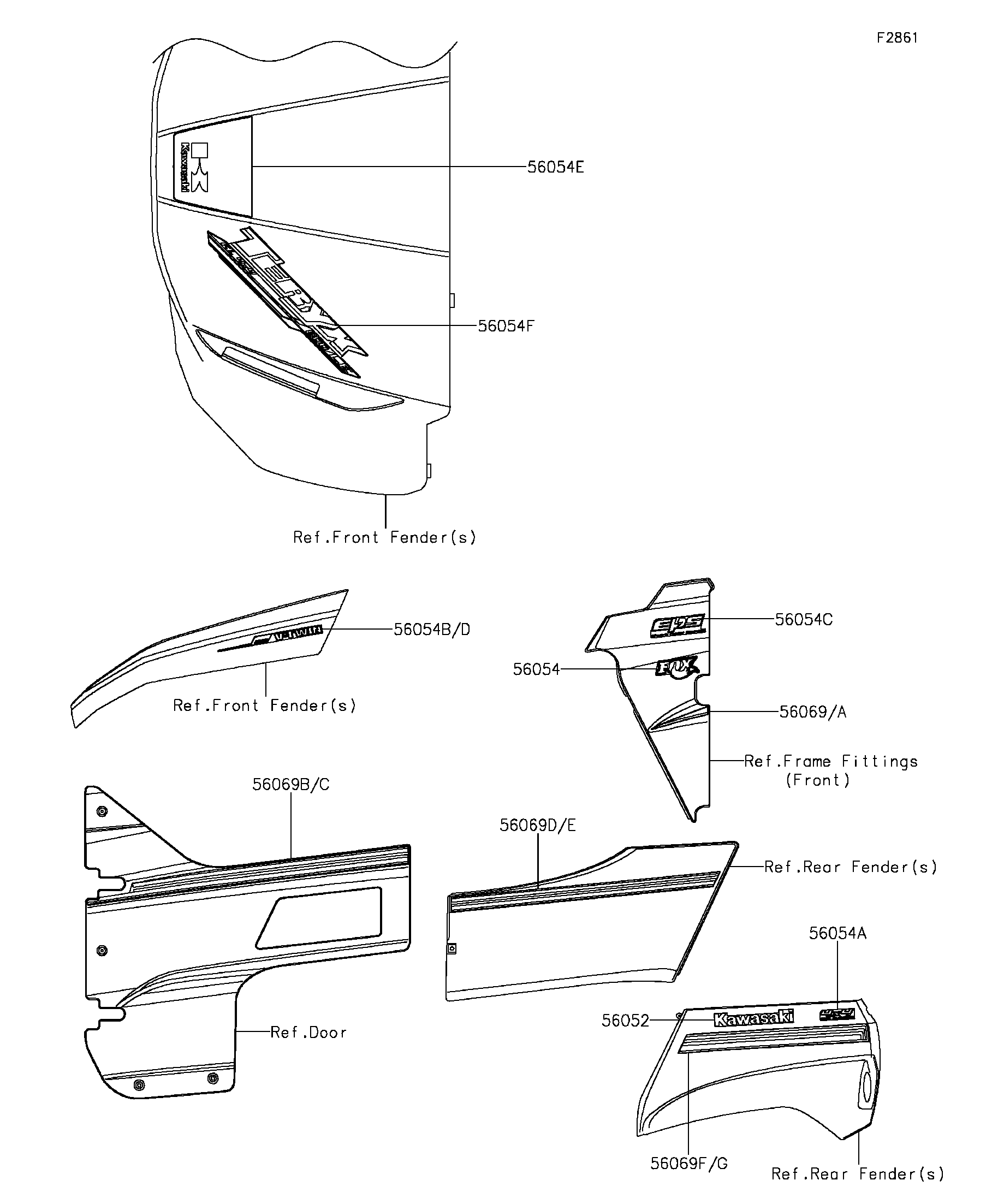

Parts Diagrams |
56052
56054
56054A
56054B
56054C
56054D
56054E
56054F
56069
56069A
56069B
56069C
56069D
56069E
56069F
56069G
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,KAWASAKI | 56052 | 56052-0455 | 2 | ||
| MARK,SIDE GUARD,FOX | 56054 | 56054-1254 | 2 | ||
| MARK,RR FENDER,4X4 | 56054A | 56054-1255 | 2 | ||
| MARK,OVER FENDER,LH | 56054B | 56054-1257 | 1 | ||
| MARK,SIDE GUARD,EPS | 56054C | 56054-1258 | 2 | ||
| MARK,OVER FENDER,RH | 56054D | 56054-1271 | 1 | ||
| MARK,FR FENDER,K | 56054E | 56054-1274 | 1 | ||
| MARK,FR FENDER,TERYX | 56054F | 56054-1291 | 1 | ||
| PATTERN,SIDE GUARD,LH | 56069 | 56069-3968 | 1 | ||
| PATTERN,SIDE GUARD,RH | 56069A | 56069-3969 | 1 | ||
| PATTERN,DOOR COVER,FR,LH | 56069B | 56069-3970 | 1 | ||
| PATTERN,DOOR COVER,FR,RH | 56069C | 56069-3971 | 1 | ||
| PATTERN,RR FENDER,FR,LH | 56069D | 56069-4114 | 1 | ||
| PATTERN,RR FENDER,FR,RH | 56069E | 56069-4115 | 1 | ||
| PATTERN,RR FENDER,RR,LH | 56069F | 56069-4116 | 1 | ||
| PATTERN,RR FENDER,RR,RH | 56069G | 56069-4117 | 1 |
