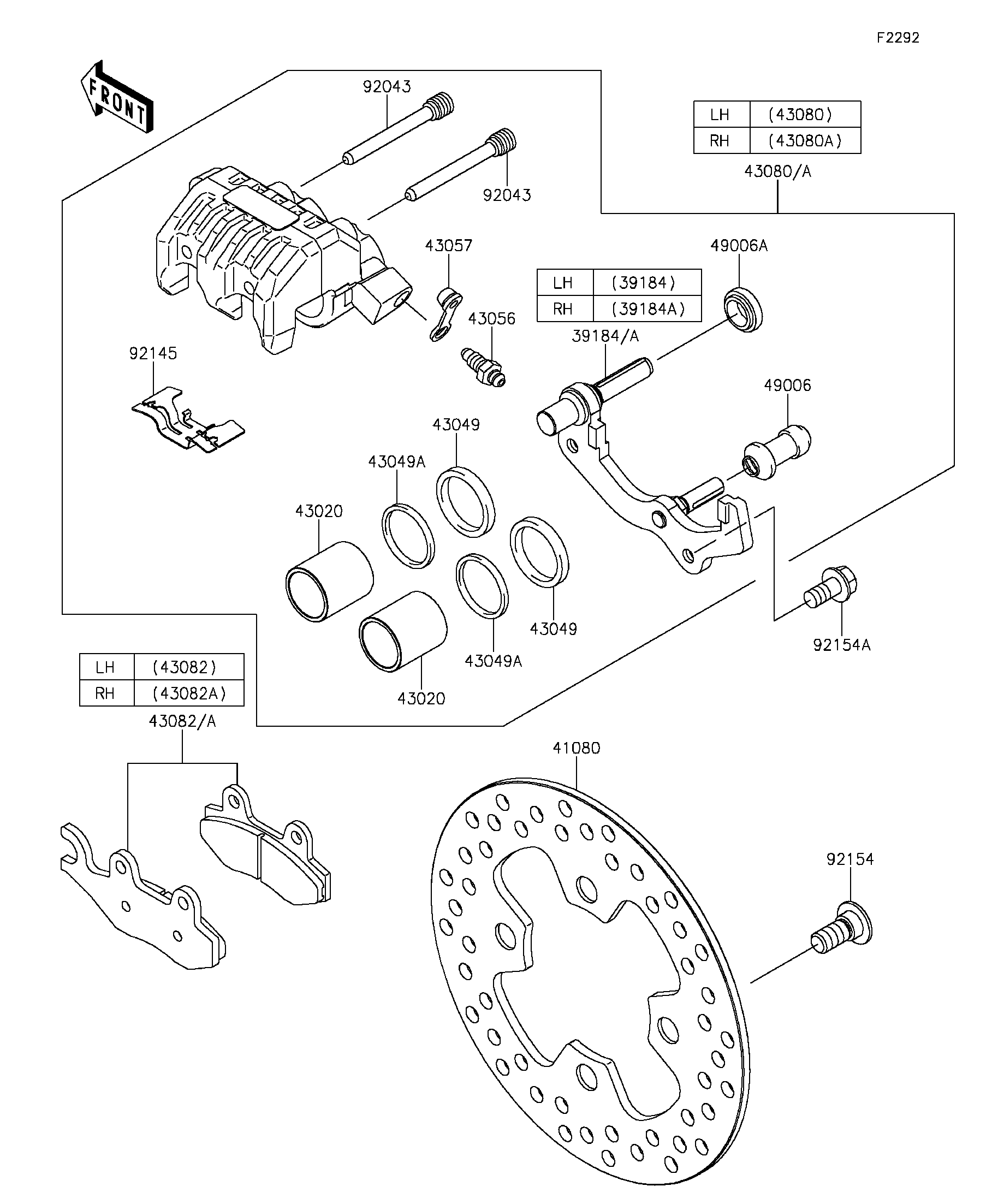

2014 TERYX® - Front Brake

DOWNLOAD PDF
SELECT A NEW PART
39184
39184A
41080
43020
43020
43049
43049
43049A
43049A
43056
43057
43080
43080A
43082
43082A
49006
49006A
92043
92043
92145
92154
92154A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-ASSY,CALIPER,LH 39184 39184-0024 1
BRACKET-ASSY,CALIPER,RH 39184A 39184-0025 1
DISC,FR,200MM 41080 41080-0558 2
PISTON-COMP-BRAKE 43020 43020-0054 4
PACKING 43049 43049-0556 4
PACKING 43049A 43049-0557 4
BREATHER-BRAKE 43056 43056-0055 2
CAP-BREATHER 43057 43057-0552 2
CALIPER-SUB-ASSY,LH 43080 43080-0128 1
CALIPER-SUB-ASSY,RH 43080A 43080-0129 1
PAD-ASSY-BRAKE,LH 43082 43082-0126 1
PAD-ASSY-BRAKE,RH 43082A 43082-0127 1
BOOT 49006 49006-0565 2
BOOT 49006A 49006-0566 2
PIN 92043 92043-0184 4
SPRING 92145 92145-0705 2
BOLT,SOCKET,10X23 92154 92154-0713 8
BOLT,FLANGED,8X16 92154A 92154-1005 4
