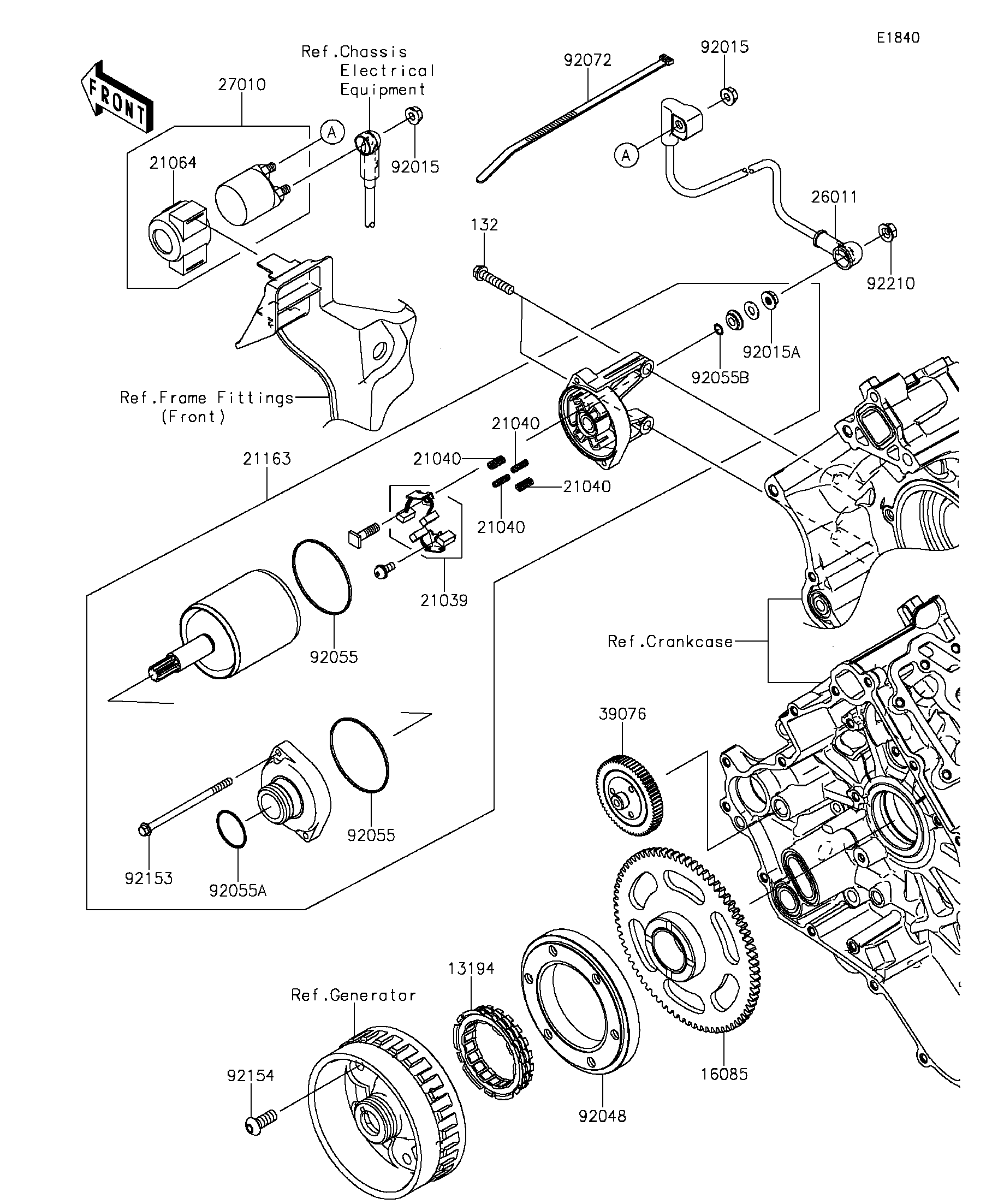

2014 TERYX® - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
13194
16085
21039
21040
21040
21040
21040
21064
21163
26011
27010
39076
92015
92015
92015A
92048
92055
92055
92055A
92055B
92072
92153
92154
92210
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CLUTCH-ONEWAY 13194 13194-1094 1
GEAR,STARTER 16085 16085-0591 1
BRUSH,CARBON 21039 21039-0004 1
SPRING-BRUSH 21040 21040-0003 4
DAMPER,MAGNETIC SWITCH 21064 21064-002 1
STARTER-ELECTRIC 21163 21163-0037 1
WIRE-LEAD,STARTER 26011 26011-0800 1
SWITCH,MAGNETIC 27010 27010-1098 1
LIMITER,STARTER 39076 39076-0555 1
NUT,FLANGED,6MM 92015 92015-1367 2
NUT,STARTER MOTOR 92015A 92015-1476 1
RACE,ONEWAY CLUTCH 92048 92048-0553 1
RING-O 92055 92055-0136 2
RING-O 92055A 92055-1276 1
RING-O,4.5X2.0 92055B 92055-1370 1
BAND,L=292.1 92072 92072-3509 1
BOLT 92153 92153-1850 2
BOLT,TORX,8X20 92154 92154-0421 6
NUT,6MM 92210 92210-0188 1
BOLT-FLANGED-SMALL,6X30 132 132BA0630 2
