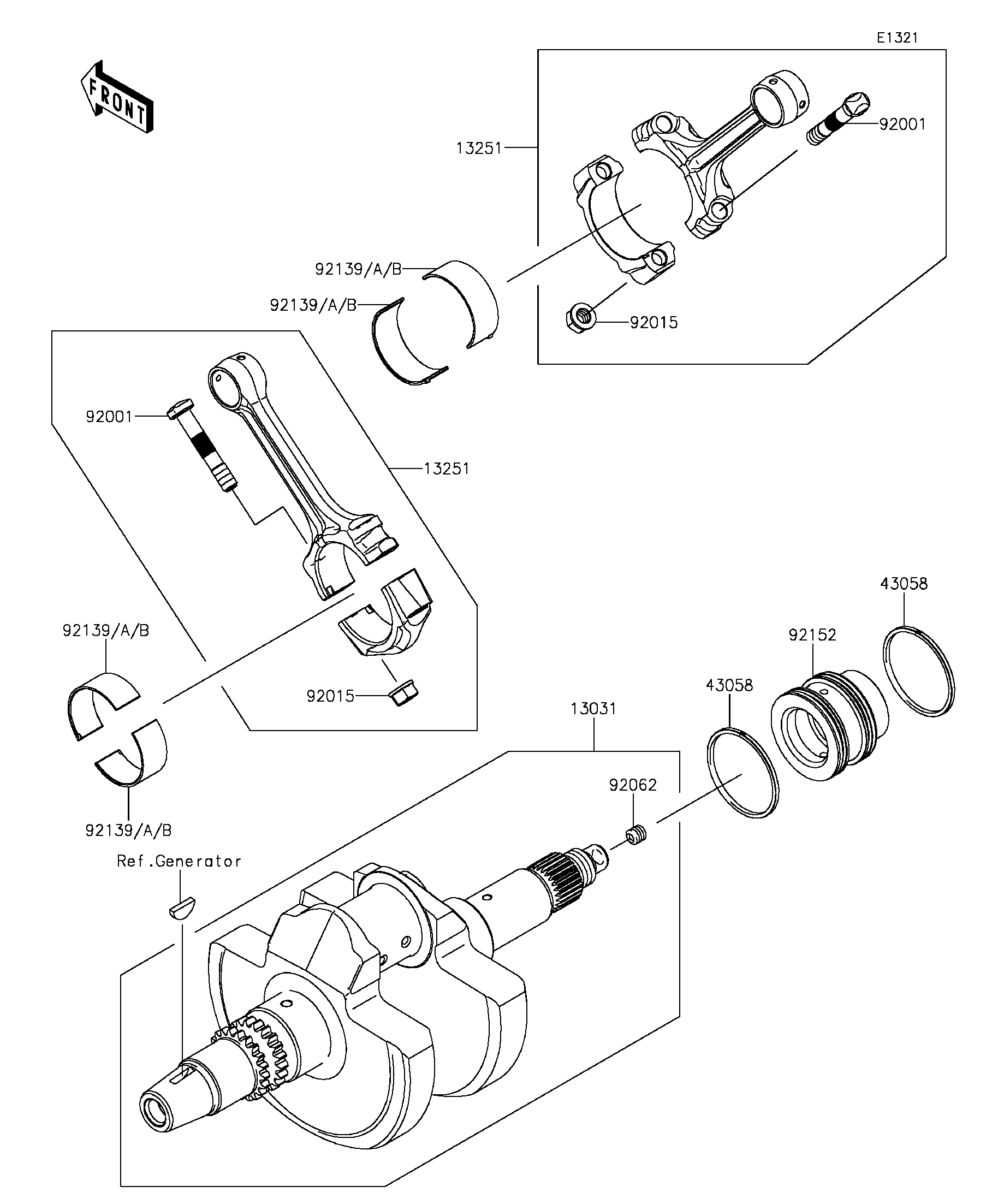

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
13031
13251
13251
43058
43058
92001
92001
92015
92015
92062
92139
92139
92139
92139
92139A
92139A
92139A
92139A
92139B
92139B
92139B
92139B
92152
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CRANKSHAFT-COMP | 13031 | 13031-0762 | 1 | ||
| ROD-ASSY-CONNECTING | 13251 | 13251-0709 | 2 | ||
| RING | 43058 | 43058-0702 | 2 | ||
| BOLT,CONNECTING ROD | 92001 | 92001-1980 | 4 | ||
| NUT,FLANGED,8MM | 92015 | 92015-1311 | 4 | ||
| NOZZLE,8X8,SILVER | 92062 | 92062-1082 | 1 | ||
| BUSHING,CONNECTING ROD,GREEN | 92139 | 92139-0764 | AR | ||
| BUSHING,CONNECTING ROD,YELLOW | 92139A | 92139-0765 | 4 | ||
| BUSHING,CONNECTING ROD,BROWN | 92139B | 92139-0766 | AR | ||
| COLLAR,CRANK-CLUTCH | 92152 | 92152-0956 | 1 |
