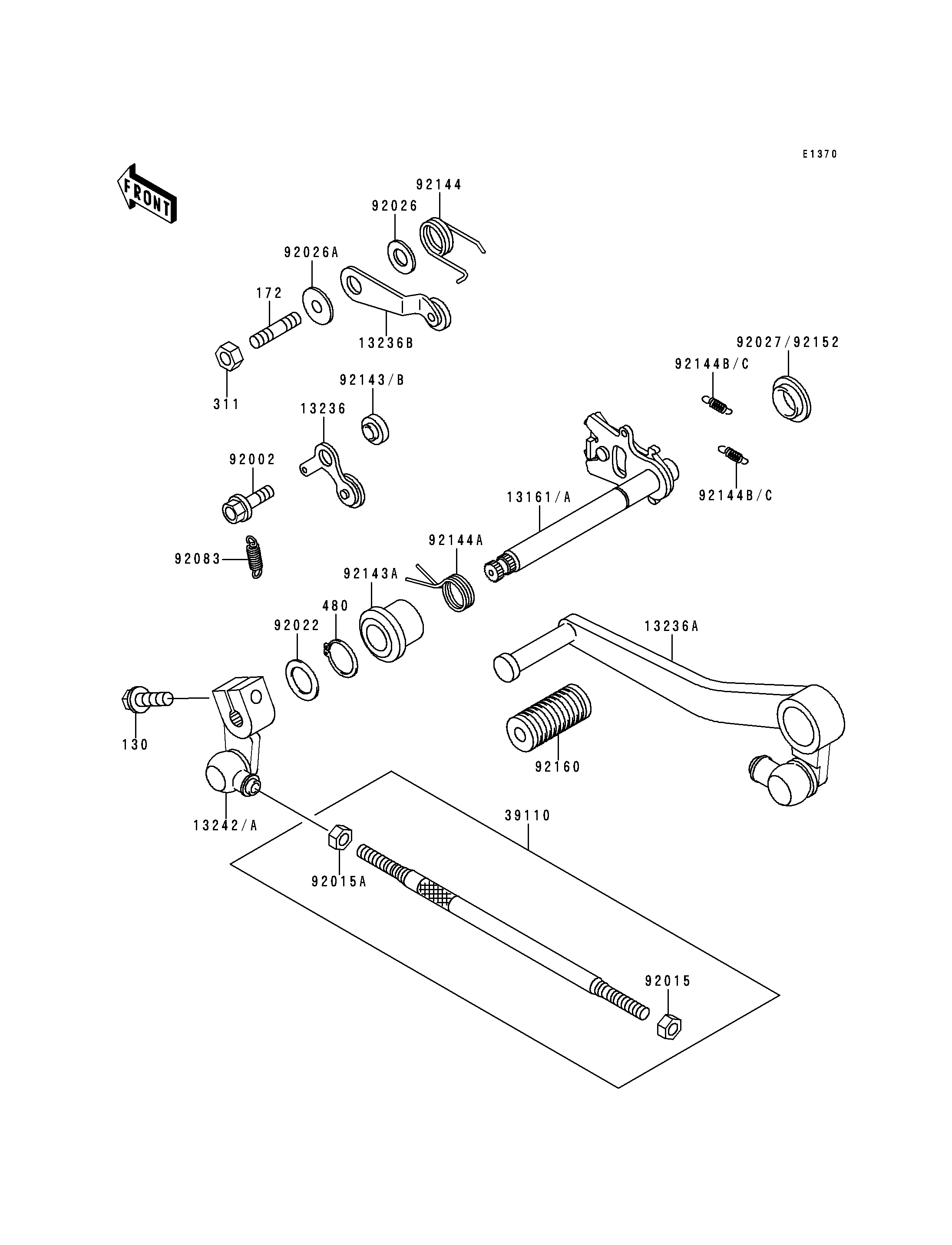

1994 Ninja® ZX™-9R - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
130
172
311
480
13161A
13236
13236A
13236B
13242
39110
92002
92015
92015A
92022
92026
92026A
92027
92083
92143A
92143B
92144
92144A
92144B
92144B
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X20,BLACK 130 130S0620 1
BOLT-STUD,6X14 172 172G0614 1
NUT-HEX,6MM 311 311G0600 1
CIRCLIP-TYPE-C,13MM 480 480J1300 1
LEVER-COMP-CHANGE SHAFT 13161A 13161-1204 1
LEVER-COMP,POSITION 13236 13236-1189 1
LEVER-COMP,CHANGE PEDAL 13236A 13236-1254 1
LEVER-COMP,NEUTRAL POSITION 13236B 13236-1255 1
LEVER-ASSY-CHANGE 13242 13242-1194 1
ROD-ASSY-TIE 39110 39110-1105 1
BOLT,6X16 92002 92002-1571 1
NUT,LH,THREAD 92015 92015-1443 1
NUT,RH,THREAD 92015A 92015-1444 1
WASHER,13.3X20X1 92022 92022-1496 1
SPACER,6.3X12X1.0 92026 92026-094 1
SPACER 92026A 92026-1217 1
COLLAR,CHANGE SHAFT,L=5.5 92027 92027-1512 1
SPRING,CHANGE DRUM LEVER 92083 92083-012 1
COLLAR,RETURN SPRING 92143A 92143-1498 1
COLLAR 92143B 92143-1678 1
SPRING,NEUTRAL POSITION 92144 92144-1030 1
SPRING,CHANGE SHAFT RETURN 92144A 92144-1628 1
SPRING,CHANGE LEVER 92144B 92144-1776 2
DAMPER,CHANGE PEDAL 92160 92160-1036 1
