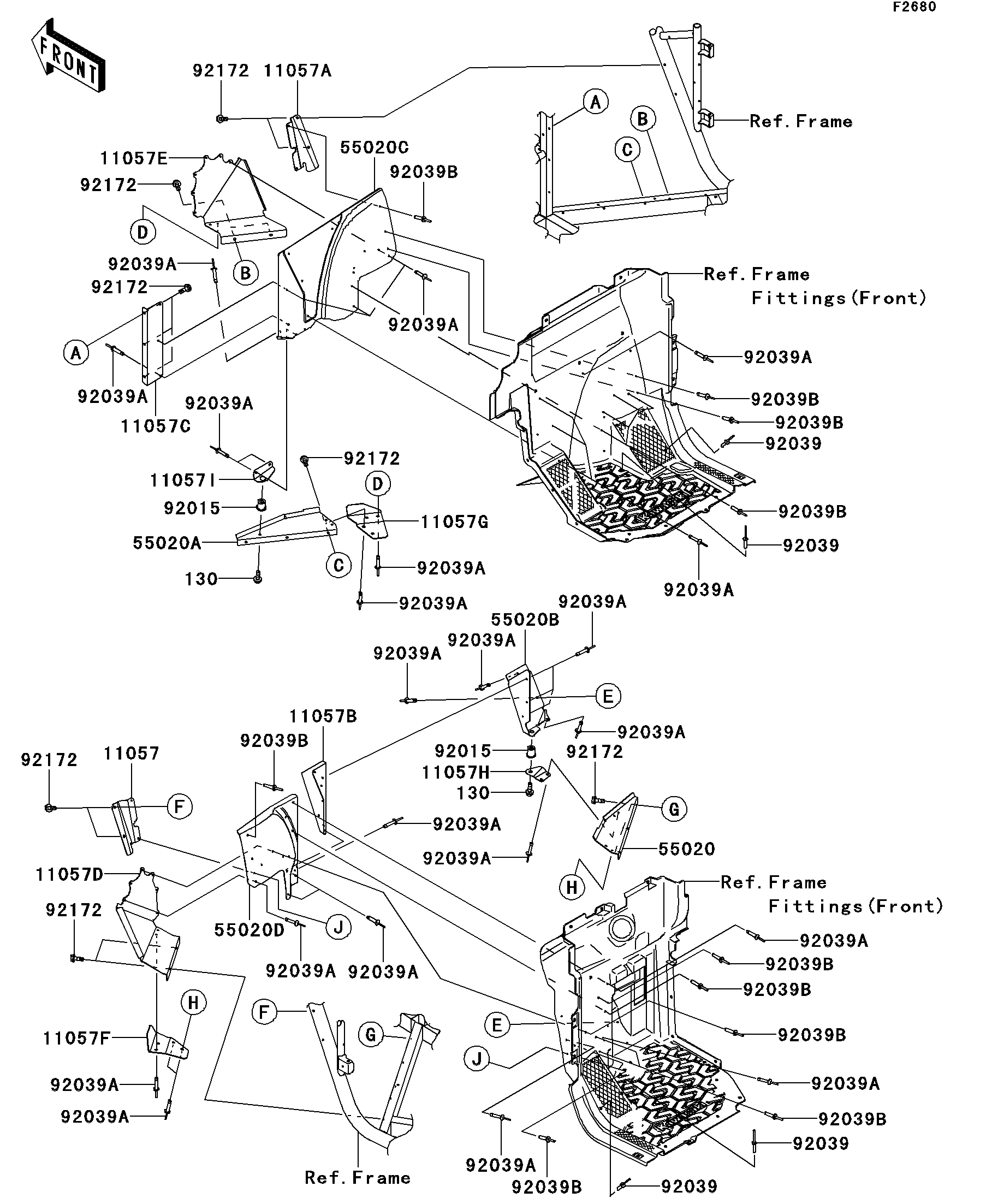

2014 Teryx4 - Guard(s)

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
11057B
11057C
11057D
11057E
11057F
11057G
11057H
11057I
55020
55020A
55020B
55020C
55020D
92015
92015
92039
92039
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92172
92172
92172
92172
92172
92172
92172
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-0343 1
BRACKET 11057A 11057-0344 1
BRACKET 11057B 11057-0345 1
BRACKET 11057C 11057-0346 1
BRACKET 11057D 11057-0347 1
BRACKET 11057E 11057-0348 1
BRACKET 11057F 11057-0349 1
BRACKET 11057G 11057-0350 1
BRACKET 11057H 11057-0351 1
BRACKET 11057I 11057-0352 1
GUARD,FLOOR,LH,IN 55020 55020-1978 1
GUARD,FLOOR,RH,IN 55020A 55020-1979 1
GUARD,FLOOR COVER 55020B 55020-1981 1
GUARD,FLOOR COVER 55020C 55020-1982 1
GUARD,FLOOR COVER 55020D 55020-1983 1
NUT 92015 92015-1700 2
RIVET,4.0X17.5 92039 92039-0703 16
RIVET,4.8X23.3 92039A 92039-0772 35
RIVET 92039B 92039-3778 14
SCREW,TAPPING,6X16 92172 92172-0869 17
BOLT-FLANGED,6X18 130 130BA0618 2
