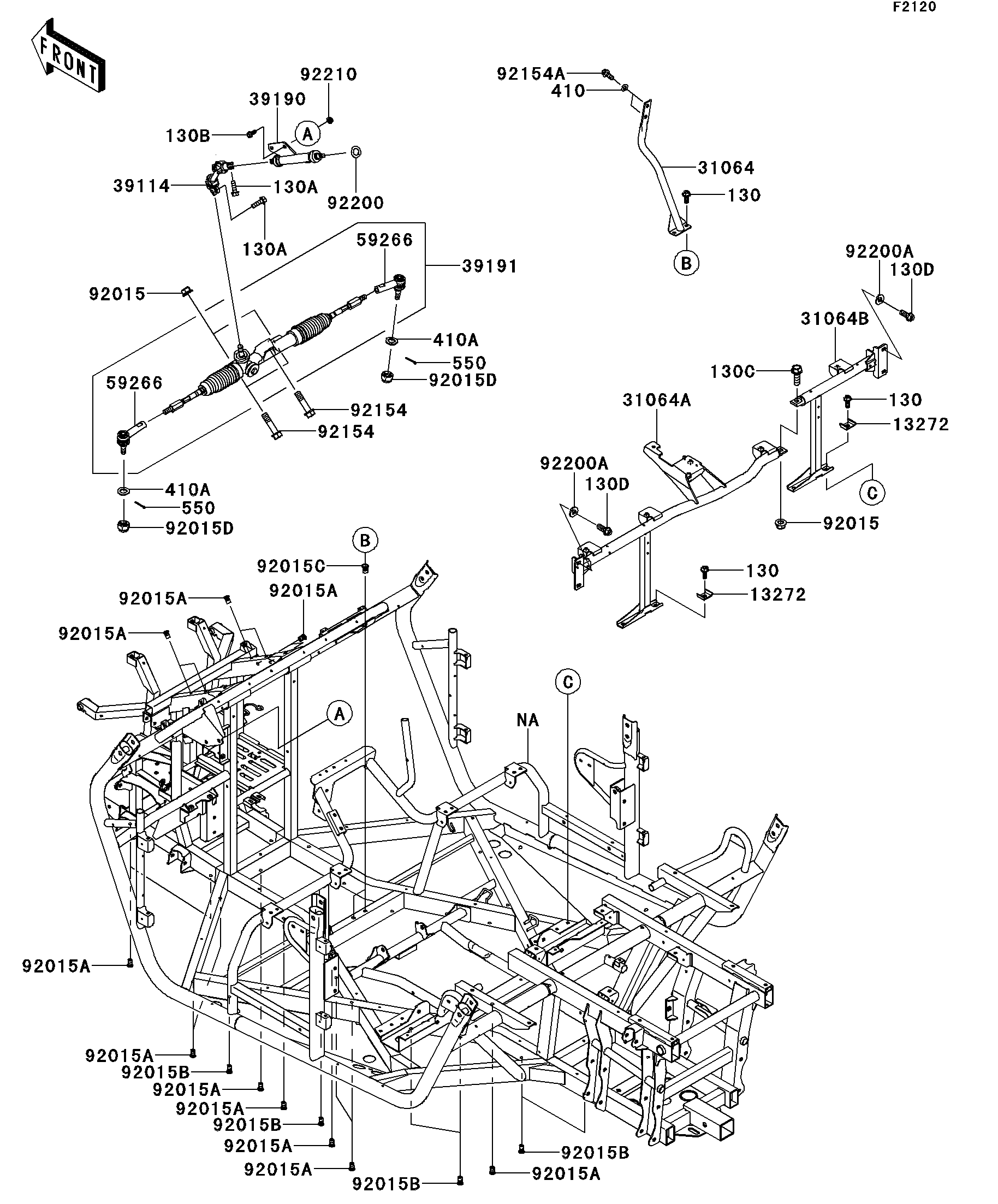

2014 Teryx4 - Frame

DOWNLOAD PDF
SELECT A NEW PART
13272
13272
31064
31064A
31064B
39114
39190
39191
59266
59266
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015B
92015B
92015B
92015B
92015C
92015D
92015D
92154
92154
92154A
92200
92200A
92200A
92210
130
130
130
130A
130A
130B
130C
130D
130D
410
410A
410A
550
550
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE 13272 13272-1336 4
PIPE-COMP 31064 31064-0594 1
PIPE-COMP,SUB FRAME,SEAT,LH 31064A 31064-0624 1
PIPE-COMP,SUB FRAME,SEAT,RH 31064B 31064-0632 1
SHAFT-COMP-STRG 39114 39114-0307 1
SHAFT-ASSY-STEERING 39190 39190-7501 1
GEAR-ASSY-STEERING 39191 39191-0018 1
JOINT-BALL 59266 59266-0706 2
NUT,LOCK,FLANGED,12MM 92015 92015-1433 3
NUT,POP,6MM,L=15 92015A 92015-1791 24
NUT,POP,6MM,L=16.5 92015B 92015-1792 12
NUT,POP,8MM,L=16.5 92015C 92015-1793 2
NUT,CASTLE,14MM 92015D 92015-1841 2
BOLT,FLANGED,12X50 92154 92154-1008 3
BOLT,FLANGED,8X20 92154A 92154-1130 2
WASHER,15X25X1.6 92200 92200-0460 1
WASHER,10.2X23X2.5 92200A 92200-7506 4
NUT,LOCK,FLANGED,10MM 92210 92210-1080 1
BOLT-FLANGED,8X20 130 130BA0820 6
BOLT-FLANGED,8X25 130A 130BA0825 2
BOLT-FLANGED,10X22 130B 130BA1022 2
BOLT-FLANGED,12X35 130C 130BA1235 1
BOLT-FLANGED,10X25 130D 130BB1025 4
WASHER-PLAIN-SMALL,8MM 410 410AA0800 2
WASHER-PLAIN-SMALL,14MM 410A 410AA1400 2
PIN-COTTER,3.0X25 550 550AA3025 2
