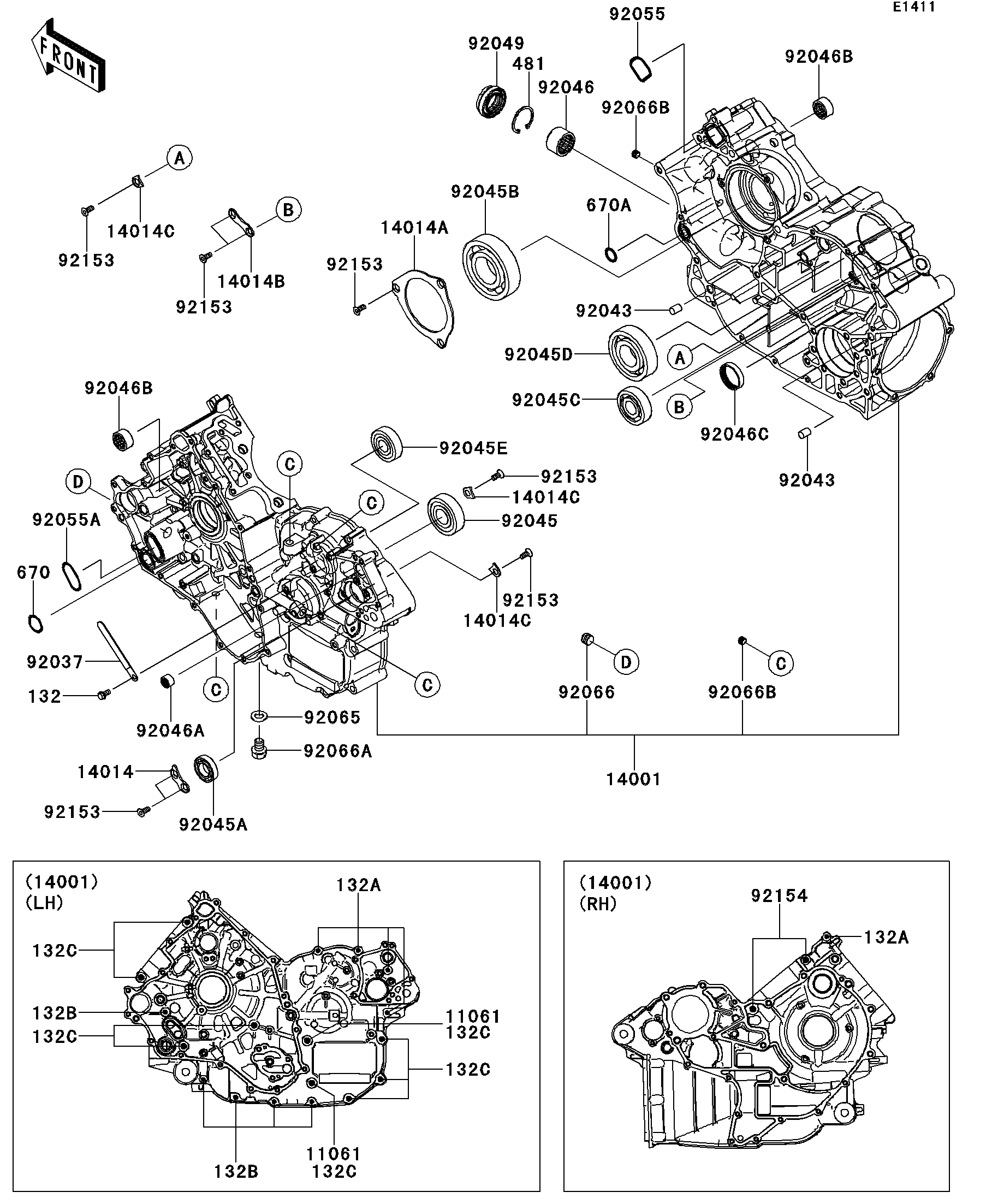

2014 Teryx4 - Crankcase

DOWNLOAD PDF
SELECT A NEW PART
11061
11061
14001
14014
14014A
14014B
14014C
14014C
14014C
92037
92043
92043
92045
92045A
92045B
92045C
92045D
92045E
92046
92046A
92046B
92046B
92046C
92049
92055
92055A
92065
92066
92066A
92066B
92066B
92153
92153
92153
92153
92153
92153
92154
132
132A
132A
132B
132B
132C
132C
132C
132C
132C
481
670
670A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,8.2X15 11061 11061-0727 2
SET-CRANKCASE 14001 14001-0599 1
PLATE-POSITION 14014 14014-0553 1
PLATE-POSITION 14014A 14014-0554 1
PLATE-POSITION 14014B 14014-0555 1
PLATE-POSITION 14014C 14014-0557 3
CLAMP 92037 92037-1993 1
PIN,10X14 92043 92043-1506 2
BEARING-BALL,63/22LUA 92045 92045-0704 1
BEARING-BALL,6904 92045A 92045-0705 1
BEARING-BALL,6308YA3-T2C3 92045B 92045-0706 1
BEARING-BALL,TMB304LUA 92045C 92045-0743 1
BEARING-BALL,63/32C3 92045D 92045-1364 1
BEARING-BALL,6303LUA 92045E 92045-1389 1
BEARING-NEEDLE 92046 92046-0022 1
BEARING-NEEDLE,HK1210FM 92046A 92046-0034 1
BEARING-NEEDLE,BA13178ZE01 92046B 92046-0048 2
BEARING-NEEDLE,7E-HKS33X38X8 92046C 92046-1221 1
SEAL-OIL,25X45X9.5 92049 92049-0739 1
RING-O,33X2.6 92055 92055-0723 1
RING-O,31.2X2.4 92055A 92055-0724 1
GASKET,12X22X2 92065 92065-097 1
PLUG,BREATHER 92066 92066-1035 1
PLUG,OIL DRAIN,12X15 92066A 92066-1174 1
PLUG,PT1/8X7 92066B 92066-1227 5
BOLT,6X11.7 92153 92153-0848 10
BOLT,FLANGED,8X95 92154 92154-0835 2
BOLT-FLANGED-SMALL,6X12 132 132BA0612 1
BOLT-FLANGED-SMALL,6X40 132A 132BD0640 5
BOLT-FLANGED-SMALL,6X55 132B 132BD0655 5
BOLT-FLANGED-SMALL,8X75 132C 132BD0875 9
CIRCLIP-TYPE-C,37MM 481 481J3700 1
O RING,22MM 670 670B2022 1
O RING,16MM 670A 670D2016 1
